High Frequency Electromagnetic Lab Vibration Shaker Table For Random Test
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 3KN | Suitable For: | Max Loading 300kgs Test Items |
| Frequency Range: | 3~3500HZ | Function: | Accelerated Vibration Testing |
| Highlight |
Vibration Shaker Table,High Frequency Vibration Shaker Table,Random Test Shaker Table |
||
Product Description
Vibration testing is the process of exciting or shocking a component or device to observe its reaction under real-world environmental conditions. The high-frequency vibration shaker delivers excitation forces ranging from 3 kN to 50 kN, with a maximum load capacity of 200 kg to 800 kg.
Download: ES-3A Vibration Tester (PDF)- Test Modes: Multiple modes are available and adjustable — sine, random, resonant search and dwell, classical impact, and road simulation.
- Applications: Aviation, aerospace, weapons, ships, communications, automotive, electronics, electrical, home appliances, and other fields.

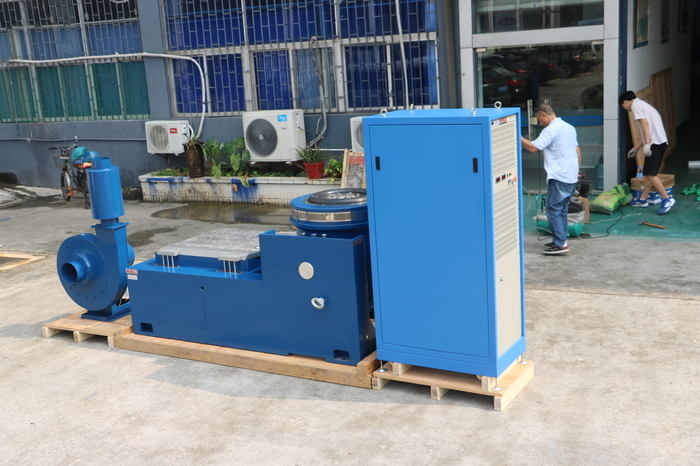

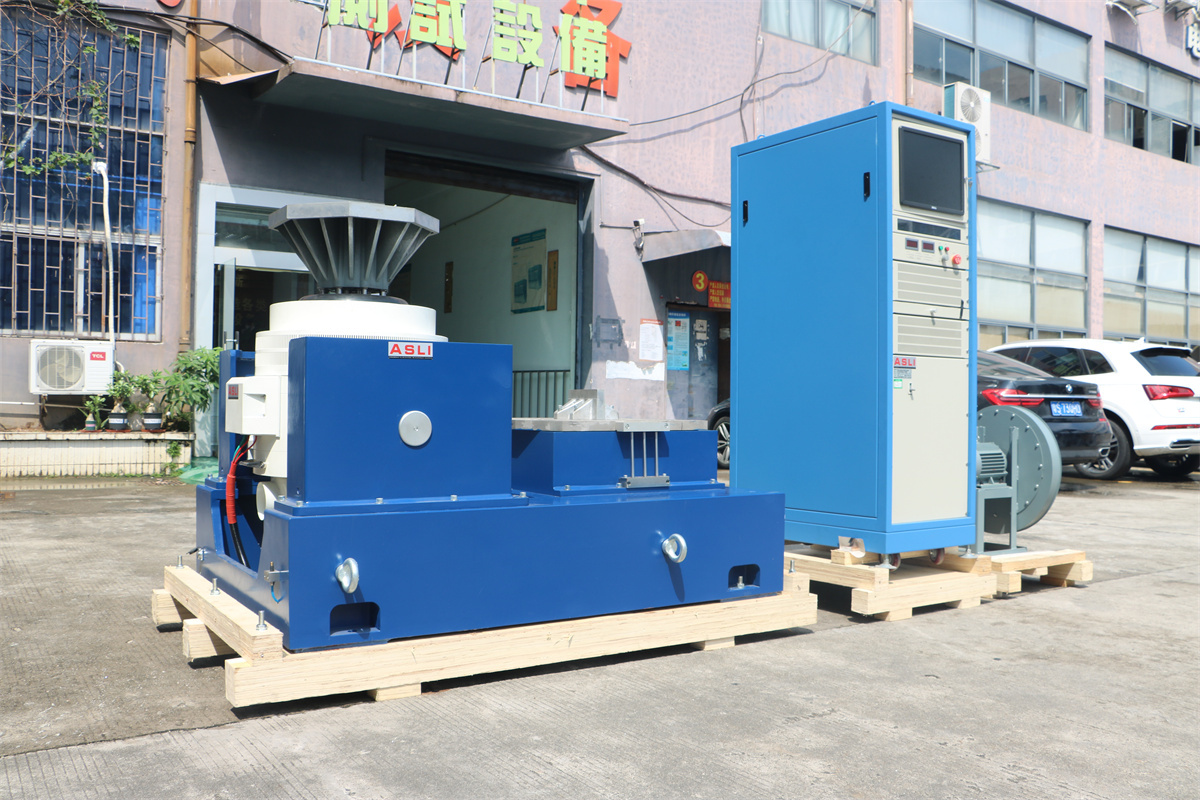

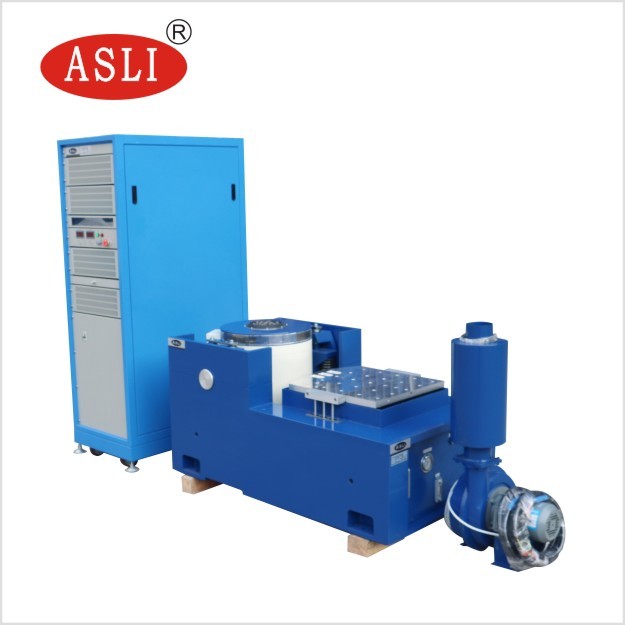

Dynamic shaker table with customized sample fixture.
| System Model | ES-3 |
| Frequency Range (Hz) | 3 – 3500 |
| Rated Force — Sine (N) | 3000 |
| Rated Force — Random (N) | 3000 |
| Rated Force — Shock (N) | 6000 |
| Maximum Acceleration — Sine (m/s²) | 1000 |
| Maximum Acceleration — Random (m/s² rms) | 1000 |
| Maximum Acceleration — Shock (m/s²) | 2000 |
| Maximum Velocity — Sine (m/s) | 1.6 |
| Maximum Velocity — Shock (m/s) | 1.6 |
| Maximum Displacement — Travel (mm p-p) | 25 |
| Moving Coil Mass | 3.5 kg |
| Dimension of Moving Coil | Ø 230 mm |
| Max Load | 100 kg |
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design: low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing are optimized, raising the vibration table capacity and improving low-frequency performance.
