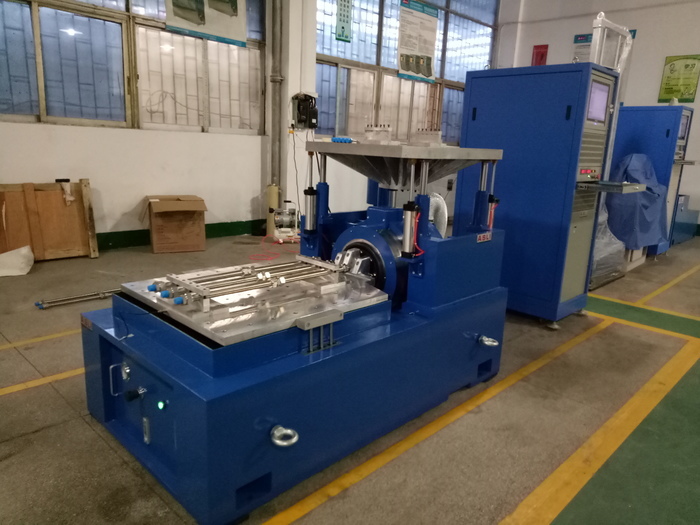

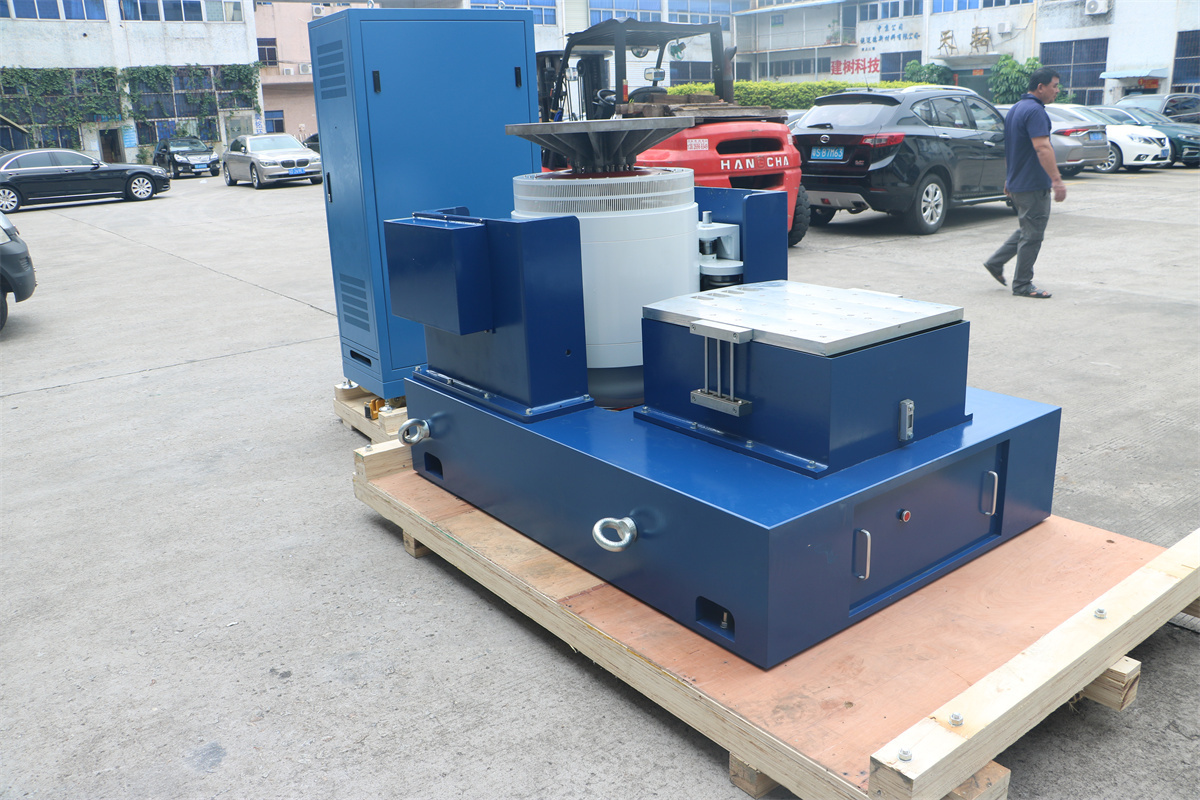

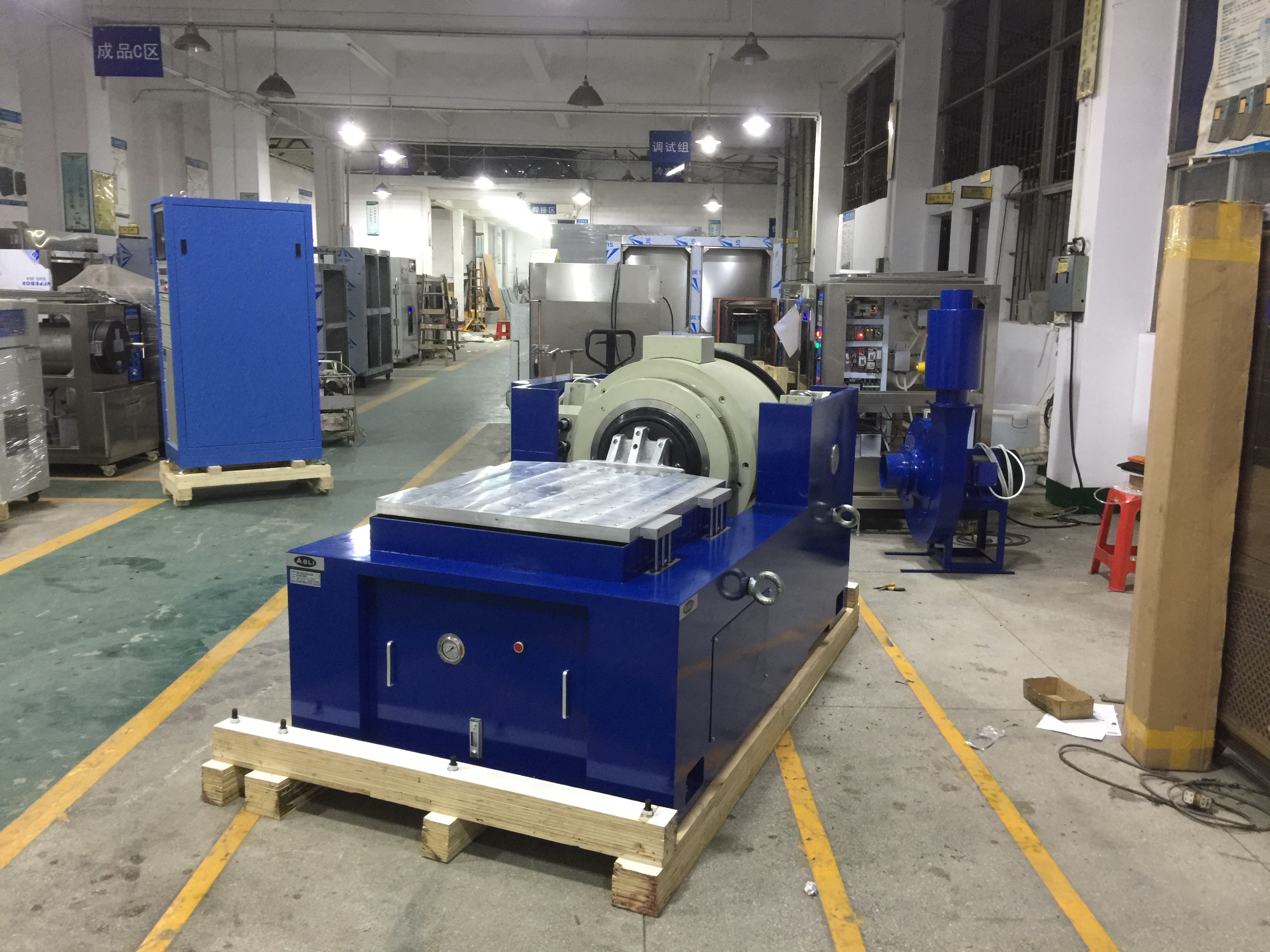

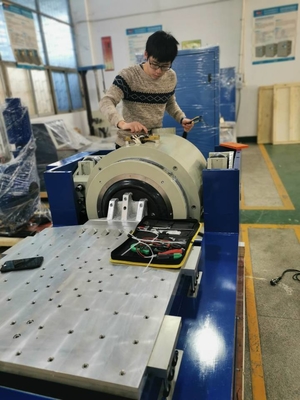

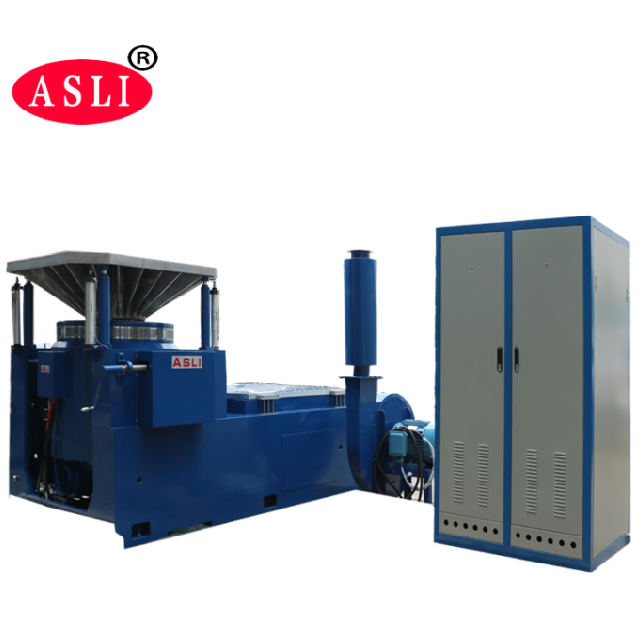

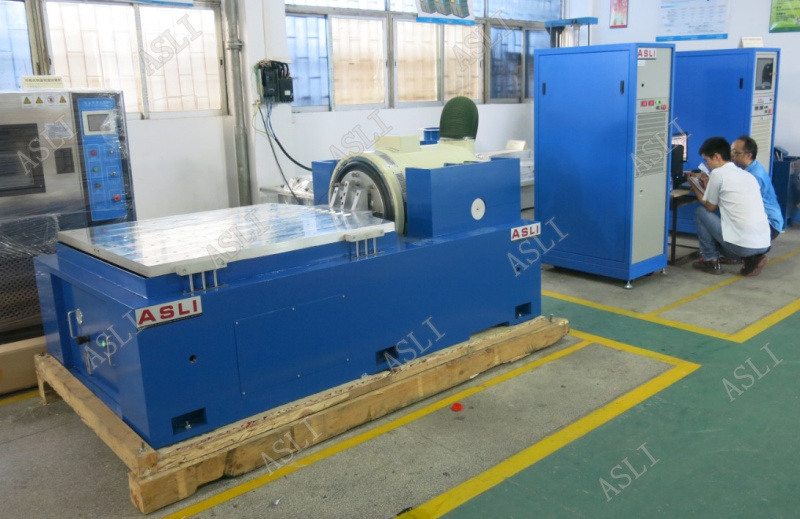

MIL-STD-810H Large Displacement High Frequency Electromagnetic Vibration Testing Machine
Product Details
| Sine Force: | 40KN | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 85mm | Frequency: | 3~2000HZ |
| Loading: | 500kg | Acceleration: | 100g |
| Armature: | 450mm | Table Size: | 1000 X 1000mm |
| Highlight |
Large Displacement Electromagnetic Testing Machines,Electromagnetic Vibration Testing Machine,High Frequency Electromagnetic Testing Machines |
||
Product Description
Download: Vibration Temperature Test Machine THV-Volume (PDF)
A shaker is an electromagnetic device used for vibration testing to excite the structure under test. It is commonly employed for modal analysis or endurance testing. Vibration shakers are available in various designs to suit different testing requirements.
The high-frequency electromagnetic vibration shaker is designed to evaluate resonant frequencies of product and package designs, and to simulate the random vibration that occurs during distribution or in-use environments. The machine is simple to operate and can perform a wide range of vibration tests in accordance with government, industry, and corporate specifications.
- A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console.
- Convenient operation; original refrigerating compressor unit and its main accessories imported from abroad.
- Imported LCD color touch screen controller capable of automatic control of temperature and humidity programs.
- Equipped with RS-232 telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure good cooling performance.
- Heat and air seal system; this vibration bench also boasts remarkable effect of mechanical vibration reliability test equipment and shock vibration.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
The shaker can also be combined with a temperature humidity test chamber for comprehensive environmental testing.
| Model | THV-408(A~F) | |
|---|---|---|
| Internal Dimension | W600 × H850 × D800 (mm) | |
| External Dimension | W850 × H1950 × D2100 (mm) | |
| Temperature Range | Low temperature: (A: 25°C; B: 0°C; C: -20°C; D: -40°C; E: -60°C; F: -70°C) High temperature: 100°C (150°C) | |
| Humidity Range | 20%–98% R.H. (10%–98% R.H. / 5%–98% R.H. is a special optional condition, requires dehumidifier) | |
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity | 0.1°C; 0.1% R.H. / ±2.0°C; ±3.0% R.H. | |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. | |
| Temperature Rising / Falling Speed Rate | Temperature rising approx. 0.1–3.0°C/min / temperature falling approx. 0.1–1.5°C/min (The falling speed rate min. 1.5°C/min is a special optional condition) | |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel; outer box is stainless steel or SEE cold-rolled steel with paint coated. | |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | |
| Cooling System | Wind cooling or water cooling / single segment compressor (-40°C), double segment compressor (-70°C) | |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | |
| Optional Accessories | Inner door with operation hole (optional), recorder (optional), water purifier, dehumidifier | |
| Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition; the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference | |
| Power | AC380V 3 phase 5 lines, 50/60Hz | |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, low magnetic flux leakage, compact structure and rational design.
- Rocker rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system to ensure high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity and improving low-frequency performance.
If you need more details about the MIL-STD-810H Large Displacement High Frequency Electromagnetic Vibration Testing Machine, please feel free to send your inquiry.
