Vertical High Frequency Electrodynamic Vibration Shaker for Plastic Vibration Testing
Product Details
| Vibration Force: | Customized | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | Vertical And Horizontal | Table Size: | Customized |
| Max Load: | 100 Kg | ||
| Highlight |
vertical high frequency vibration shaker,electrodynamic vibration tester for plastic,high frequency vibration testing equipment |
||
Product Description
Vibration testing and data analysis promote a better understanding of machine health, efficiency, and productivity, as well as more accurate estimates and operating schedules. By compiling and collating data from a machine's lifetime of wear and stress into a short period of time, vibration testing provides valuable insights into the working status and condition of machines, structures, and products.

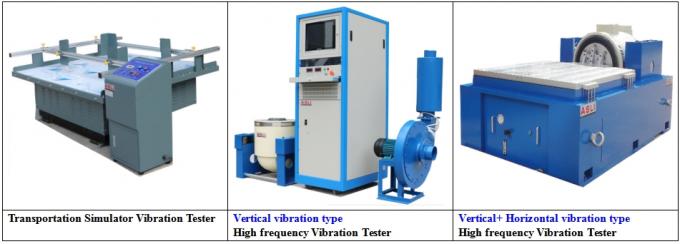

The CE-approved electrodynamic medium-force shaker system is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves industries including aerospace, communications, electronics, electrical, and home appliances. This test platform meets a wide range of specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Flexible suspension system and straight-line guide provide strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, delivering strong bearing capacity and excellent dynamic performance.
- Rapid self-examination diagnostics and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces the vibration wave, and reduces vibration transmission.
- Provides different horizontal and vertical expansion platforms for versatile testing configurations.
- Compatible with all types of vibration controllers for simple operation.
Please feel free to contact us if you have any questions or needs regarding the Vertical High Frequency Electrodynamic Vibration Shaker for Plastic Vibration Testing.
