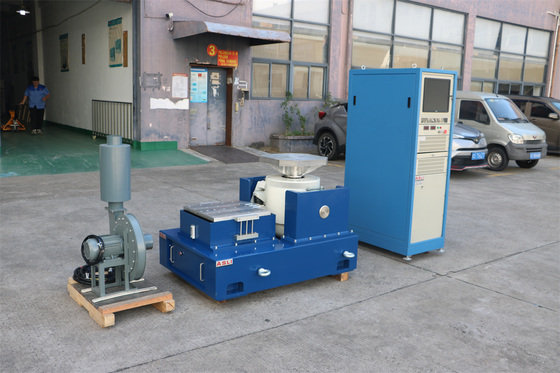

Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed
Product Details
| Frequency Range: | 5Hz To 3500Hz | Max. Acceleration: | 1000m/s2 |
|---|---|---|---|
| Max. Speed: | 1.6m/s | Impact Displacement: | 25mm |
| Moving Coil Weight: | 6.5kg | Vibration Directions: | Vertical & Horizontal |
| Vibration Wave: | Sine, Random, Shock | Moving Coil Size: | Dia. 230 Mm |
| Power Type: | Electronic | Rated Sine Force: | 6000N |
| Rated Random Force: | 6000N | Rated Acceleration: | 1000m/s2 |
| Rated Speed: | 1.6m/s | Rated Displacement: | 25mm |
| Max. Loading: | 180kg | ||
| Highlight |
5Hz to 3500Hz Frequency Range Vibration Shaker System,1000m/s2 Max Acceleration Electrodynamic Vibration Test System,1.6m/s Max Speed Electromagnetic Vibration Shaker Table |
||
Product Description
The Electromagnetic Vibration Shaker Table is engineered to perform sinusoidal vibration tests and broadband random vibration tests independently. It also supports classic pulse testing (half sinusoid, trapezoid, back peak saw tooth) and shock response spectrum testing. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is widely used across national defense, weapon, aviation, spaceflight, communication, electronics, electrical appliance, transportation, and household appliance industries.
According to specific requirements, we can provide users with comprehensive test equipment for multiple environments, including climate and mechanical testing.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |

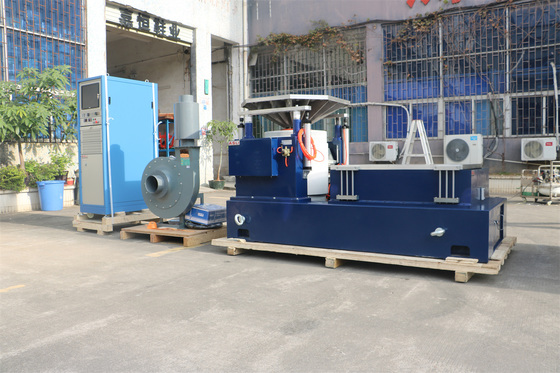

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance, thanks to a perfect structure, high-quality materials, and superior workmanship.
Within a small loading bench, the horizontal expander realizes higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
The horizontal bench and vibration bench are an integral type, featuring a perfect structure and convenient installation and adjustment.
The static pressure track is V-shaped, with the capacity to resist slope and bias loading.
A built-in oil pump provides a good structure and easy operation.
We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
Please don't hesitate to contact us if you have any needs regarding the Electromagnetic Vibration Shaker Table.
Product Highlights
Electromagnetic Vibration Shaker Table delivers 6000N sine/random force, 5-3500Hz, 1000m/s², 180kg load, vertical & horizontal testing. CE certified by a 28-year manufacturer, with custom expanders and 12-month warranty.
