IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
Product Details
| Vibration Direction: | Vertical Vibration | Vibration Force: | 20KN |
|---|---|---|---|
| Control Method: | Computer Control | Acceleration: | 100g |
| Frequency Range: | 3~3500hz | Moving Coil Weight: | 30kg |
| Power Type: | Electronic | Rated Sine Force: | 10000N (ES-10), 20000N (ES-20), 30000N (ES-30), 40000N (ES-40) |
| Frequency Range: | 3-3000Hz (ES-10, ES-20), 3-2800Hz (ES-30, ES-40) | Rated Acceleration: | 1000 M/s2 |
| Rated Speed: | 1.8 M/s | Rated Displacement: | 70mm (ES-10), 80mm (ES-20), 11100mm (ES-30), 100mm (ES-40) |
| Max Loading: | 270kg (ES-10), 300kg (ES-20), 450kg (ES-30), 500kg (ES-40) | Moving Coil Weight: | 14kg (ES-10), 30kg (ES-20), 40kg (ES-30), 50kg (ES-40) |
| Moving Coil Dimension: | Φ240mm (ES-10), Φ320mm (ES-20), Φ450mm (ES-30, ES-40) | ||
| Highlight |
IEC 60068-2-6:2008 Vibration Shaker System,20KN Vibration Force Vibration Shaker System,100g Acceleration High Frequency Vibrating Shaker |
||
Product Description

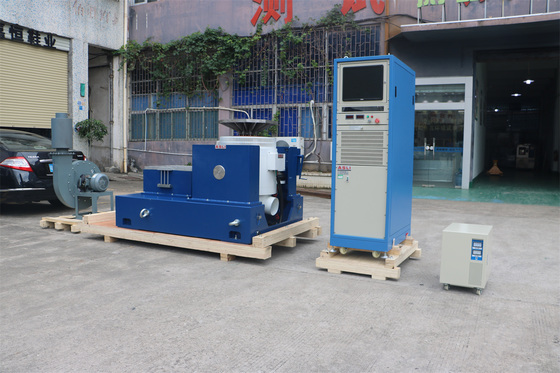

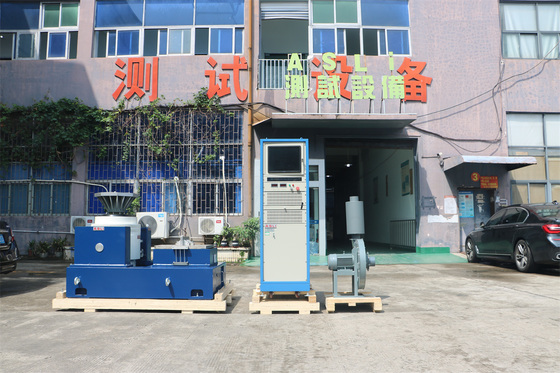

The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It is designed for products in aerospace, communications, electronics, electrical, home appliances, and other industries that require rigorous environmental simulation.
This system serves as a versatile test platform that meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |

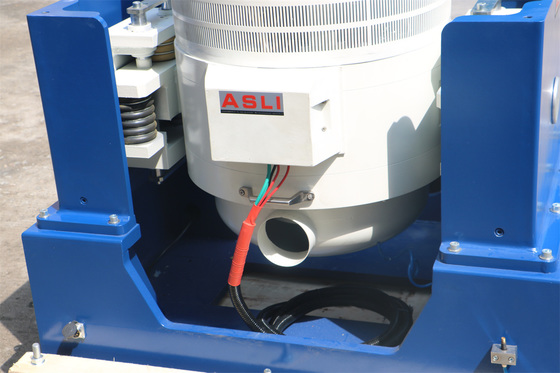

- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, providing strong bearing capacity and excellent dynamic performance.
- Rapid self-examination diagnosis and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces the vibration wave, and reduces vibration transmission.
- Different horizontal and vertical expansion platforms are available for versatile testing setups.
- Compatible with all types of vibration controllers for simple, straightforward operation.
- Within a small loading bench, higher acceleration and working frequency are achieved, improving the loading capacity and overall performance of the machine bench.
- The horizontal bench and vibration bench are an integral type with a robust structure, making installation and adjustment convenient.
- Static pressure track with V-shape design provides slope-resistant and bias-loading resistant capacity.
- Built-in oil pump offers a well-structured design and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is one of our star products, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DAP, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please feel free to contact us.
