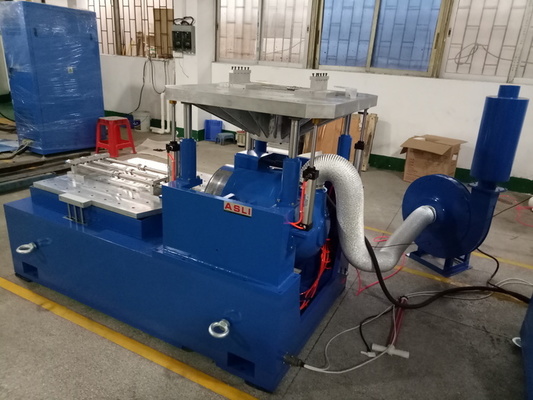

ANSI C136.31-2018 High Frequency Vibration Shaker System with 10000N Sine Force and 1 Year Warranty

Brand Name: ASLI
Model Number: ES-10
Place of Origin: Guangdong, China
Certification: CE,Third party calibration qualification report
Minimum Order Quantity: 1

Product Details


Sine Force: 10000N Vibration Wave: Sine, Random, Shock
Vibration Directions: Three Directions Free Vibration Acceleration Sensor: 1 Pc
Input Channel: 1 Channel Rated Random Force: 10000N
Frequency Range: 3-3000Hz Rated Acceleration: 1000m/s2
Rated Speed: 1.8m/s Rated Displacement: 51mm
Max Loading: 270Kg Moving Coil Weight: 14Kg
Moving Coil Dimension: Φ240mm Dynamic Circle Resonance: Higher Stage Axial Resonance Frequency
Magnetic Flux Leakage: Low
Highlight

ANSI C136.31-2018 Vibration Shaker System

,

10000N Sine Force Vibration Test Equipment

,

1 Year Warranty Electrodynamic Shaker

Product Description

Product Description

The ANSI C136.31-2018 High Frequency Vibration Test Equipment is engineered to deliver precise, reliable vibration testing for a wide range of industrial and electronic applications. Below are the detailed supplier parameters for our vibration test systems.

Vibration Test Equipment Supplier Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Technical parameters diagram of vertical expander for vibration test equipment
Technical Parameters of Horizontal Expander
Technical parameters diagram of horizontal expander for vibration test equipment
ANSI C136.31-2018 High Frequency Vibration Test Equipment Specifications
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational design.
  3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
  5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
  6. New duct design and enhance the cooling effect.
  7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Detailed Images
Detailed view of vibration test equipment assembly Close-up of vibration test equipment moving coil and armature Vibration test equipment control panel and interface Vibration test system with vertical expander installed Vibration test equipment trunnion isolation foundation detail Complete high frequency vibration test equipment setup
Other Products
Climatic chamber product from ASLI Temperature and humidity chamber product from ASLI Thermal shock chamber product from ASLI UV aging chamber product from ASLI
Our Company
ASLI factory and manufacturing facility for environmental test equipment

ASLI main products include: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, mechanical low frequency vibration test equipment, mechanical shock tester, climatic combined vibration chamber, and more.

Packing & Delivery
Packing and delivery preparation for vibration test equipment
Our Service
ASLI customer service and support team
FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about ANSI C136.31-2018 high frequency vibration test equipment, please don't hesitate to send your inquiry.

Product Highlights

ANSI C136.31-2018 high frequency vibration test equipment delivers 10000N sine/random force, 3-3000Hz, three-direction vibration, 270Kg max load. Features low magnetic flux leakage, advanced cooling, high reliability. Ideal for durable, efficient industrial testing.
