Electromagnetic Vibration Table and Vibration Shaker System with 10KN Vibration Force ISO 16750-03 and IEC 60068-2 Test Standards
Product Details
| Vibration Force: | 10KN | Vibration Direction: | Vertical + Horizontal |
|---|---|---|---|
| Acceleration: | 100g | Moving Coil Size: | Dia. 240mm |
| Displacement: | 51mm | Frequency Range: | 3-3500Hz |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.6m/s |
| Max Loading: | 300Kg | Moving Coil Weight: | 30Kg |
| Table Size: | Customized | Power Type: | Electronic |
| Rated Sine Force: | 20000N | Rated Displacement: | 51mm |
| Moving Coil Dimension: | Φ320mm | ||
| Highlight |
10KN Vibration Force Electromagnetic Vibration Table,ISO 16750-03 Test Standard Vibration Shaker System,IEC 60068-2 Test Standard Vibration Test Equipment |
||
Product Description

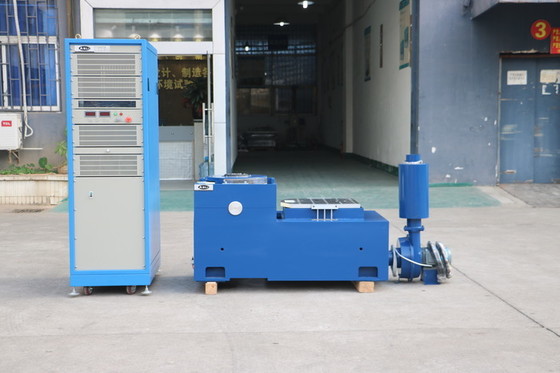

The Electromagnetic Vibration Table for Vibration Test adopts advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. This equipment is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | ES-6 | ES-6a | ES-10 | ES-20 |
|---|---|---|---|---|
| Rated Sine Force (N) | 6000 | 6000 | 10000 | 20000 |
| Frequency Range (Hz) | 3–3500 | 3–3500 | 3–3000 | 3–3000 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.6 | 1.6 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 25 | 51 | 51 | 51 |
| Max. Loading (Kg) | 180 | 250 | 270 | 300 |
| Moving Coil (Kg) | 6.5 | 12 | 14 | 30 |
| Dimension of Moving Coil (mm) | Φ230 | Φ230 | Φ240 | Φ320 |
| Vibration Direction | Vertical, horizontal, Vertical + horizontal vibration | |||
The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.
- Within a small loading bench, higher acceleration and working frequency are realized, improving the loading capacity and performance of the whole machine bench.
- The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump, good structure, and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vibration testing machine for packages and cartons is one of our star products, and we have obtained CE certification for this machine.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vibration testing machine for packages and cartons is one of our star products, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DAP, DDU, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Product Highlights
Electromagnetic Vibration Table delivers 10KN force, 3-3500Hz, 100g acceleration, 300Kg load, and X/Y/Z three-axis testing. Features double-magnetic circuit, air suspension, and trunnion isolation for durability and precision. Custom table sizes available. CE certified, ideal for aerospace, defense, and electronics.
