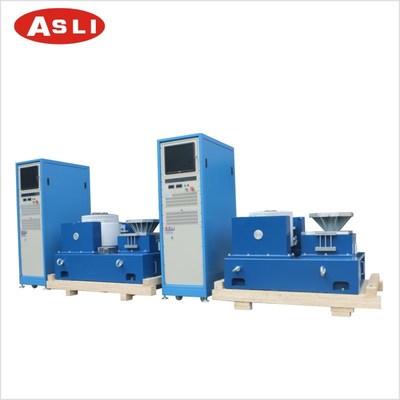

Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration
Product Details
| Frequency Range: | 5Hz To 3500Hz | Max. Acceleration: | 1000m/s2 |
|---|---|---|---|
| Max. Speed: | 1.6m/s | Impact Displacement: | 25mm |
| Moving Coil Weight: | 6.5kg | Vibration Directions: | Vertical & Horizontal |
| Vibration Wave: | Sine, Random, Shock | Moving Coil Size: | Dia. 230 Mm |
| Power Type: | Electronic | Rated Sine Force: | 6000N |
| Rated Random Force: | 6000N | Rated Acceleration: | 1000m/s2 |
| Rated Speed: | 1.6m/s | Rated Displacement: | 25mm |
| Max. Loading: | 180kg | ||
| Highlight |
1 Year Warranty Vibration Tester,5Hz to 3500Hz Frequency Range Vibration Shaker System,1000m/s2 Max Acceleration Vibration Test Equipment |
||
Product Description
The Carton Package Shipping Transport Simulation Vibration Tester is engineered to perform sinusoidal vibration tests and broadband random vibration tests independently. It also supports classic pulse testing (half sinusoid, trapezoid, and back peak saw tooth) as well as shock response spectrum testing. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is widely used across national defense, weapon, aviation, spaceflight, communication, electronics, electrical appliance, transportation, and household appliance industries. It can be configured to provide users with comprehensive test equipment for multiple environments, including climate and mechanical conditions.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.
The horizontal expander uses a small loading bench to realize higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench. The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment. It features a static pressure track in a V-shape with capacity for slope-resistant and bias-loading resistant operation. The built-in oil pump provides a good structure and easy operation.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
Please don't hesitate to contact us if you have any needs regarding the Carton Package Shipping Transport Simulation Vibration Tester.
Product Highlights
ES-6 vibration tester: 6000N force, 5-3500Hz, 1000m/s², 180kg load. Runs sine, random, shock tests vertically/horizontally, with climate chamber integration. CE certified, 28-year manufacturer, 12-month warranty, custom expanders available.
