Laboratory Air Cooling Electrodynamics Shaker with 10KN Vibration Force and ISO 16750-03 IEC 60068-2 Test Standards
Product Details
| Vibration Force: | 10KN | Vibration Direction: | Vertical + Horizontal |
|---|---|---|---|
| Acceleration: | 100g | Moving Coil Size: | Dia. 240mm |
| Displacement: | 51mm | Frequency Range: | 3-3000Hz |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.8m/s |
| Max Loading: | 270Kg | Moving Coil Weight: | 14Kg |
| Rated Sine Force: | 10000N | Power Type: | Electronic |
| Table Size: | Customized | Test Standards: | ISO 16750-03, IEC 60068-2 |
| Vibration Axes: | X, Y, Z | ||
| Highlight |
10KN Vibration Force Electrodynamics Shaker,ISO 16750-03 Test Standard Vibration Shaker System,IEC 60068-2 Test Standard Vibrating Table |
||
Product Description
The Laboratory Air Cooling Electrodynamics Shaker Vibrating Table is engineered with advanced technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. This system performs sinusoidal vibration tests across X, Y, and Z axes, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum testing.
It is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | ES-6 | ES-6a | ES-10 | ES-20 |
|---|---|---|---|---|
| Rated Sine Force (N) | 6000 | 6000 | 10000 | 20000 |
| Frequency Range (Hz) | 3–3500 | 3–3500 | 3–3000 | 3–3000 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.6 | 1.6 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 25 | 51 | 51 | 51 |
| Max. Loading (Kg) | 180 | 250 | 270 | 300 |
| Moving Coil (Kg) | 6.5 | 12 | 14 | 30 |
| Dimension of Moving Coil (mm) | Φ230 | Φ230 | Φ240 | Φ320 |
| Vibration Direction | Vertical, horizontal, Vertical + horizontal vibration | |||

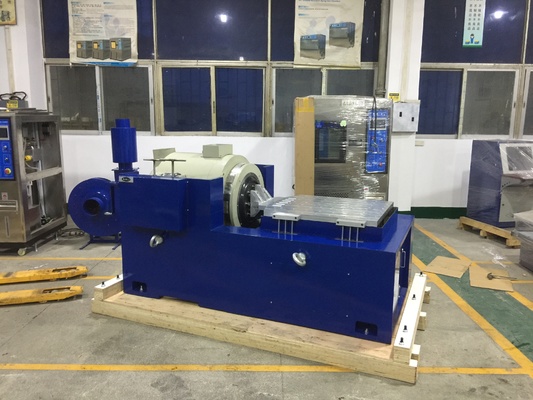

The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the best performance through a perfect structure, high-quality materials, and superior workmanship.
- Small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.
- Horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape, with capacity for slope-resistant and bias-loading resistant operation.
- Built-in oil pump with a good structure for easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.
Q1. What are your terms of packing?
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CIF, DAP, DDU, DDP.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Laboratory Air Cooling Electrodynamics Shaker Vibrating Table, please don't hesitate to contact us.
Product Highlights
Laboratory Air Cooling Electrodynamics Shaker Vibrating Table delivers 10KN force, 3-3000Hz, X/Y/Z three-axis testing, max load 270Kg. Complies with ISO 16750-03 and IEC 60068-2. Custom table sizes available. Ideal for aerospace, electronics, and defense vibration testing.
