10KN Vibration Testing Machine with 100g Acceleration for ISO 16750-03 Sine Sweep Vibration Shaker System
Product Details
| Vibration Force: | 10KN | Vibration Direction: | Vertical + Horizontal |
|---|---|---|---|
| Acceleration: | 100g | Moving Coil Size: | Dia. 240mm |
| Displacement: | 51mm | Frequency Range: | 3-3000Hz |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.8m/s |
| Max Loading: | 270Kg | Moving Coil Weight: | 14Kg |
| Rated Sine Force: | 10000N | Power Type: | Electronic |
| Table Size: | Customized | Test Standards: | ISO 16750-03, IEC 60068-2 |
| Moving Coil Dimension: | Φ240mm | ||
| Highlight |
10KN Vibration Testing Machine,100g Acceleration Vibration Shaker System,ISO 16750-03 Vibration Tester |
||
Product Description
The Vertical Vibration Testing Machine for Sine Sweep Vibration Testing adopts advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
This equipment is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | ES-6 | ES-6a | ES-10 | ES-20 |
|---|---|---|---|---|
| Rated Sine Force (N) | 6000 | 6000 | 10000 | 20000 |
| Frequency Range (Hz) | 3–3500 | 3–3500 | 3–3000 | 3–3000 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.6 | 1.6 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 25 | 51 | 51 | 51 |
| Max. Loading (Kg) | 180 | 250 | 270 | 300 |
| Moving Coil (Kg) | 6.5 | 12 | 14 | 30 |
| Dimension of Moving Coil (mm) | Φ230 | Φ230 | Φ240 | Φ320 |
| Vibration Direction | Vertical, horizontal, Vertical + horizontal vibration | |||

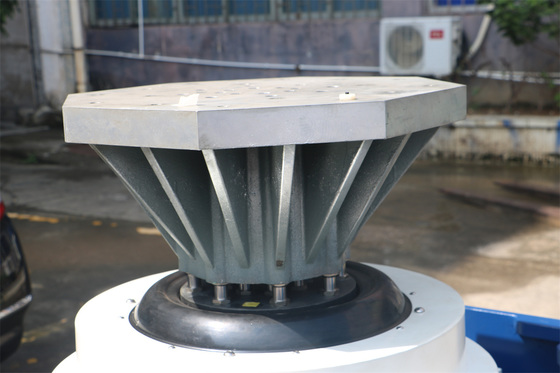

The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.
- Within a small loading bench, it realizes higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.

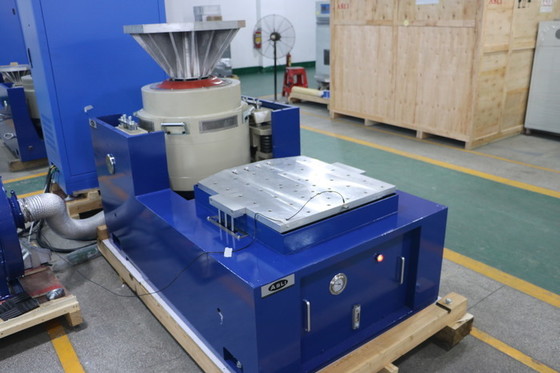

- The horizontal bench and vibration bench are an integral type, featuring a perfect structure and convenient installation and adjustment.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump, good structure, and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.
Our drop test machines are designed for precise and reliable simulation of free-fall impacts, ensuring product packaging integrity and compliance with international standards.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DAP, DDU, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Product Highlights
10KN vertical vibration testing machine for sine sweep tests. Features 3-3000Hz range, 100g acceleration, 270Kg load, and 51mm displacement. Complies with ISO 16750-03 and IEC 60068-2. Custom table sizes available for defense, aerospace, and electronics applications.
