Electro-dynamic Vibration Table with 6000N Vibration Force 3 Axis Direction and 100g Acceleration for Laboratory Testing

Brand Name: ASLI
Model Number: ES-6
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Vibration Force: 6000N Vibration Direction: 3 Axis
Acceleration: 100g Frequency Range: 3~3500Hz
Moving Coil Weight: 6.5kg Rated Speed: 1.8m/s
Max Displacement: 51mm P-P Rated Sine Force: 6000N
Rated Random Force: 6000N Rated Acceleration: 1000m/s²
Rated Displacement: 25mm P-P Max Loading: 180kg
Moving Coil Dimension: Φ230mm Low Frequency: 2Hz
Power Type: Electronic
Highlight

6000N Vibration Force Electro-dynamic Vibration Table

,

3 Axis Vibration Direction Vibration Shaker System

,

100g Acceleration Vibration Test Equipment

Product Description

Product Overview

Test Standard: ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, etc.

The Electro-dynamic Vibration Table for Vibration Test is designed for discovering early faults, simulating actual working conditions, and conducting structure strength tests. Its broad application range delivers remarkable and reliable test results. It supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control. Full computer control is available, along with simple fixed acceleration and fixed amplitude modes. The equipment has undergone continuous failure-free testing for 3 months, ensuring stable performance and reliable quality.

Key Features
  • Large loading capacity with a maximum displacement of 51 mm (p-p) and a low working frequency of 2 Hz.
  • Meets the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for the basic testing of international transport packages.
  • The table body is guided by hydraulic wheels and linear bearings with low axial rigidity.
  • Air spring support provides large load capacity, excellent low-frequency characteristics, and high stability.

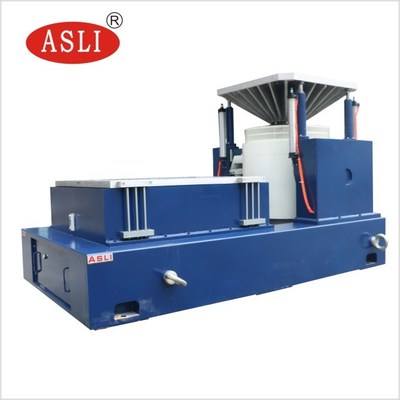

Electro-dynamic vibration table with hydraulic wheel guidance and air spring support system
Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ 230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3–2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3–2500 1000 1.8 51 1000 90 Φ450
Additional Features
  1. The base of the machine is made of high-quality materials, easy to install and runs smoothly.
  2. Multiple functions including frequency modulation, frequency sweeping, programmable amplitude modulation, and time control.
  3. Strong anti-magnetic and anti-interference ability; safe and reliable protection.
  4. Computer connecting line control with immediate material storage.
  5. Low resistance and high-performance design, delivering high efficiency at low cost.
  6. High reliability with low fault rate.
  7. Best after-sales service: one year free parts maintenance.
  8. Customization is available and welcomed.
Close-up view of the electro-dynamic vibration table control system and connection ports

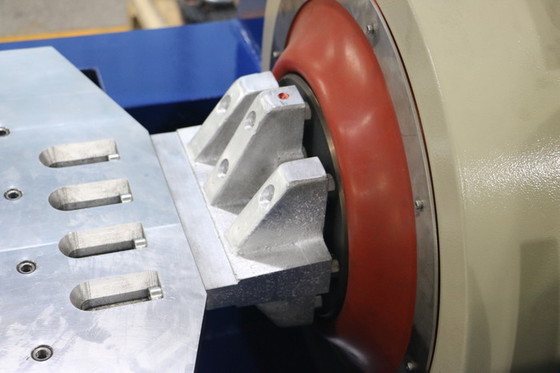

Detailed diagram of the vibration table's hydraulic wheel and linear bearing guidance mechanism
Packing & Delivery

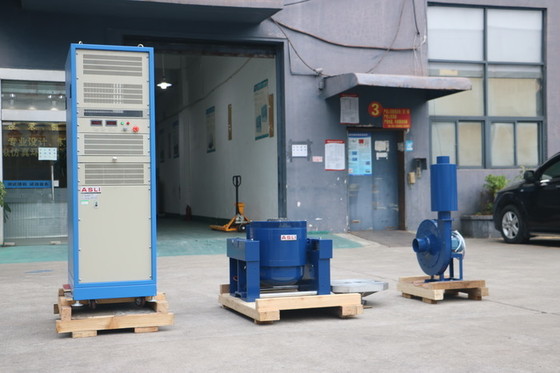

Professional packaging of the electro-dynamic vibration table for safe transportation

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile

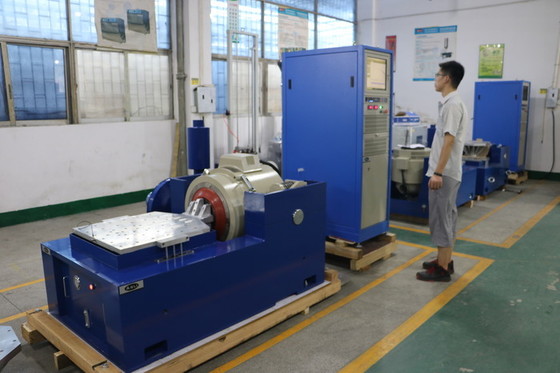

ASLi (China) Test Equipment Co., Ltd facility and testing laboratory

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

Frequently Asked Questions
Q1: Are you a trading company or a factory?

A: Factory + trade (integration). We have our own factory.

Q2: Do you accept customization service?

A: Yes, we can not only offer standard machines but also customized machines according to your request. We will design until you are satisfied.

Q3: What is your product warranty?

A: 1-year warranty, but lifetime for services.

Q4: How about the product quality?

A: Our products apply to ISO, ASTM, GB, MIL-STD, etc.

If you need more information about the Electro-dynamic Vibration Table for Vibration Test, please don't hesitate to send your inquiry.

Product Highlights

ES-6 electro-dynamic vibration table: 6000N force, 3-axis, 3-3500Hz, 100g acceleration, 180kg load, 51mm displacement. Meets ISO, CE, IEC standards. Features air spring support, low 2Hz frequency, computer control, and customizable options. Reliable, efficient, stable performance.
