Electromagnetic High Frequency Vibration Test Machine with 20KN Force and ISTA 3A Compliance for Packaged Product Testing

Brand Name: ASLI
Model Number: ES-20
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $26,890

Product Details


Vibration Direction: Vertical Vibration Vibration Force: 20KN
Control Method: Computer Control Acceleration: 100g
Frequency Range: 3~3500hz Moving Coil Weight: 30kg
Power Type: Electronic Rated Sine Force: 10000N (ES-10), 20000N (ES-20), 30000N (ES-30), 40000N (ES-40)
Rated Acceleration: 1000 M/s2 Rated Speed: 1.8 M/s
Rated Displacement: 70mm (ES-10), 80mm (ES-20), 11100mm (ES-30), 100mm (ES-40) Max Loading: 270kg (ES-10), 300kg (ES-20), 450kg (ES-30), 500kg (ES-40)
Moving Coil Weight: 14kg (ES-10), 30kg (ES-20), 40kg (ES-30), 50kg (ES-40) Moving Coil Dimension: Φ240mm (ES-10), Φ320mm (ES-20), Φ450mm (ES-30, ES-40)
Frequency Range: 3-3000Hz (ES-10, ES-20), 3-2800Hz (ES-30, ES-40)
Highlight

20KN Vibration Test Machine

,

ISTA 3A Vibration Shaker System

,

100g Vibration Test Equipment

Product Description

Product Overview

The Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine is engineered for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves critical testing needs across aerospace, communications, electronics, electrical, home appliance, and related industries. This test platform complies with major international standards including IEC, MIL-STD, JIS, and ASTM specifications.

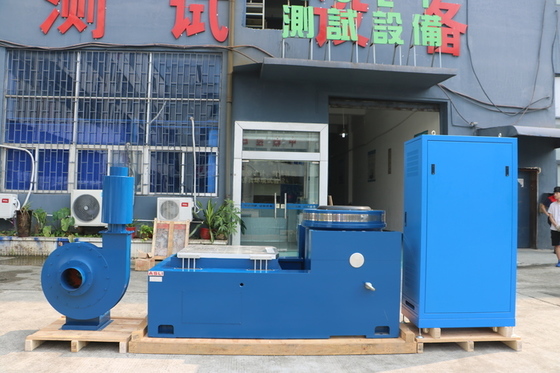

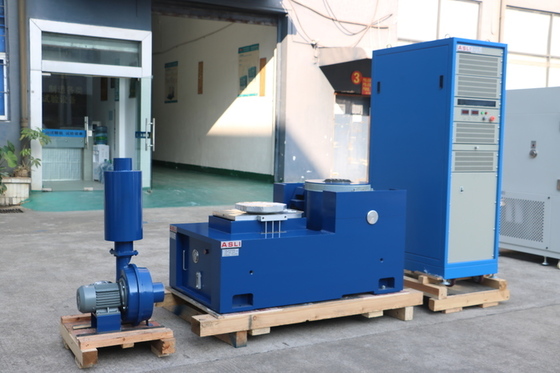

Electromagnetic high frequency horizontal vertical vibration test machine main unit
Technical Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3–3000 3–3000 3–2800 3–2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated Displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving Coil (Kg) 14 30 40 50
Dimension of Moving Coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system and straight line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
  • The central load airbag provides high static stiffness and low dynamic stiffness, ensuring strong bearing capacity and outstanding dynamic performance.
  • Rapid self-examination diagnosis and chain protection ensure high safety and reliability.
  • The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
  • Provides different horizontal and vertical expansion platforms for versatile testing configurations.
  • Compatible with all types of vibration controllers for simple, straightforward operation.
Horizontal Stand Features
  • Small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.
  • Horizontal bench and vibration bench are integrated as a single unit with a robust structure, making installation and adjustment convenient.
  • Static pressure track with V-shape design provides slope-resistant and bias-loading resistant capability.
  • Built-in oil pump offers a well-structured design and easy operation.
Horizontal vibration test stand with integrated oil pump and V-shape track Close-up view of horizontal stand static pressure track and moving coil assembly
Packing & Delivery
Standard export plywood case packaging for vibration test machine

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided. Packaging includes PP film first, then 10mm foam between the machine and the case, with a standard export plywood case outside.

Company Profile
Manufacturing facility of testing equipment company Production workshop for environmental testing equipment Assembly line for mechanical vibration and shock testing machines Quality control inspection of vibration test equipment CE certification for horizontal and vertical vibration test machine Finished vibration test equipment ready for shipment

We are a long-established testing equipment manufacturer with 28 years of experience dedicated to simulation environmental testing equipment and mechanical vibration and shock testing machines. The horizontal and vertical vibration 3-axis high frequency vibration tester is one of our star products, and we have obtained CE certification for this machine.

Frequently Asked Questions
Q1. What are your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF, DDU, DAP, DDP.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the Electromagnetic High Frequency Horizontal Vertical Vibration Test Machine, please feel free to contact us.

Product Highlights

Electromagnetic vibration test machine with 20KN force, 3-3000Hz frequency, and 100g acceleration. Features flexible suspension, airbag damping, and computer control. CE certified, 28-year manufacturer. Ideal for aerospace, electronics, and automotive reliability testing.
