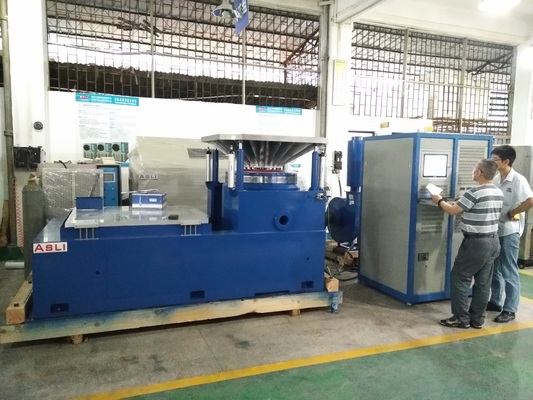

High Frequency Vibration Shaker System with 5Hz to 3500Hz Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed
Product Details
| Frequency Range: | 5Hz To 3500Hz | Max Acceleration: | 1000m/s2 |
|---|---|---|---|
| Max Speed: | 1.6m/s | Impact Displacement: | 25mm |
| Moving Coil Weight: | 6.5kg | Vibration Directions: | Vertical & Horizontal |
| Vibration Wave: | Sine, Random, Shock | Moving Coil Size: | Dia. 230 Mm |
| Power Type: | Electronic | Rated Sine Force: | 6000N |
| Rated Random Force: | 6000N | Rated Acceleration: | 1000m/s2 |
| Rated Speed: | 1.6m/s | Rated Displacement: | 25mm |
| Max Loading: | 180kg | ||
| Highlight |
5Hz to 3500Hz Vibration Shaker System,1000m/s2 Max Acceleration Vibration Test Machine,1.6m/s Max Speed Electrodynamics Vibration Shaker |
||
Product Description
The High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker Table Test Machine performs sinusoidal vibration tests and broadband random vibration tests independently. It also supports classic pulse testing (half sinusoid, trapezoid, back peak saw tooth) and shock response spectrum testing. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is widely used in national defense, weapon development, aviation, spaceflight, communication, electronics, electrical appliances, transportation, and household appliances. It can be configured to provide users with comprehensive multi-environment test equipment covering both climatic and mechanical conditions.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.
- Within a small loading bench, higher acceleration and working frequency are realized, improving the loading capacity and performance of the whole machine bench.
- The horizontal bench and vibration bench are an integral type, with a perfect structure that is convenient to install and adjust.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump, good structure, and easy operating.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
Please don't hesitate to contact us if you have any needs regarding the High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker Table Test Machine.
Product Highlights
High-frequency electrodynamic vibration shaker for vertical and horizontal testing. 5-3500Hz, 6000N force, 1000m/s² acceleration, 180kg load. Supports sine, random, shock, and combined climate tests. CE certified, 28-year manufacturer, 12-month warranty, custom options available.
