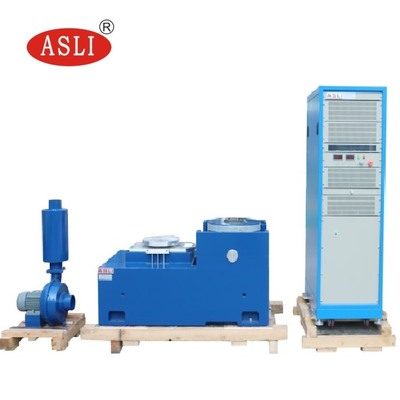

High Frequency Vibration Test Table with 20KN Vibration Force 100g Acceleration and 3~3500Hz Frequency for Precision Testing
Product Details
| Vibration Direction: | Vertical Vibration | Vibration Force: | 20KN |
|---|---|---|---|
| Control Method: | Computer Control | Acceleration: | 100g |
| Frequency Range: | 3~3500hz | Moving Coil Weight: | 30kg |
| Power Type: | Electronic | Rated Sine Force: | 10000N |
| Rated Acceleration: | 1000 M/s2 | Rated Speed: | 1.8 M/s |
| Rated Displacement: | 70 Mm | Max Loading: | 270 Kg |
| Moving Coil Dimension: | Φ240 Mm | Frequency Range: | 3-3000 Hz |
| Moving Coil Weight: | 14 Kg | ||
| Highlight |
20KN Vibration Force Vibration Test Table,100g Acceleration Vibration Shaker System,3~3500Hz Frequency High Frequency Vibration Tester |
||
Product Description
The High Frequency Vibration Test Table is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It is designed to meet the testing needs of products across aerospace, communications, electronics, electrical, home appliances, and other industries. This test platform complies with a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, providing strong bearing capacity and outstanding dynamic performance.
- Rapid self-diagnosis and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces the vibration wave, and reduces vibration transmission.
- Horizontal and vertical expansion platforms are available for different applications.
- Compatible with all types of vibration controllers for simple operation.
- A small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the complete machine bench.
- The horizontal bench and vibration bench are an integral design with a robust structure, making installation and adjustment convenient.
- The static pressure track features a V-shape design with slope-resistant and bias-loading-resistant capabilities.
- The built-in oil pump offers a well-structured design and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a testing equipment manufacturer with 28 years of history, dedicated to simulation environmental testing equipment and mechanical vibration and shock testing machines. The horizontal and vertical vibration 3-axis high frequency vibration tester is our star product, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DAP, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the High Frequency Vibration Test Table, please feel free to contact us.
