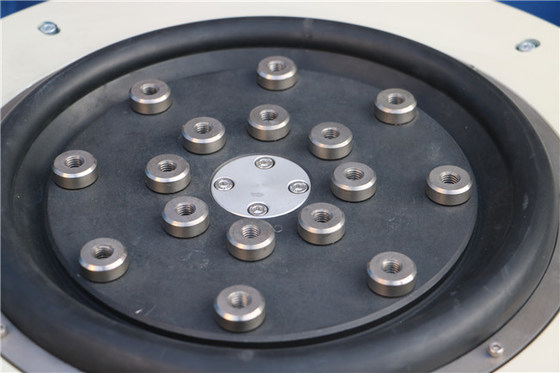

Professional Electrodynamic Shaker with 3-3500Hz Frequency Range 1 Year Warranty and 3.5kg Moving Coil for Vibration Testing
Product Details
| Max. Speed: | 1.6m/s | Moving Coil Weight: | 3.5 Kg |
|---|---|---|---|
| Cooling Fan Power: | 3kw | Power Supply: | AC380V |
| Vibration Direction: | Vertical+horizontal | Rated Sine Force: | 3000-120000 N |
| Rated Random Force: | 3000-120000 N | Frequency Range: | 3-3500 Hz |
| Rated Acceleration: | 1000 M/s² | Rated Displacement: | 25-51 Mm |
| Max. Loading: | 100-1100 Kg | Moving Coil Diameter: | Φ150-Φ500 Mm |
| Power Type: | Electronic | Rated Speed: | 1.6-1.8 M/s |
| Moving Coil Weight Range: | 3.5-90 Kg | ||
| Highlight |
3-3500Hz Electrodynamic Shaker,1 Year Warranty Vibration Shaker System,3.5kg Moving Coil Vibration Testing Equipment |
||
Product Description
The Professional High Frequency Electrodynamic Shaker is engineered for precise vibration testing across a wide range of industrial and research applications. With rated sine and random forces from 3,000 N to 120,000 N and a frequency range up to 3,500 Hz, this series delivers reliable, repeatable performance for product qualification, reliability assessment, and structural dynamics analysis.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Package: PP film first, then 10 mm foam between the machine and the case, and outside is a standard export plywood case.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
- Client is first. We are trying to bring maximum profit to our clients and offer best quality products.
- Credibility is the most important.
- Quality control is our life.
- Great sense of responsibility.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vertical mechanical vibration testing machine is one of our star products, and we have obtained CE certification for this machine.
A: PP film first, then 10 mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Professional High Frequency Electrodynamic Shaker for Vibration Testing, please don't hesitate to send your inquiry.
Product Highlights
Professional electrodynamic shaker with 3000-120000N force, 3-3500Hz frequency, vertical+horizontal vibration. Durable, efficient, CE certified by 28-year manufacturer. Custom options, 12-month warranty, export-ready packaging.
