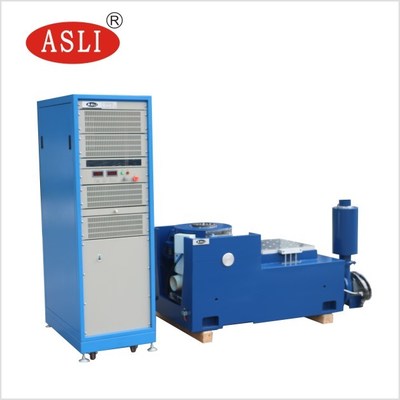

Transportation Shaker Vibration Tester with 1 Year Warranty 1 Channel Input and 1 PC Acceleration Sensor

Brand Name: ASLI
Model Number: ES-10
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Sine Force: 10000N Vibration Wave: Sine, Random, Shock
Vibration Directions: Three Directions Free Vibration Acceleration Sensor: 1 Pc
Input Channel: 1 Channel Frequency Range: 3-3000 Hz
Rated Acceleration: 1000 M/s2 Rated Speed: 1.8 M/s
Rated Displacement: 51 Mm Max Loading: 270 Kg
Moving Coil Weight: 14 Kg Moving Coil Diameter: Φ240 Mm
Power Type: Electronic Dynamic Circle: High Axial Resonance Frequency
Cooling System: Enhanced Duct Design
Highlight

1 Year Warranty Vibration Shaker System

,

1 Channel Input Transportation Shaker

,

1 PC Acceleration Sensor Vibration Tester

Product Description

Product Description

The Transportation Shaker Vibration Tester is engineered for precise simulation of transportation and operational vibration environments. It delivers reliable performance across a wide frequency range, making it suitable for product qualification, reliability testing, and quality assurance in industries such as automotive, aerospace, electronics, and packaging.

Transportation Shaker Vibration Tester Price Parameter
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Technical parameters diagram of vertical expander for vibration shaker system
Technical Parameters of Horizontal Expander
Technical parameters diagram of horizontal expander for vibration shaker system
High Frequency Vibration Test Machine Specifications
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
  3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
  5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
  6. New duct design and enhance the cooling effect.
  7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Detailed Images
Close-up view of vibration shaker tester dynamic circle and armature assembly Detailed view of vibration shaker tester trunnion and bearing assembly Vibration shaker tester control panel and cooling duct system Vibration shaker tester magnetic circuit and coil structure detail Vibration shaker tester expander table and mounting surface Vibration shaker tester complete system with isolation foundation
Other Products
Overview of ASLI other environmental and vibration testing products
Our Company
ASLI company facility and manufacturing workshop for testing equipment

ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber, etc.

Packing & Delivery
Packing and delivery preparation of vibration shaker tester in wooden crates
Our Service
ASLI customer service and technical support team for testing equipment
FAQ
Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the Transportation Shaker Vibration Tester Price, please don't hesitate to send your inquiry.

Product Highlights

ES-10 shaker delivers 10000N sine force, 3-3000Hz, 270kg max load, three-direction free vibration. Enhanced duct cooling, high axial resonance dynamic circle, low magnetic flux leakage. Ideal for transportation vibration testing. Custom options available.
