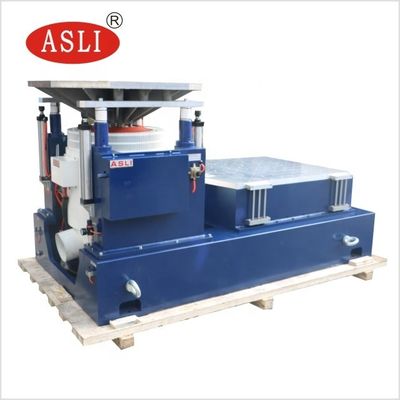

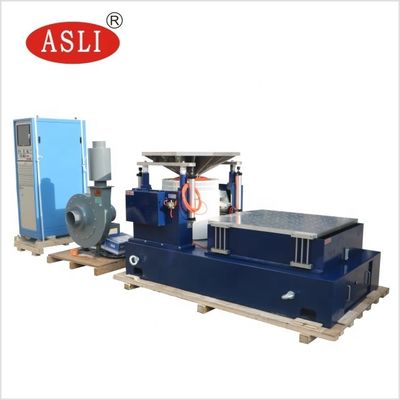

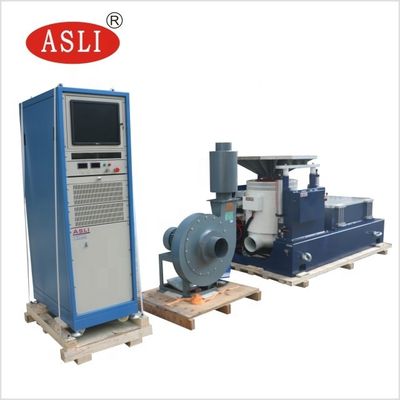

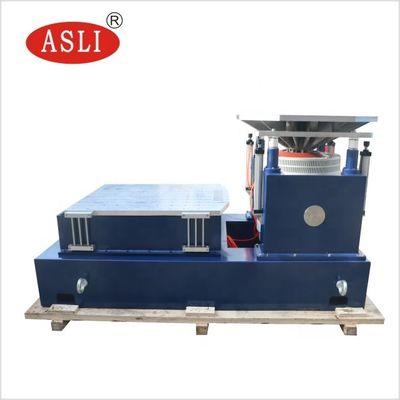

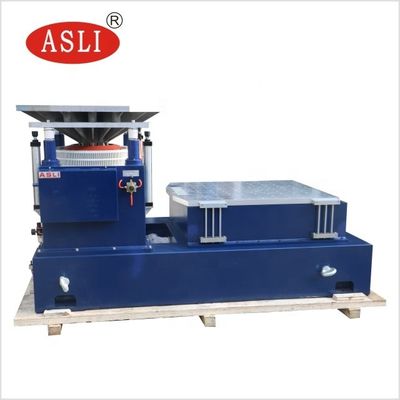

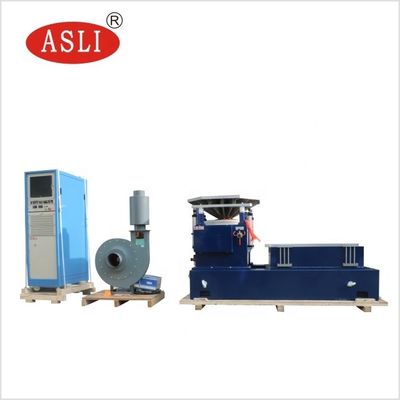

Vibration Shaker Table with 1 Year Warranty 1 Channel Input and 1 PC Acceleration Sensor for Automotive Industry Testing
Product Details
| Sine Force: | 3000N | Vibration Wave: | Sine, Random, Shock |
|---|---|---|---|
| Vibration Directions: | Three Directions Free Vibration | Acceleration Sensor: | 1 Pc |
| Input Channel: | 1 Channel | Magnetic Circuit: | Double-magnetic Circuit |
| Support Type: | Airborne Support | Bearing Type: | Roller Bearings |
| Guidance System: | Linear Guidance | Isolation Technology: | Trunnion Isolation |
| Test Axes: | X, Y, Z Three-axis | Test Types: | Sinusoidal, Broadband Random |
| Pulse Types: | Half-sine, Trapezoidal, Sawtooth | Dynamic Circle: | Self-generated Skeleton |
| Orientation System: | Rocker Rod Roller Bearings | ||
| Highlight |
1 Year Warranty Vibration Shaker Table,1 Channel Input Vibration Testing Machine,1 PC Acceleration Sensor Electrodynamic Vibration Shaker |
||
Product Description
The Vibration Shaker Table Engine Bench Tester / Car Battery Test Equipment is designed for educational, research, and laboratory environments. It adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation — advanced modern technologies combined with specialized engineering. The system can perform X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
- Well-designed dynamic circle skeleton, delivering a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
ASLi is a professional manufacturer specializing in environmental testing equipment, including vibration test systems, climatic chambers, and integrated test solutions for the automotive, aerospace, and electronics industries.
