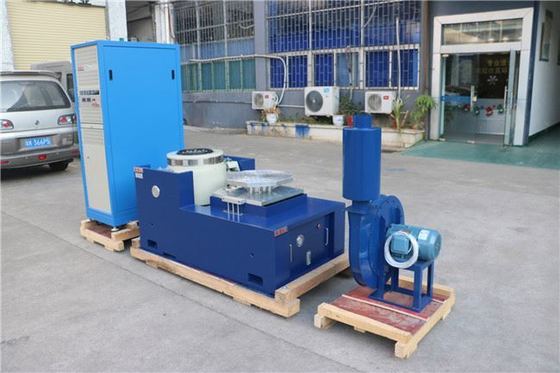

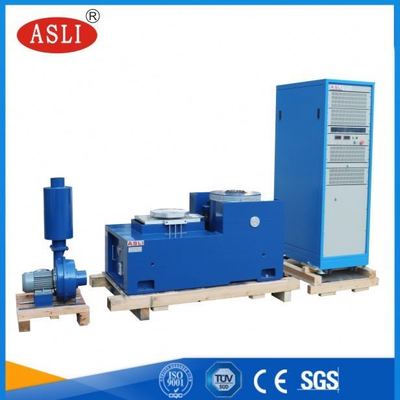

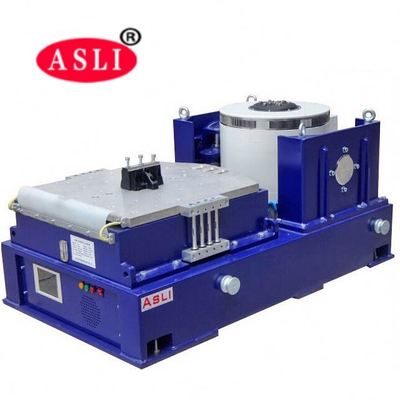

100g Acceleration Vibration Testing Machine with 10000N Sine Force and 1 Year Warranty
Product Details
| Sine Force: | 10000N | Vibration Wave: | Sine, Random, Shock |
|---|---|---|---|
| Vibration Directions: | Three Directions Free Vibration | Acceleration Sensor: | 1 Pc |
| Input Channel: | 1 Channel | Frequency Range: | 3-3000Hz |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.8m/s |
| Rated Displacement: | 51mm P-p | Max Loading: | 270Kg |
| Moving Coil Weight: | 14Kg | Moving Coil Dimension: | Φ240mm |
| Dynamic Circle: | Well-designed Skeleton | Magnetic Circuit: | Two-magnetic Circuit |
| Cooling System: | New Duct Design | ||
| Highlight |
100g Acceleration Vibration Testing Machine,10000N Sine Force Vibration Test Equipment,1 Year Warranty Electrodynamic Vibration Shaker |
||
Product Description
The vibration test machine with 100g acceleration is available in multiple models to suit various testing requirements. Key parameters are listed in the table below.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
- Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
- Advanced technology move around the system to ensure that the dynamic circle of high reliability.
- New duct design and enhance the cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, vibration test machine with 100g acceleration, mechanical shock tester, climatic combined vibration chamber, etc.
A: Generally, we pack our goods in neutral white boxes and brown cartons.
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CFR, CIF, DDU.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the vibration test machine with 100g acceleration, please don't hesitate to send your inquiry.
