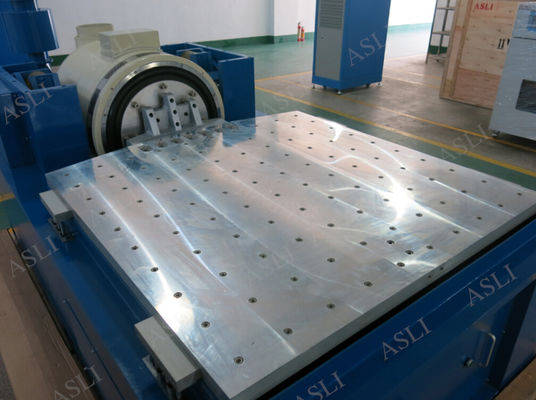

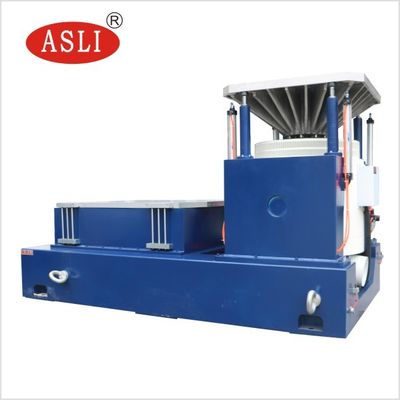

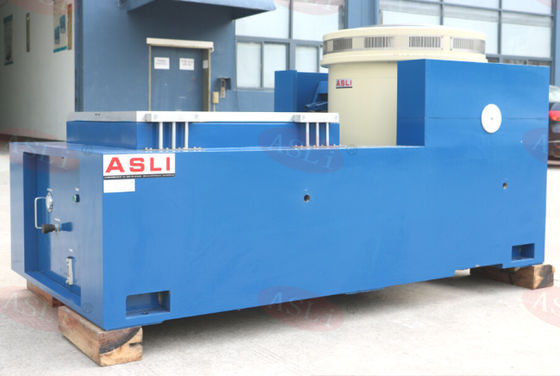

High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty
Product Details
| Sine Force: | 10000N | Vibration Wave: | Sine, Random, Shock |
|---|---|---|---|
| Vibration Directions: | 3 Axis | Acceleration Sensor: | 1 Pc |
| Input Channel: | 1 Channel | Rated Random Force: | 10000N |
| Frequency Range: | 3-3000Hz | Rated Acceleration: | 1000m/s2 |
| Rated Speed: | 1.8m/s | Rated Displacement: | 51mm |
| Max Loading: | 270Kg | Moving Coil Weight: | 14Kg |
| Moving Coil Dimension: | Φ240mm | Dynamic Circle Skeleton: | High Stage Axial Resonance Frequency |
| Magnetic Circuit: | Two-magnetic Circuit | ||
| Highlight |
10000N Vibration Test Bench,1 Year Warranty Vibration Testing Machine,Sine Force Electrodynamic Shaker |
||
Product Description

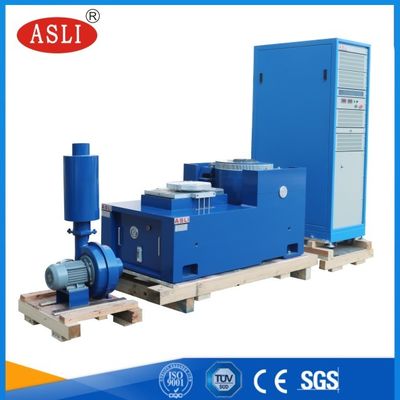

The High Frequency Vibration Test Bench is engineered for precision vibration testing across a wide range of industrial and research applications. With rated sine and random force capacities from 3,000 N to 50,000 N, and a frequency range extending up to 3,500 Hz, this electrodynamic shaker system delivers reliable, repeatable results for product qualification, reliability testing, and structural dynamics analysis.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.

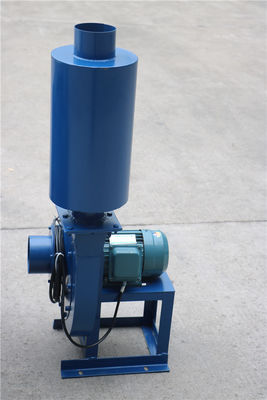

- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon, raising the vibration table bearing capacity and improving low-frequency performance.
ASLI main products include: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber, and more.
Q1: What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2: What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3: What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the High Frequency Vibration Test Bench, please don’t hesitate to send your inquiry.
Product Highlights
ES-10 high frequency vibration test bench delivers 10000N sine/random force, 3-3000Hz, 3-axis testing, 270Kg max load. Features dual magnetic circuit, advanced cooling, high axial resonance. Ideal for reliable industrial vibration testing.
