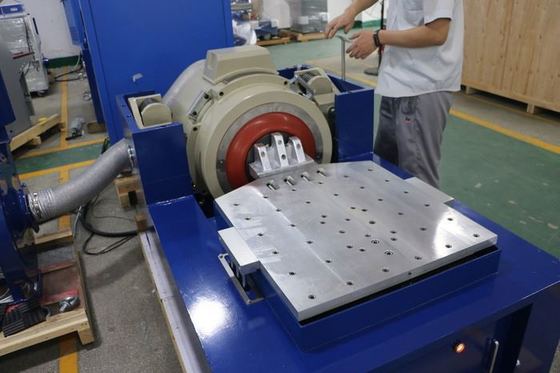

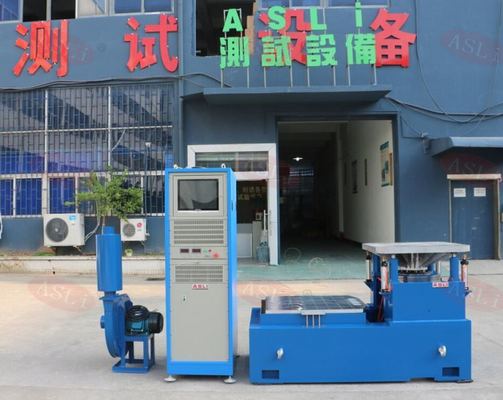

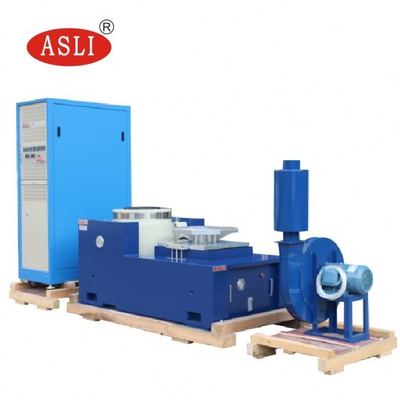

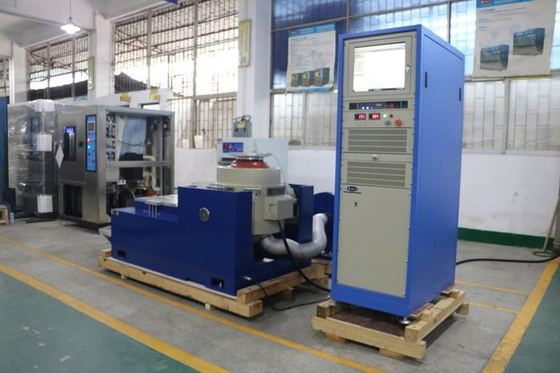

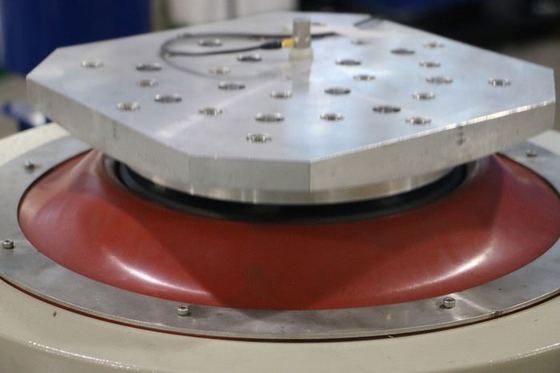

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test
Product Details
| Vibration Direction: | Vertical Vibration | Vibration Force: | 20KN |
|---|---|---|---|
| Control Method: | Computer Control | Acceleration: | 100g |
| Frequency Range: | 3~3500hz | Moving Coil Weight: | 30kg |
| Rated Sine Force: | 10000N | Rated Acceleration: | 1000 M/s2 |
| Rated Speed: | 1.8 M/s | Rated Displacement: | 70 Mm |
| Max Loading: | 270 Kg | Moving Coil Dimension: | Φ240 Mm |
| Power Type: | Electronic | Frequency Range: | 3-3000 Hz |
| Moving Coil Weight: | 14 Kg | ||
| Highlight |
20KN Vibration Testing Machine,100g Vibration Test Machine,30kg Electrodynamic Vibration Shaker |
||
Product Description
The Competitive Price High Frequency Industrial Vibration Test Machine for Battery Test is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It is suitable for products across aerospace, communications, electronics, electrical, home appliances, and other industries. This machine serves as a test platform that meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness, low dynamic stiffness, strong bearing capacity, and excellent dynamic performance.
- Rapid self-examination diagnosis and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
- Provides different horizontal and vertical expansion platforms for versatile testing setups.
- Compatible with all types of vibration controllers for simple, straightforward operation.
- Within a small loading bench, higher acceleration and working frequency are achieved, improving the loading capacity and overall performance of the machine bench.
- The horizontal bench and vibration bench are an integral type with a perfect structure, making installation and adjustment convenient.
- Static pressure track with V-shape design provides slope-resistant and bias-loading resistant capability.
- Built-in oil pump offers a good structure and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided. Packaging includes PP film first, then 10mm foam between the machine and the case, with a standard export plywood case on the outside.
We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The horizontal and vertical vibration 3-axis high frequency vibration tester is one of our star products, and we have obtained CE certification for this machine.
Q1. What are your terms of packing?
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Competitive Price High Frequency Industrial Vibration Test Machine for Battery Test, please feel free to contact us.
Product Highlights
High-frequency vibration test machine for battery testing. Features 20KN force, 3-3500Hz range, 100g acceleration, and 270kg max load. Computer-controlled with airbag damping, no foundation needed. CE certified, 28-year manufacturer. Meets IEC, MIL-STD, ASTM standards. Custom horizontal/vertical platforms available.
