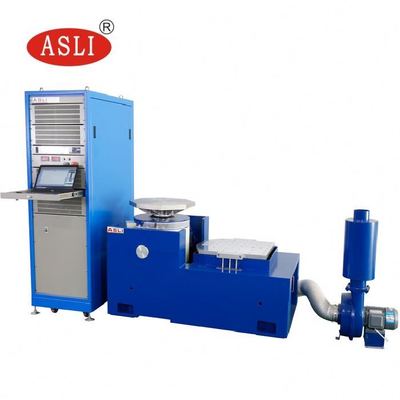

Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Product Details
| Vibration Direction: | Vertical Vibration | Vibration Force: | 20KN |
|---|---|---|---|
| Control Method: | Computer Control | Acceleration: | 100g |
| Frequency Range: | 3~3500Hz | Moving Coil Weight: | 30kg |
| Rated Sine Force: | 10000N | Rated Acceleration: | 1000 M/s2 |
| Rated Speed: | 1.8 M/s | Rated Displacement: | 70 Mm |

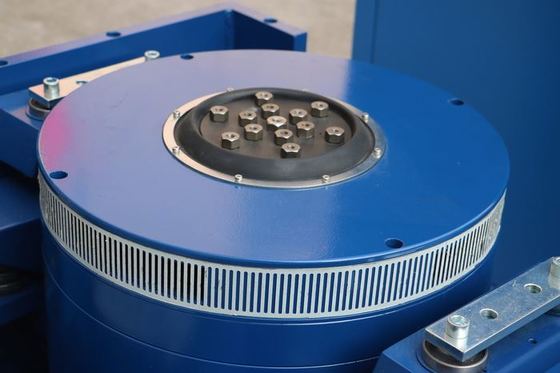

| Max Loading: | 270 Kg | Moving Coil Dimension: | Φ240 Mm |
| Power Type: | Electronic | Static Stiffness: | Large |
| Dynamic Stiffness: | Small | ||
| Highlight |
JIS D1601 Standard Vibration Testing Machine,20KN Vibration Force Vibration Tester Equipment,100g Acceleration Electrodynamic Vibration Shaker |
||
Product Description
The Vibration Tester Equipment With JIS D1601 Standard is primarily designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves the testing needs of products across aerospace, communications, electronics, electrical, home appliances, and other industries. This equipment is a versatile test platform that meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, providing strong bearing capacity and outstanding dynamic performance.
- Rapid self-examination diagnostics and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces the vibration wave, and reduces vibration transmission.
- Horizontal and vertical expansion platforms are available for different applications.
- Compatible with all types of vibration controllers for simple operation.
- A small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.

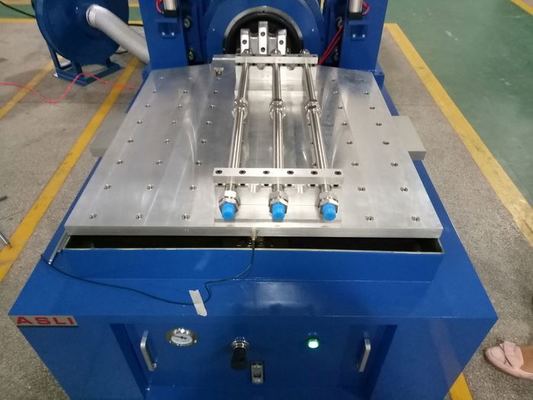

- The horizontal bench and vibration bench are an integral design with a robust structure, making installation and adjustment convenient.
- The static pressure track features a V-shape design with resistance to slope and bias loading.
- A built-in oil pump provides a well-structured design and easy operation.

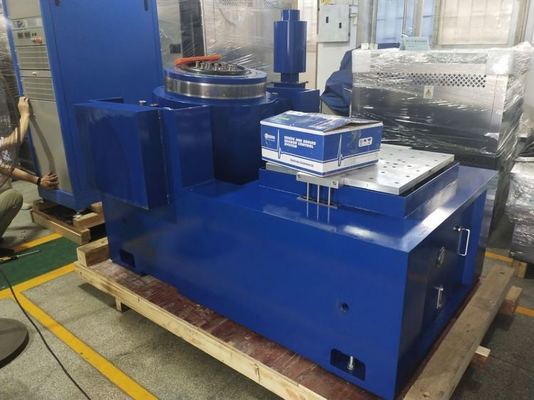

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high-frequency vibration tester is a star product, and we have obtained CE certification for this machine.
Q1. What are your terms of packing?
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Vibration Tester Equipment With JIS D1601 Standard, please feel free to contact us.
Product Highlights
JIS D1601 vibration tester with 20KN force, 3-3500Hz, computer control, and 270kg max load. Features airbag damping, no foundation needed, and vertical/horizontal platforms. CE certified, 28-year manufacturer, supports IEC, MIL-STD, ASTM specs.
