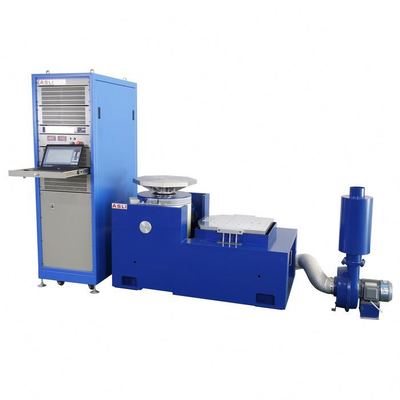

Motorcycle and Electric Vehicle Vibration Testing Machine with 25mm Impact Displacement 6.5kg Moving Coil Weight and Dia. 230 mm Moving Coil Size
Product Details
| Frequency Range: | 5Hz To 3500Hz | Max. Acceleration: | 1000m/s2 |
|---|---|---|---|
| Max. Speed: | 1.6m/s | Impact Displacement: | 25mm |
| Moving Coil Weight: | 6.5kg | Vibration Directions: | Vertical & Horizontal |
| Vibration Wave: | Sine, Random, Shock | Moving Coil Size: | Dia. 230 Mm |
| Rated Sine Force: | 6000N | Rated Random Force: | 6000N |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.6m/s |
| Rated Displacement: | 25mm | Max. Loading: | 180Kg |
| Power Type: | Electronic | ||
| Highlight |
25mm Impact Displacement Vibration Testing Machine,6.5kg Moving Coil Weight Electrodynamic Vibration Shaker,Dia. 230 mm Moving Coil Size Vibration Test System |
||
Product Description
The Motorcycle and Electric Vehicle Vibration Test Machine is engineered to perform both sinusoidal vibration tests and broadband random vibration tests. It also supports classic pulse testing (half sinusoid, trapezoid, back peak saw tooth) and shock response spectrum analysis. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is widely used across national defense, weapon, aviation, aerospace, communication, electronics, electrical appliance, transportation, and household appliance industries. It can be configured to provide users with comprehensive multi-environment test equipment combining climatic and mechanical conditions.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
Note: The ES-6 model is highlighted as a featured configuration.

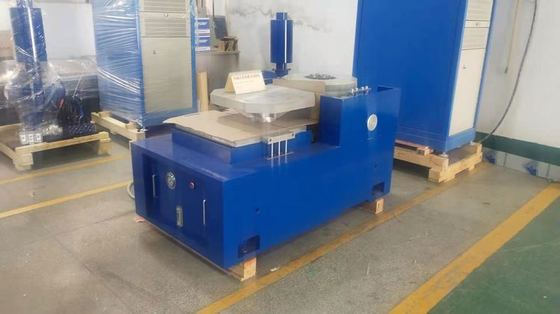

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.

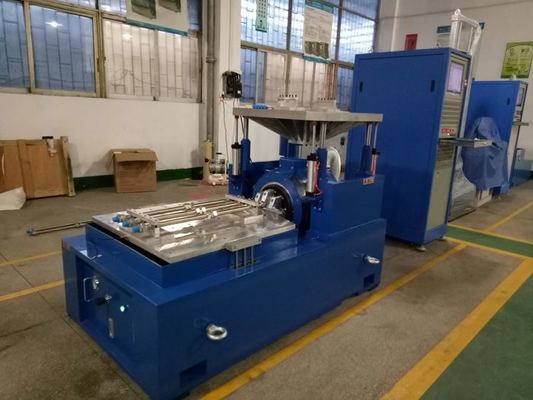

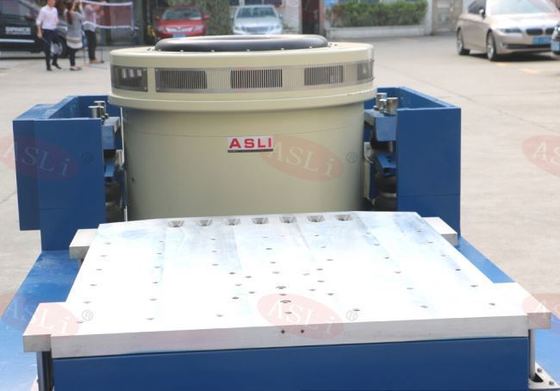

Within a small loading bench, the horizontal expander realizes higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.
- The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
- The static pressure track features a V-shape design with capacity for slope-resistant and bias-loading resistant operation.
- A built-in oil pump provides a good structure and easy operation.
We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
Please don't hesitate to contact us if you have any needs about the Motorcycle and Electric Vehicle Vibration Test Machine.
Product Highlights
ES-6 vibration test machine delivers 6000N sine/random force, 5-3500Hz, 1000m/s², 180kg load, vertical & horizontal testing. CE certified, 28-year manufacturer, 12-month warranty, custom expanders available.
