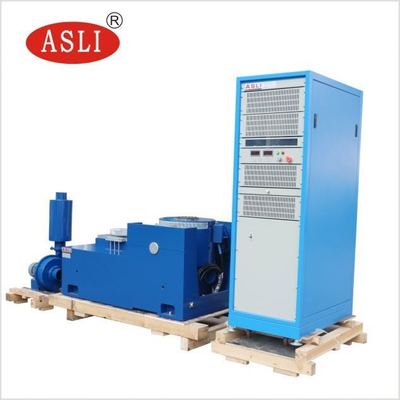

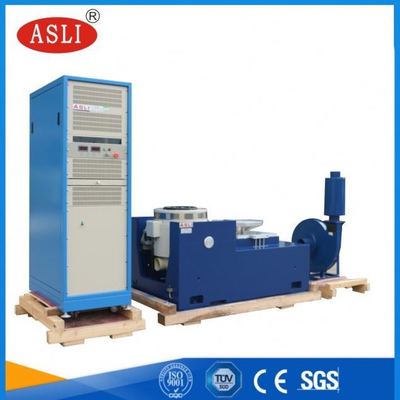

High Performance Vibration Testing Machine with 1000m/s2 Max Acceleration 6.5kg Moving Coil and 25mm Impact Displacement
Product Details
| Frequency Range: | 5Hz To 3500Hz | Max Acceleration: | 1000m/s2 |
|---|---|---|---|
| Max Speed: | 1.6m/s | Impact Displacement: | 25mm |
| Moving Coil Weight: | 6.5kg | Vibration Directions: | Vertical & Horizontal |
| Vibration Wave: | Sine, Random, Shock | Moving Coil Size: | Dia. 230 Mm |
| Rated Sine Force: | 6000N | Rated Random Force: | 6000N |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.6m/s |
| Rated Displacement: | 25mm | Max Loading: | 180Kg |
| Power Type: | Electronic | ||
| Highlight |
1000m/s2 Max Acceleration Vibration Testing Machine,6.5kg Moving Coil Vibration Test System,25mm Impact Displacement Electrodynamic Vibration Shaker |
||
Product Description
The 5–500 Hz Horizontal Vertical Vibration Test Machine is engineered to perform sinusoidal vibration tests and broadband random vibration tests with precision. It also supports classic pulse testing (half sinusoid, trapezoid, back peak saw tooth) and shock response spectrum testing. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is widely deployed across national defense, weapon, aviation, spaceflight, communication, electronics, electrical appliance, transportation, and household appliance industries. It can be configured to provide users with comprehensive multi-environment test equipment integrating both climatic and mechanical testing capabilities.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
Note: The ES-6 model is highlighted as a featured configuration.
The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.

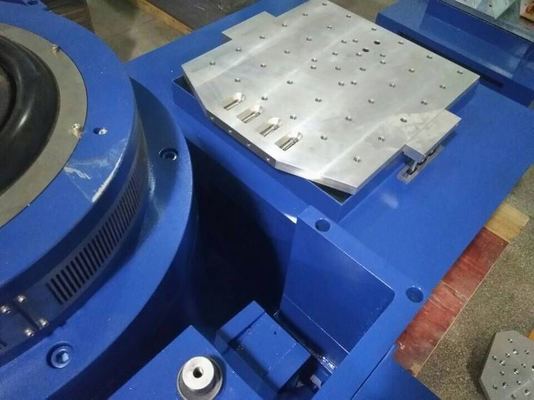

Within a small loading bench, the horizontal expander realizes higher acceleration and working frequency, improving the loading capacity and overall performance of the complete machine bench.

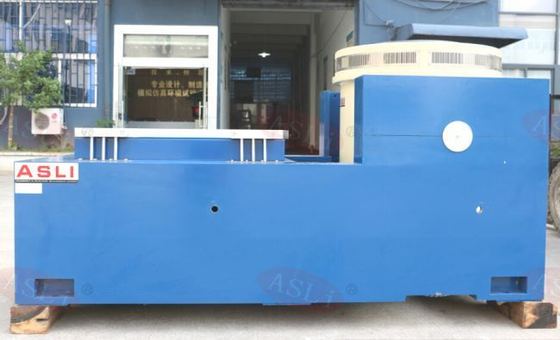

The horizontal bench and vibration bench are of integral type, featuring a perfect structure and convenient installation and adjustment. The static pressure track uses a V-shape design with capacity for slope-resistant and bias-loading resistant operation. A built-in oil pump ensures good structure and easy operation.
We are a long-established testing equipment manufacturer with 28 years of dedicated experience in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
Please don't hesitate to contact us if you have any needs regarding the 5–500 Hz Horizontal Vertical Vibration Test Machine.
Product Highlights
5-500Hz horizontal/vertical vibration test machine delivers 6000N sine/random force, 1000m/s² acceleration, 180kg max load, supporting sine, random and shock tests. CE certified by a 28-year manufacturer, with custom expanders and 12-month warranty.
