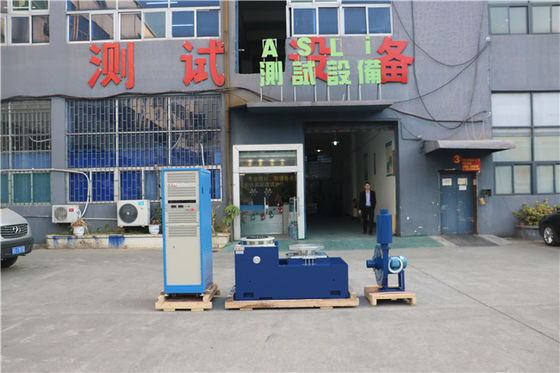

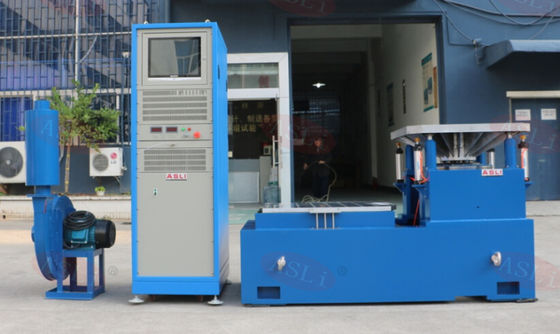

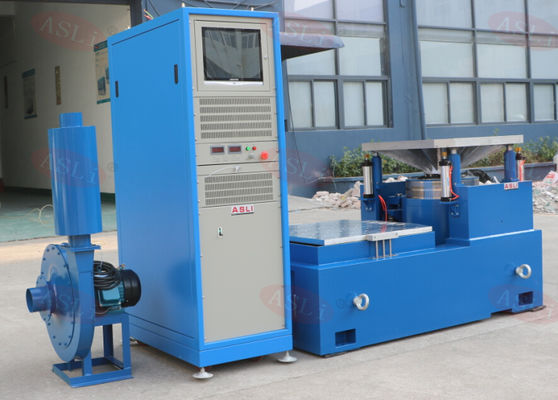

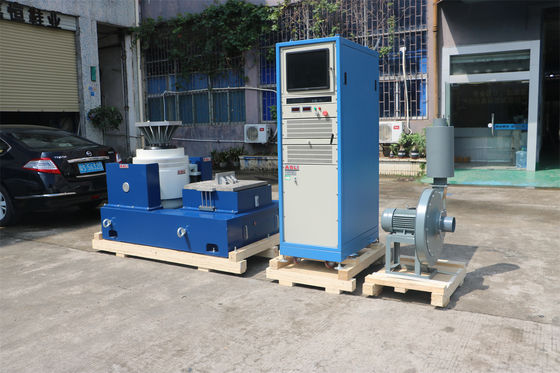

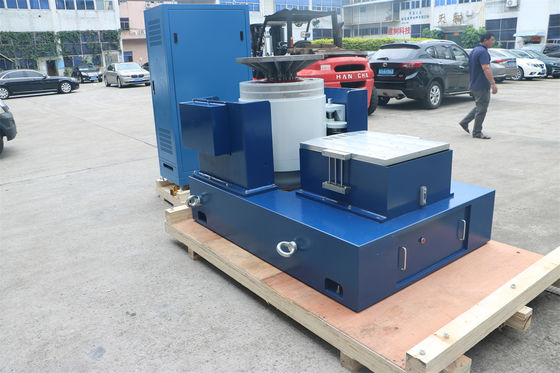

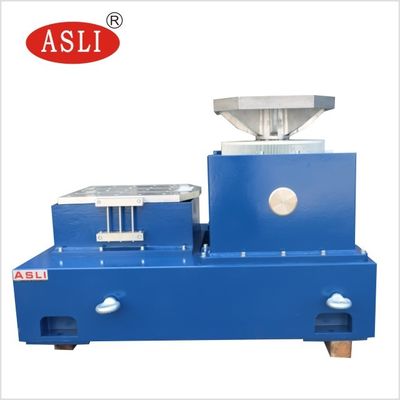

100g Acceleration 6.5kg Moving Coil Weight 1 Year Warranty Vibration Testing Machine Electrodynamic Vibration Shaker
Product Details
| Vibration Force: | 6000N | Vibration Direction: | 3 Axis |
|---|---|---|---|
| Acceleration: | 100g | Frequency Range: | 3~3500Hz |
| Moving Coil Weight: | 6.5kg | Rated Speed: | 1.8m/s |
| Rated Sine Force: | 6000N | Rated Random Force: | 6000N |
| Rated Acceleration: | 1000m/s² | Rated Displacement: | 25mm P-p |
| Max Loading: | 180kg | Moving Coil Diameter: | Φ230mm |
| Max Displacement: | 51mm P-p | Low Frequency: | 2Hz |
| Power Type: | Electronic | ||
| Highlight |
100g Acceleration Vibration Testing Machine,6.5kg Moving Coil Weight Electrodynamic Vibration Shaker,1 Year Warranty Mechanical Tester |
||
Product Description
Test Standards: ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, and others.
The Bump Shock Vibration Impact Instrument Mechanical Tester is designed for discovering early faults, simulating actual working conditions, and conducting structural strength tests. Its applications are broad, and its test results are remarkable and reliable. It supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control. Full computer control is available, along with simple fixed acceleration and fixed amplitude modes. The equipment has undergone continuous failure-free operation for 3 months of testing, demonstrating stable performance and reliable quality.
- Large loading capacity with a maximum displacement of 51 mm peak-to-peak and a low working frequency of 2 Hz.
- Meets the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for basic testing of international transport packages.
- The table body is guided by hydraulic wheels and linear bearings with low axial rigidity.
- Air spring support provides large load capacity, good low-frequency characteristics, and high stability.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ 230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- The base of the machine is made of high-quality materials, easy to install, and runs smoothly.
- Includes many functions such as frequency modulation, frequency sweeping, programmable amplitude modulation, and time control.
- Strong anti-magnetic and anti-interference ability; safe and reliable protection.
- Computer connecting line control with immediate material storage.
- Low resistance and high-performance design, offering high efficiency and low cost.
- High reliability and low fault rate.
- Best after-sales service: One year free parts maintenance.
- Customization is available and welcomed.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
A: Factory + trade (integration). We have our own factory.
A: Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
A: 1 Year warranty, but lifetime for services.
A: Our products apply to ISO, ASTM, GB, MIL-STD, etc.
If you need more information about the Bump Shock Vibration Impact Instrument Mechanical Tester, please don't hesitate to send your inquiry.
Product Highlights
6000N 3-axis vibration tester with 3-3500Hz range, 180kg load, 51mm displacement and 2Hz low frequency. Meets ISO, CE, IEC standards. Computer controlled, reliable performance, customizable, one-year warranty.
