Free Fall High Precision Drop Test System for Packaging Products

Brand Name: ASLI
Model Number: AS-DT-150
Place of Origin: China
Certification: CE, ISO,SGS, BV
Minimum Order Quantity: 1 set
Price: Negotiable
Supply Ability: 30 set per month
Delivery Time: 20 working days
Payment Terms: T/T
Standard Packaging: strongly wooden case

Product Details


Drop Height: 300~1500mm Max. Load: 60/80/100kg
Sample Size: 1000x800x1000mm Or Custmozied Application: Packaging Products
Meet Standard: ISTA, ASTM Drop Method: Face, Edge, Angle
Drop Speed: Free Fall Power Supply: AC380V, 3 Phase 5 Lines
Highlight

high precision drop test system

,

packaging drop test machine

,

mechanical shock testing equipment

Product Description

Product Overview

The Free Fall High Precision Drop Test System for Packaging Products is designed to assess packaging performance during actual transportation, loading, and unloading. By simulating free-fall impacts, it evaluates the degree of impact, impact-resistant strength, and the overall reasonableness of packaging design.

Key Features: 300–1500 mm adjustable drop height (customizable), optional guardrail, and limit switch for machine protection.

Technical Specifications
Parameter AS-DT-120 AS-DT-150 AS-DT-200
Max. Weight of Test Samples (Kg) ≥200 100 100
Height of Drop (mm) 0~1200 300~1500 300~2000
Max. Dimension of Test Sample W×H×D (mm) 1200×1200×1200 1000×800×1000 1000×800×1000
Falling Floor Size W×H×D (mm) 1400×50×2000 1700×50×1200 1700×50×1200
Drop Method Face, edge, angle
Test Bench External Dimension W×H×D (mm) 1400×2000×1800 1700×2700×1200 1700×2700×1200
Weight (Kg) 1500 600 700
Power Supply AC380V, 3 phase, 5 lines
Carton Drop Test Machine Features
  • Outside material: Advanced paint coat
  • Display: LCD display
  • Power system: Drive device (imported motor + speed reducer + axle + upper and lower limitation + spring + electromagnet) + dropping device (dropping standard board + magnet + safety spacing push rod + automatic return back + digital altometer + encoder + hydraulic pressure buffering device)
  • Control system: Adopting electromagnet sensor control; the interface is easy to operate with a high degree of automatic control
  • Safety device: Upper and lower limitation device; automatic off-power device if electricity leakage occurs
Standards Compliant
ISO2248 JISZ0202-87 GB/T4857.5-92 ISTA 1A ISTA 2A ISTA 3A

Product Gallery

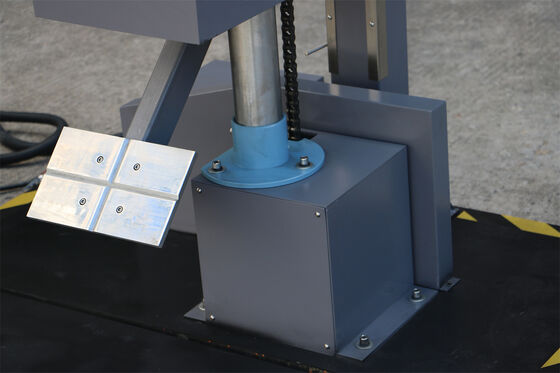

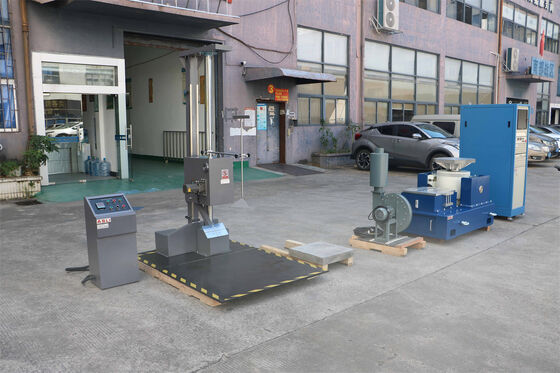

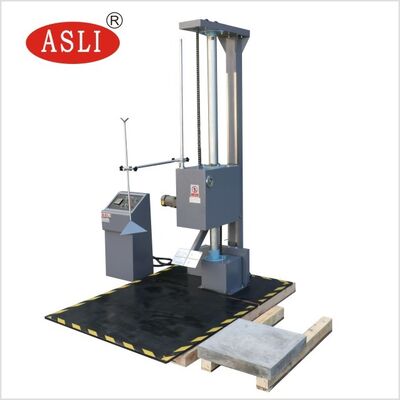

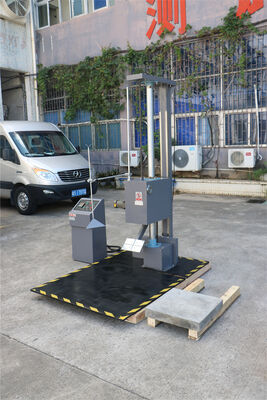

Free fall drop test system for packaging products – front view Drop test machine control panel and LCD display Drop test system dropping mechanism and safety guardrail
Packing & Delivery

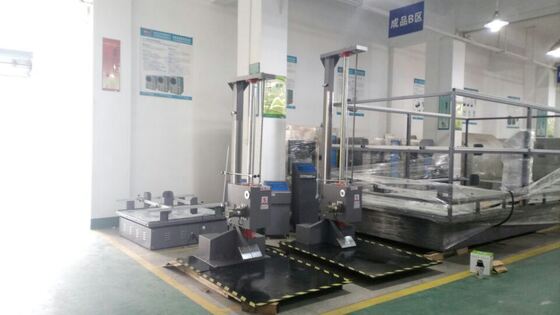

Professional packaging and delivery preparation for drop test system

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile
Testing equipment manufacturer company profile

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Free Fall High Precision Drop Test System for Packaging Products is one of our star products, and we have obtained CE certification for this machine.

Product Highlights

Free Fall High Precision Drop Test System for packaging: 300-1500mm adjustable height, 60-100kg load, face/edge/angle drops. Meets ISTA, ASTM, ISO2248, CE certified. Custom sizes available. Durable, efficient, safe design with LCD control and limit switches.
