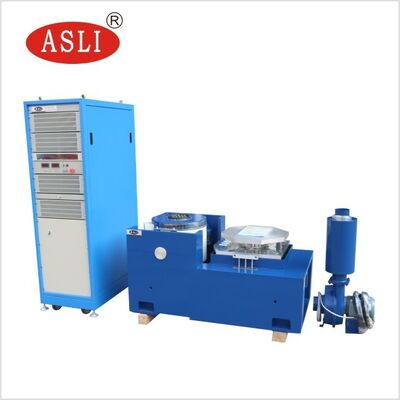

ISO16750 Standard 3-axis Electrodynamics Vibration Testing Machine

Brand Name: ASLI
Model Number: ES-10
Place of Origin: CHINA
Certification: CE, ISO,SGS, BV
Minimum Order Quantity: 1 set
Price: negotiable
Supply Ability: 100 sets per quarter
Delivery Time: 30~40 days
Payment Terms: T/T, Western Union, L/C
Standard Packaging: strongly wooden case

Product Details


Vibration Direction: 3-axis Frequency Range: 5~2000hz
Standard: ISO16750 Displacement: 51mm
Moving Coil Weight: 14kg Moving Coil Size: Φ240mm
Highlight

ISO16750 3-axis vibration testing machine

,

electrodynamics vibration testing equipment

,

standard vibration testing machine with warranty

Product Description

Product Description

The ISO16750 Standard 3-axis Electrodynamics Vibration Testing Machine adopts advanced modern technologies including a "double-magnetic circuit structure," "self-generated skeleton action circles," "Airborne Support," "roller bearings and linear guidance," and "trunnion isolation." It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. It is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances fields.

ISO 16750-3:2023 Test VIII Compliance

After checking ISO 16750-3:2023, 4.1.14 Test VIII — Commercial vehicle, decoupled cab, the test points should be:

Max. acceleration: 21.3 m/s²  |  Frequency: 10–2000 Hz

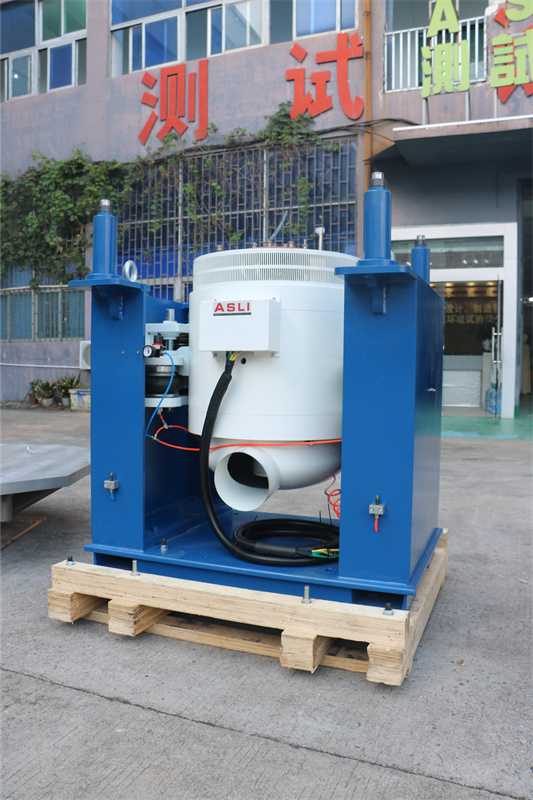

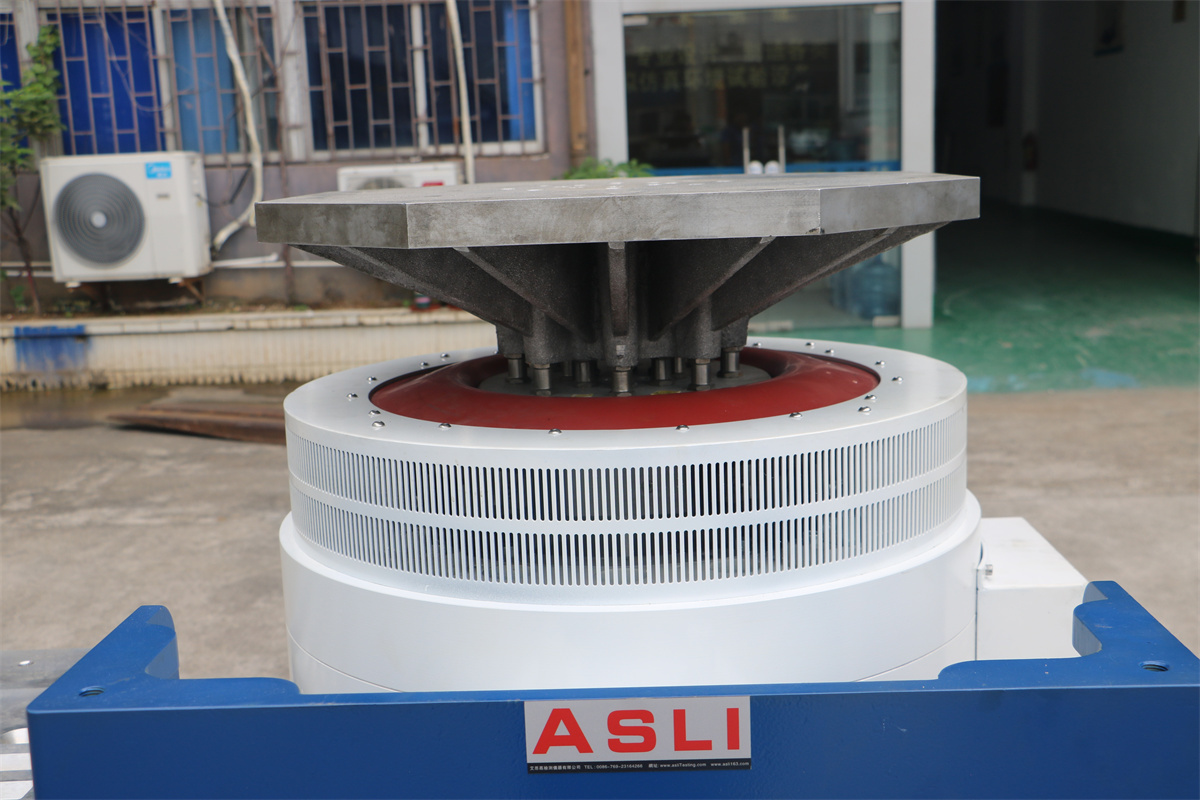

ISO16750 3-axis electrodynamics vibration testing machine front view Vibration testing machine side view showing trunnion isolation structure Close-up of vibration shaker moving coil and armature assembly
Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3–3500 3–3500 3–3000 3–3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated Displacement (p-p) mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving Coil (Kg) 6.5 12 14 30
Dimension of Moving Coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, horizontal, Vertical + horizontal vibration
Expander Options
For Vertical Expander

VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance according to perfect structure, high-quality material, and workmanship.

For Horizontal Expander
  • Within a small loading bench to realize higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
  • Horizontal bench and vibration bench are integral type, with perfect structure and convenience to install and adjust.
  • Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
  • Built-in oil pump, good structure and easy operating.
Vertical and horizontal expander accessories for vibration testing machine
Product Gallery

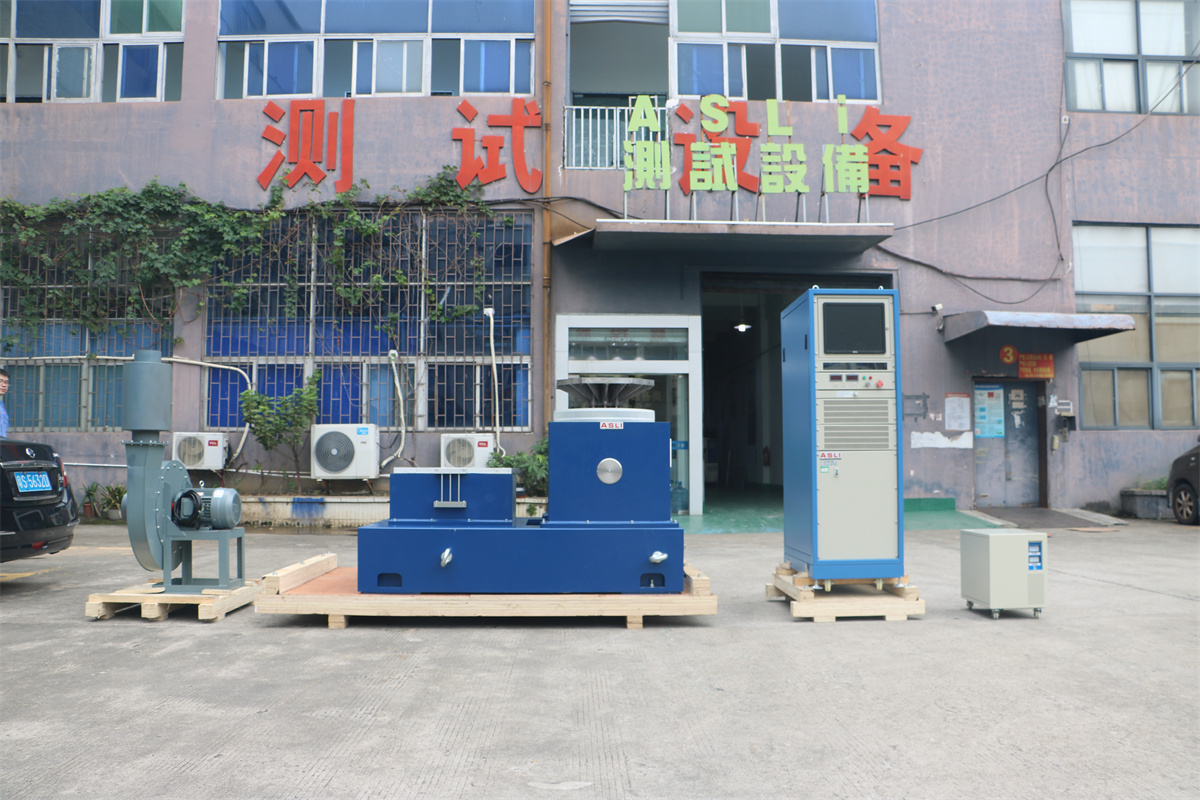

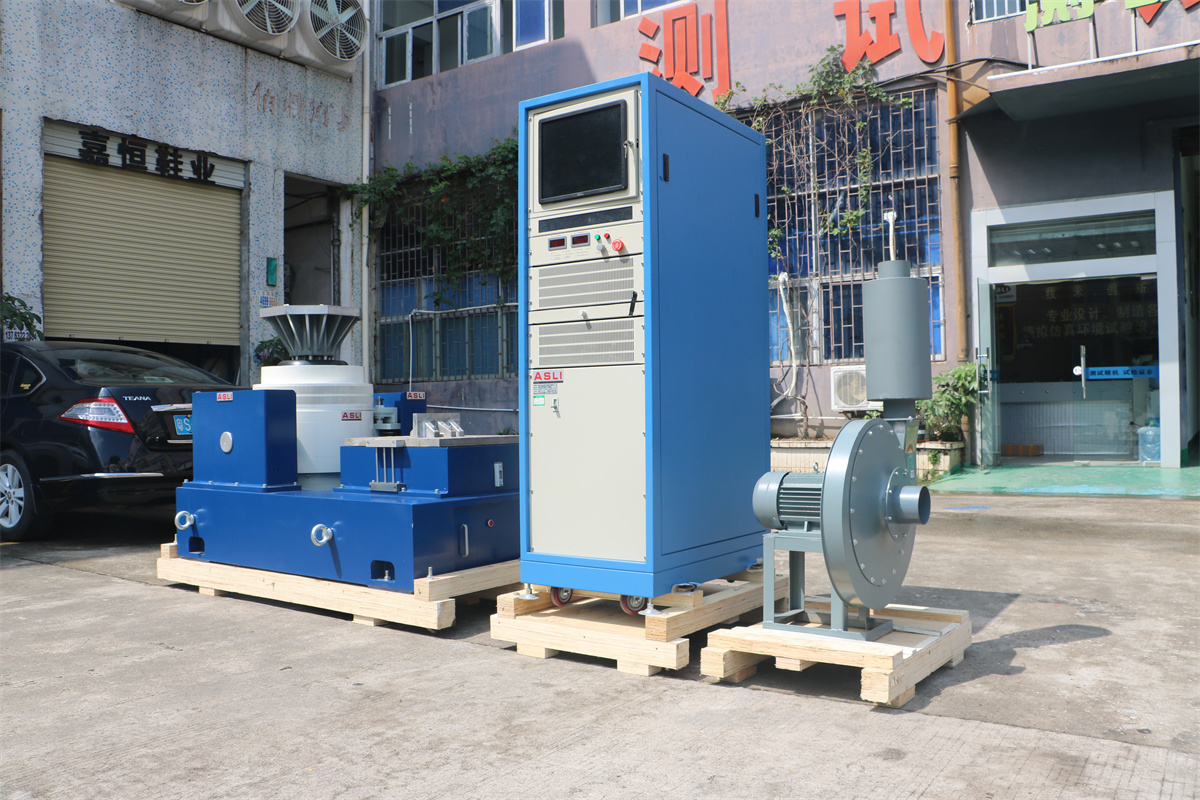

ISO16750 vibration testing machine installed in laboratory Vibration shaker system with power amplifier and controller Close-up of electrodynamic shaker armature and guidance system Vibration testing machine with horizontal slip table setup 3-axis vibration test system control panel and monitoring equipment Vibration shaker system with vertical expander and test fixture Complete electrodynamic vibration testing system overview
Packing & Delivery
Professional export packaging for vibration testing machine

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile

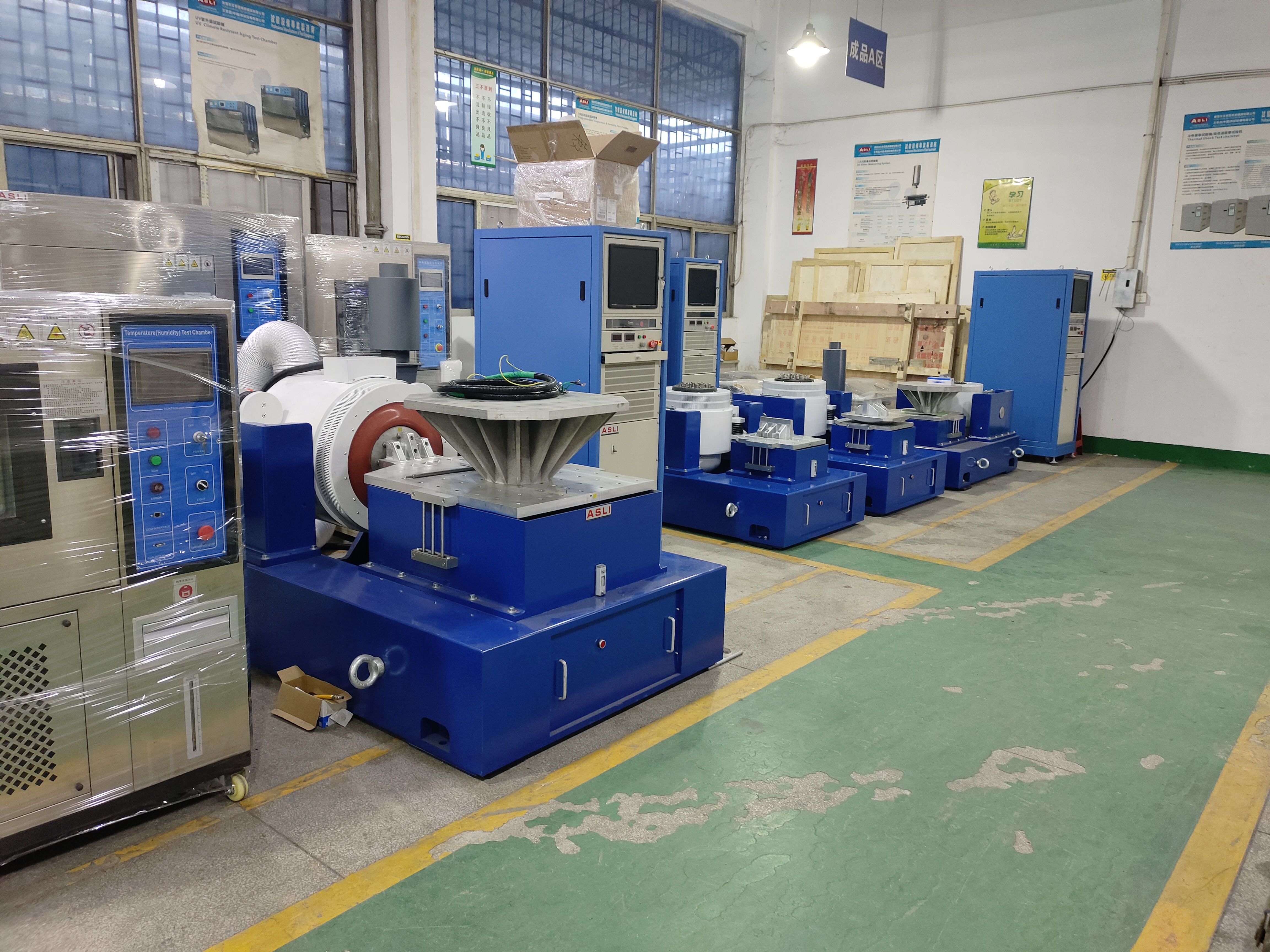

Company manufacturing facility and production workshop

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The ISO16750 Standard 3-axis Electrodynamics Vibration Testing Machine is our star product, and we have obtained CE certification for this machine.

Related Products
Mechanical shock tester equipment
Mechanical Shock Tester
Transportation simulator vibration tester
Transportation Simulator Vibration Tester
Drop test machine equipment
Drop Test Machine

Product Highlights

ISO16750 3-axis electrodynamic vibration tester with 5-2000Hz range, 51mm displacement, and 14kg moving coil. Features double-magnetic circuit and air suspension for precise sine, random, and shock testing. CE certified, ideal for automotive and aerospace applications.
