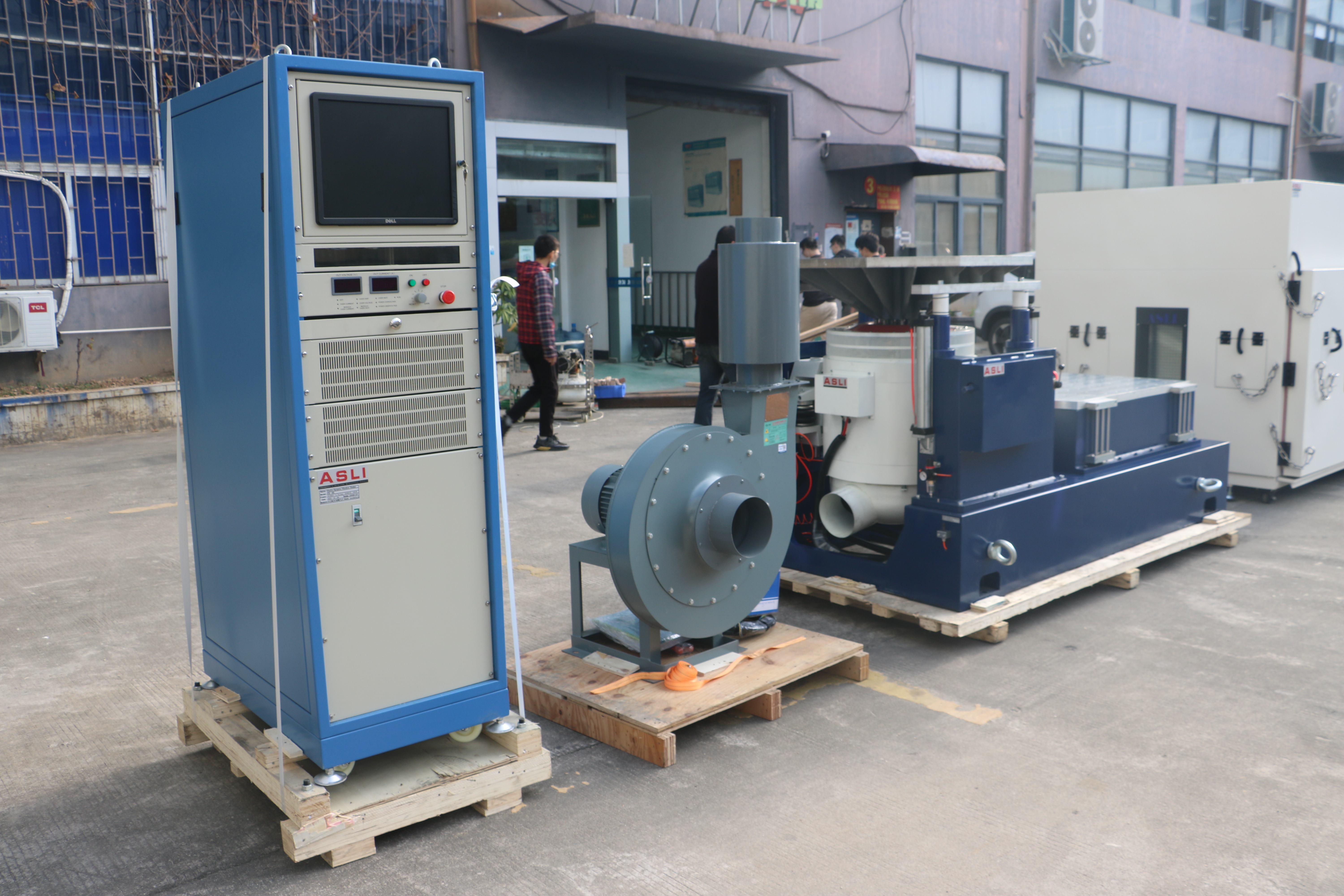

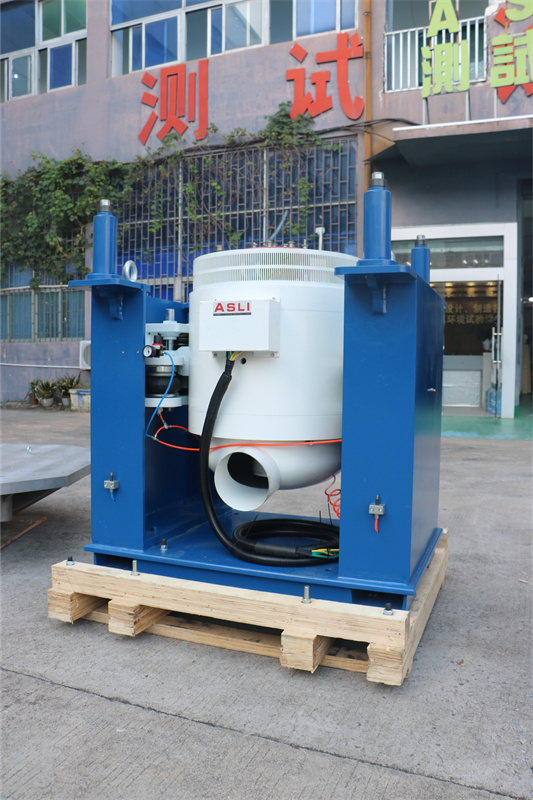

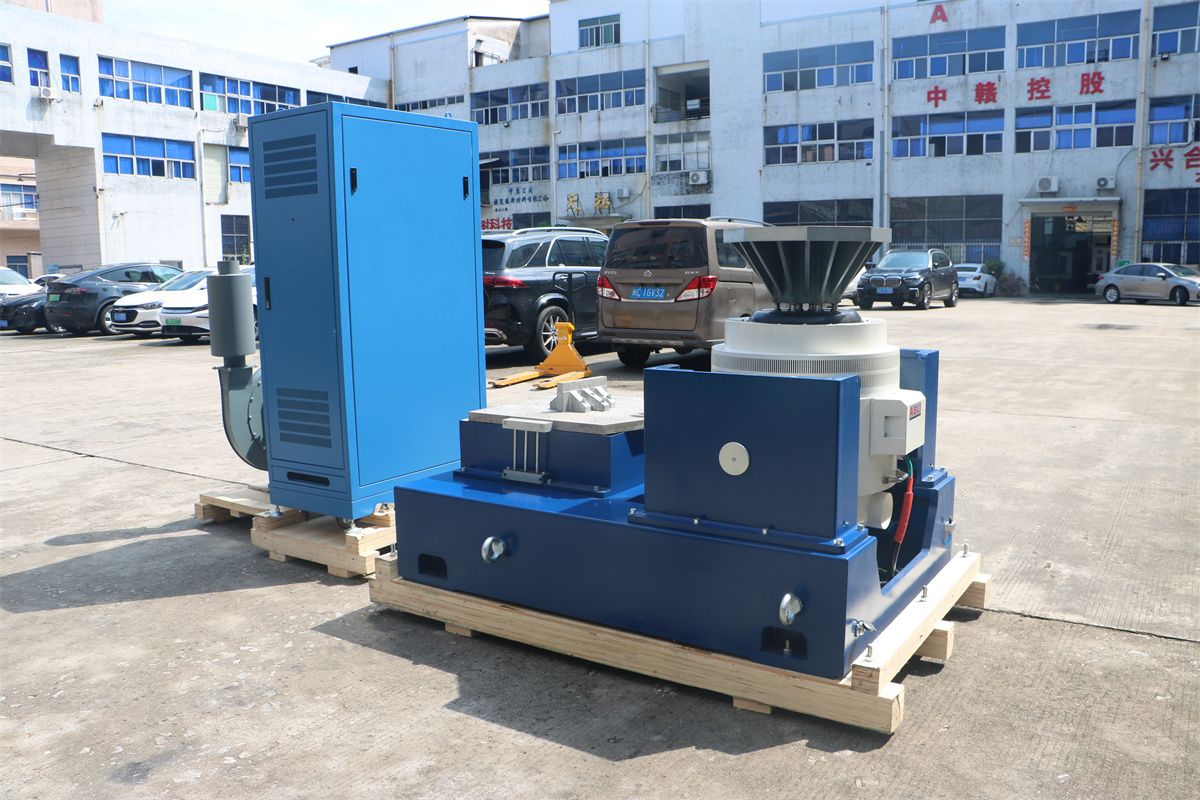

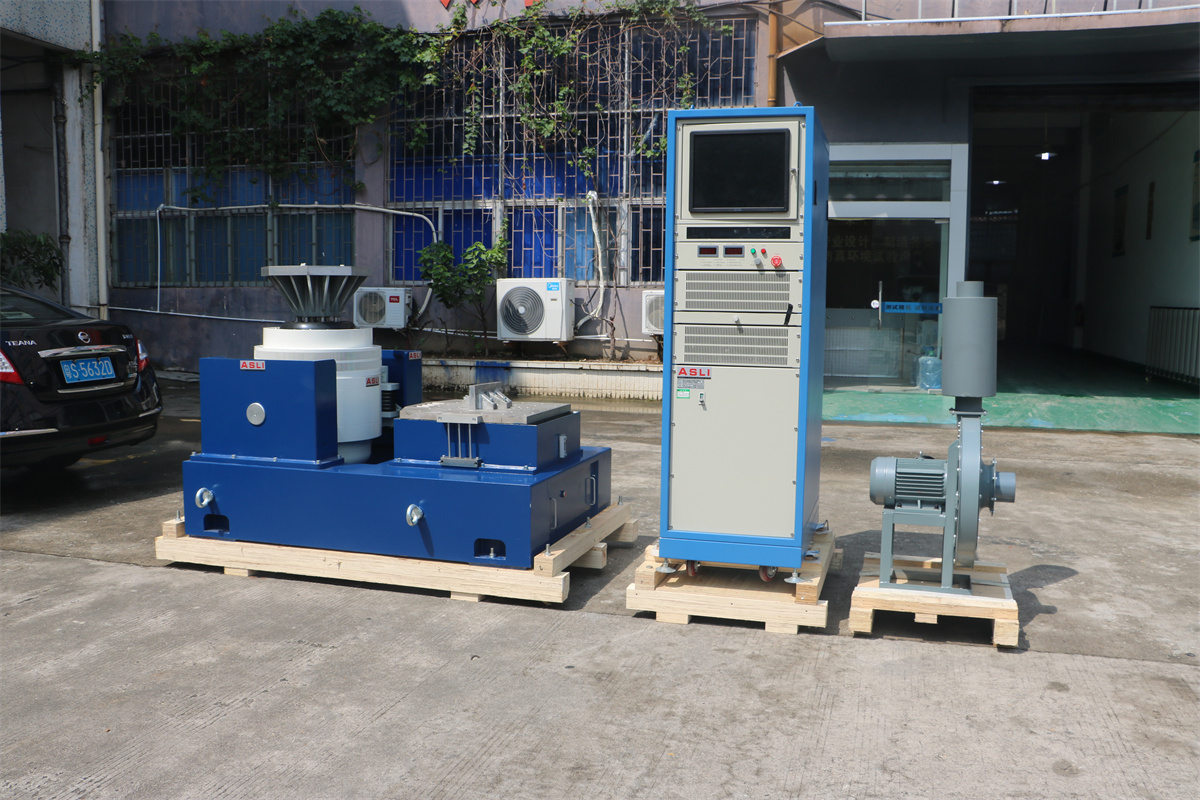

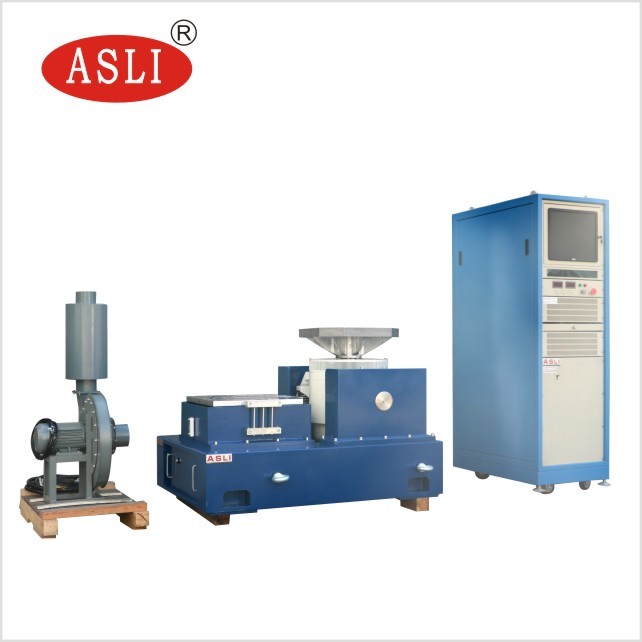

Electrodynamics Shaker Tester Dynamic Shaker
Product Details
| Frequency: | 3~3000hz | Vibration Direction: | Vertical+horizontal |
|---|---|---|---|
| Vibration Force: | 10KN | Displacement: | 100mm |
| Software Wave: | Sine, Random, Shock, RSTD | Language: | English, Chinese, Russian |
| Vertical Table Size: | 800*800mm | Standard: | IEC 60068, MIL-STD-810, ISTA |
| Highlight |
Electrodynamics Shaker vibration tester,Dynamic Shaker for lab testing,Electrodynamic Shaker with warranty |
||
Product Description
The Electrodynamics Shaker Tester Dynamic Shaker is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves critical testing needs across aerospace, communications, electronics, electrical, home appliances, and other industries. This test platform meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide — strong bearing capacity, excellent guidance performance, and high stability.
- Central load airbag with high static stiffness and low dynamic stiffness — strong bearing capacity and outstanding dynamic performance.
- Rapid self-examination diagnostics and chain protection — high safety and reliability.
- Airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.

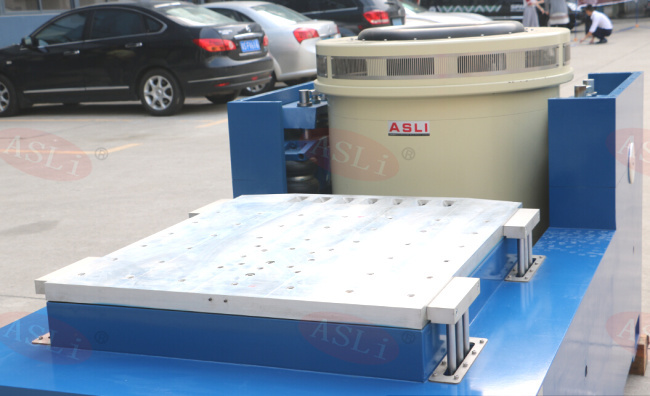

- Provides different horizontal and vertical expansion platforms for versatile testing setups.
- Compatible with all types of vibration controllers — simple and straightforward operation.
- Small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.

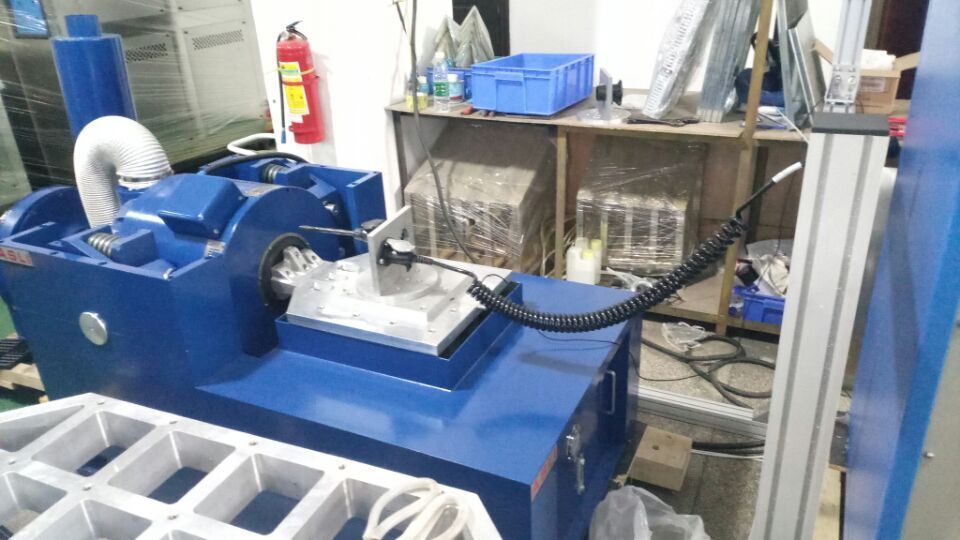

- Horizontal bench and vibration bench are an integral unit — perfect structure, convenient to install and adjust.
- Static pressure track with V-shape design — resistant to slope and bias loading.
- Built-in oil pump — good structure and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration tester is a star product, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DAP, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Electrodynamics Shaker Tester Dynamic Shaker, please feel free to contact us.
Product Highlights
Electrodynamics Shaker Tester delivers 10KN force, 3-3000Hz, vertical+horizontal vibration, 100mm displacement. Complies with IEC 60068, MIL-STD-810, ISTA. Features airbag damping, no special foundation needed, and supports sine, random, shock, RSTD testing. CE certified, 28 years of manufacturing expertise.
