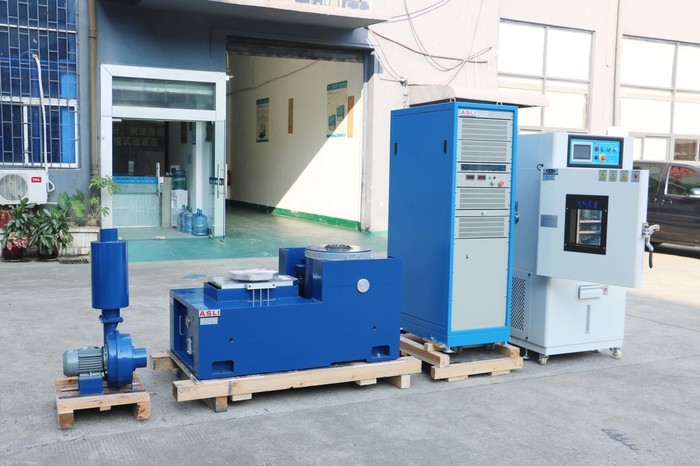

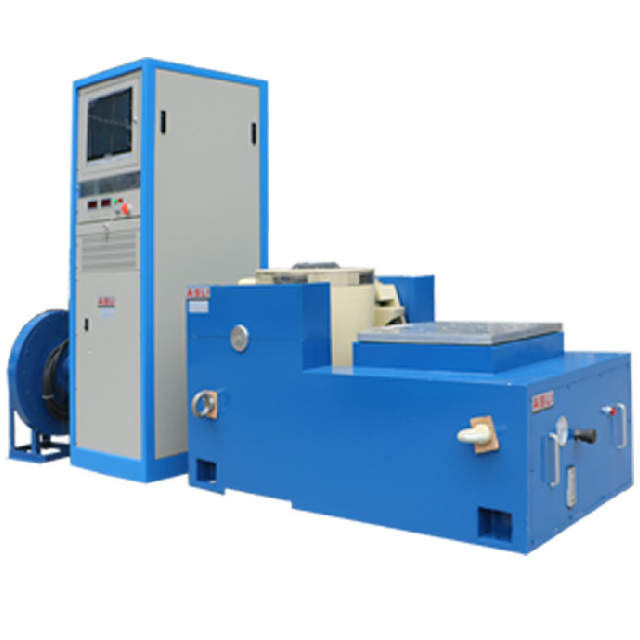

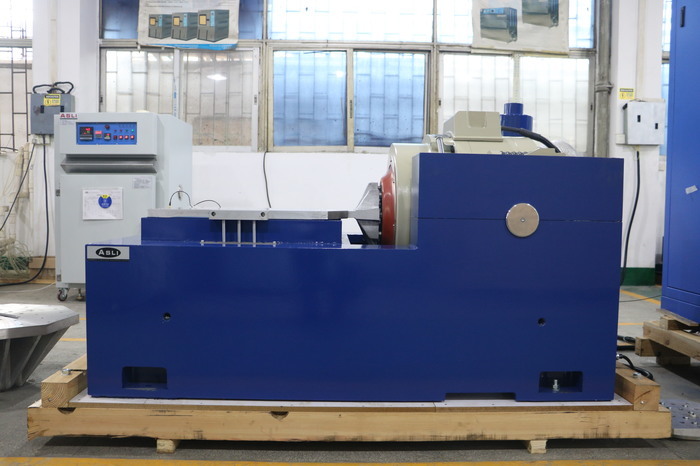

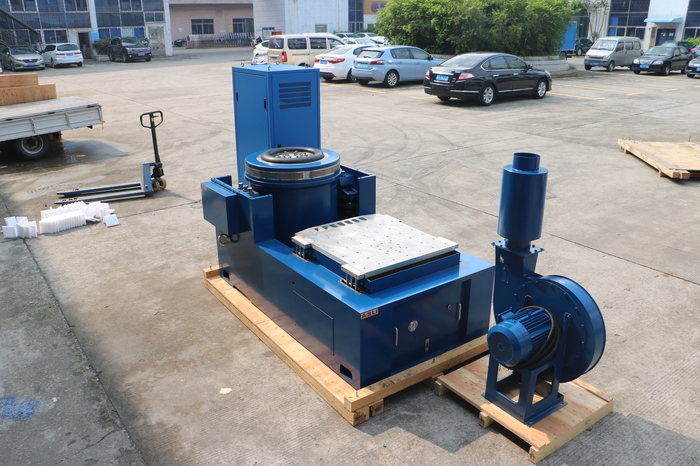

Professional High Frequency Vibration Shaker Table Test Machine
Product Details
| Vibration Force: | 10KN | Moving Coil Size: | Dia. 240mm |
|---|---|---|---|
| Vibration Direction: | Vertical+horizontal | Displacement: | 51mm |
| Rated Speed: | 1.8m/s | Frequency Range: | 3~3000hz |
| Color: | Blue+white | Application: | Battery, Package, Pcb, Auto Parts |
| Highlight |
high frequency vibration shaker table,professional vibration test machine,random vibration testing equipment |
||
Product Description
The Professional High Frequency Vibration Shaker Table Test Machine is engineered for precise simulation of vibration environments in laboratory and industrial testing applications. It delivers reliable performance across a broad frequency range, making it suitable for product qualification, reliability testing, and research and development.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
- Client is first. We are trying to bring maximum profit to our clients and offer best quality products.
- Credibility is the most important.
- Quality control is our life.
- Great sense of responsibility.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vertical mechanical vibration testing machine is one of our star products, and we have obtained CE certification for this machine.
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you have any questions or needs regarding the Professional High Frequency Vibration Shaker Table Test Machine, please do not hesitate to send your inquiry.
