Electrodynamic Shaker with 1000m/s2 Max Acceleration, 1.6m/s Max Speed, and 3-3500Hz Frequency Range Vibration Test Machine

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Max. Speed: 1.6m/s Voltage: 380 V
Sweep-frequency Times: 1 To 32767 Power Of Cooling Fan: 3kw
Protection Class: Ip56 Sweep-frequency Mode: Linear, Logarithmic, Sweep Back And Forth
Power: 45kw Max. Acceleration: 1000m/s2 (non Load)
Weight Of Moving Coil: 3.5 Kg Rated Sine Force: 3000 N
Rated Random Force: 3000 N Frequency Range: 3-3500 Hz
Rated Acceleration: 1000 M/s2 Rated Displacement: 25 Mm
Max. Loading: 100 Kg
Highlight

1000m/s2 Max Acceleration Vibration Shaker System

,

1.6m/s Max Speed Electrodynamic Shaker

,

3-3500Hz Frequency Range Vibration Test Machine

Product Description

Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
ES-1201200001200003–220010001.851110090Φ500
Technical Parameters of Horizontal Expander
Technical parameters table for horizontal expander of electrodynamic vibration shaker system
Technical Parameters of Vertical Expander
Technical parameters table for vertical expander of electrodynamic vibration shaker system
Vertical expander component of electrodynamic vibration shaker system Vertical expander assembly detail for vibration testing equipment Vertical expander mounting configuration for electrodynamic shaker
Product Pictures

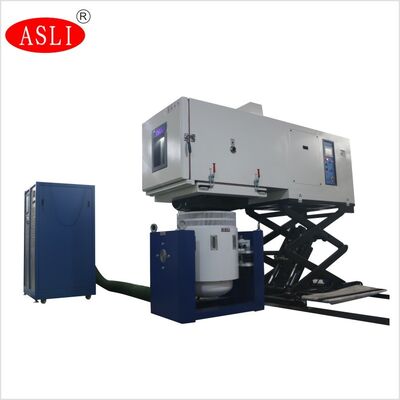

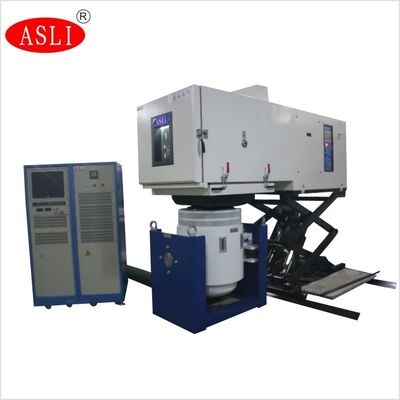

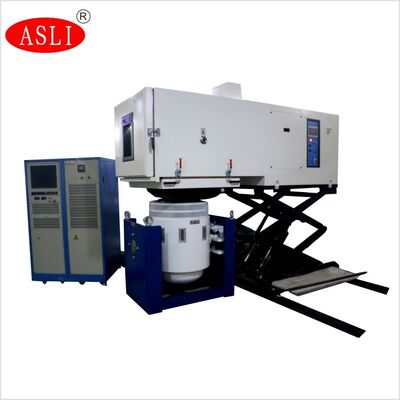

Climatic test chamber with electronic dynamic shaker vibrator — front view Electrodynamic vibration shaker system with climatic test chamber Close-up of moving coil and armature assembly on vibration shaker Complete climatic test chamber and shaker vibrator setup in factory
Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

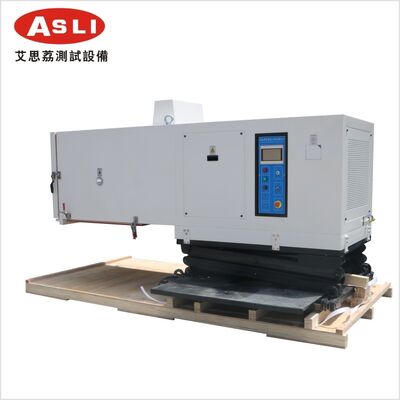

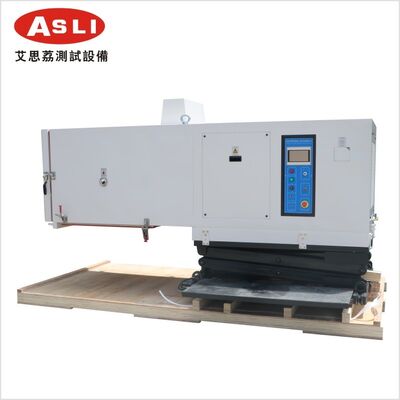

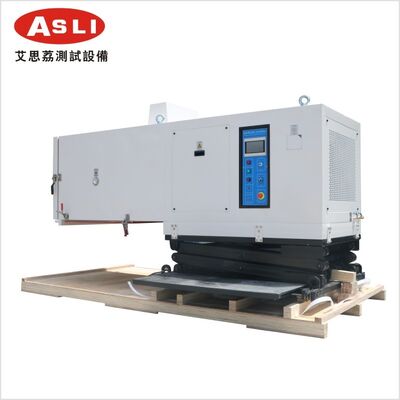

Export plywood case packaging for vibration shaker system with foam protection
Our Services
Our Service
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photo before shipment.
  4. Reply within 48 hours and provide solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period 12 months.
Our Concept
  1. Client is first. We are trying to bring maximum profit to our clients and offer best quality products.
  2. Credibility is the most important.
  3. Quality control is our life.
  4. Great sense of responsibility.
Company Information

Short introduction about ASLi factory: We are a long history testing equipment manufacturer. In the past 28 years, we devoted to simulation environmental testing equipment and mechanical vibration and shock testing machine. Electrodynamic Shaker Price / Shake Vibration Test Machine is our star product, and we have obtained the CE certification for this machine.

ASLi factory production floor for environmental and vibration testing equipment ASLi CE certification for electrodynamic shaker vibration test machine
FAQ
Q1. What is your terms of packing?

A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CIF.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

ASLi quality testing and inspection process before shipment

Product Highlights

Climatic test chamber with electronic dynamic shaker vibrator. Max speed 1.6m/s, acceleration 1000m/s2, 45kw, 380V, IP56. CE certified, 28 years factory, OEM/ODM, 1-year warranty, export plywood case.
