High Accuracy Electrodynamic Vibrator Shaker with 1.6m/s Max Speed and Vertical+Horizontal Vibration for Lab Testing

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Protection Class: IP55 Power: 20KW, AC380V
Voltage: 380 V Max. Speed: 1.6m/s
Vibration Direction: Vertical+horizontal Vibration Weight Of Moving Coil: 3.5 Kg
Accuracy: ±5% Power Of Cooling Fan: 3kw
Rated Sine Force: 3000 N Rated Random Force: 3000 N
Frequency Range: 3-3500 Hz Rated Acceleration: 1000 M/s2
Rated Displacement: 25 Mm Max. Loading: 100 Kg
Dimension Of Moving Coil: Φ150 Mm
Highlight

High Accuracy Electrodynamic Vibrator Shaker

,

1.6m/s Max Speed Vibration Shaker System

,

Vertical+Horizontal Vibration Electronic Vibration Tester

Product Description

Product Overview

The Electrodynamic Vibrator Shaker (Electronic Type Vibration Tester) is a high-performance testing system engineered for precise simulation of vibration environments. It is widely used in aerospace, automotive, electronics, and packaging industries for reliability testing, fatigue analysis, and quality assurance.

Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
ES-1201200001200003–220010001.851110090Φ500
Expander Specifications
Horizontal Expander — Technical Parameters
Technical parameters table for the horizontal expander of the electrodynamic vibrator shaker
Vertical Expander — Technical Parameters
Technical parameters table for the vertical expander of the electrodynamic vibrator shaker
Product Pictures

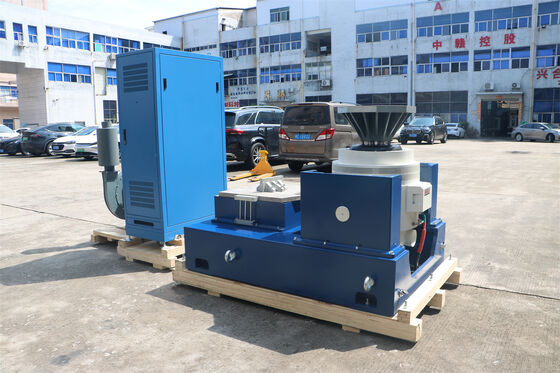

Electrodynamic vibrator shaker system front view

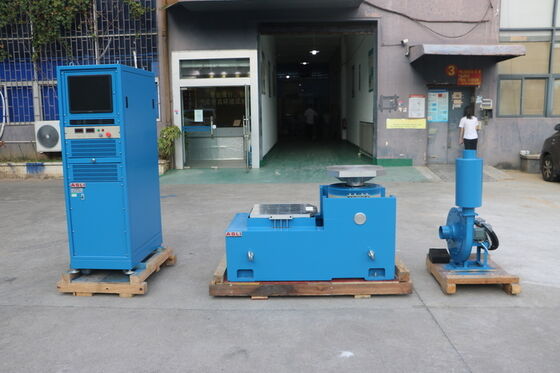

Electrodynamic vibrator shaker control unit and amplifier

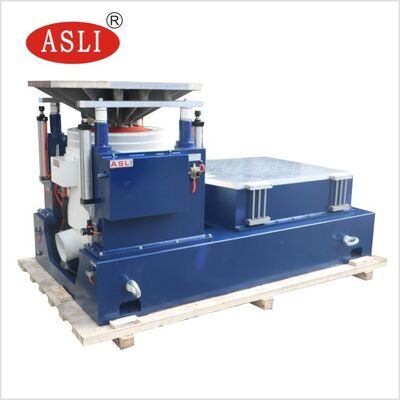

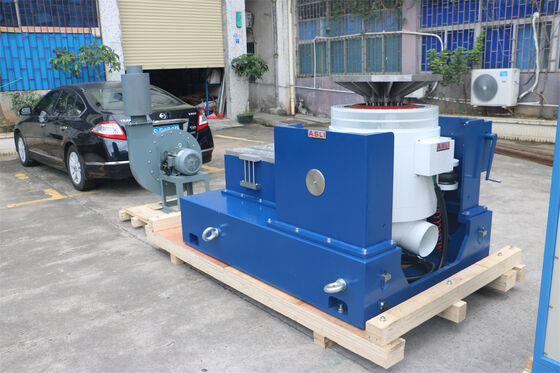

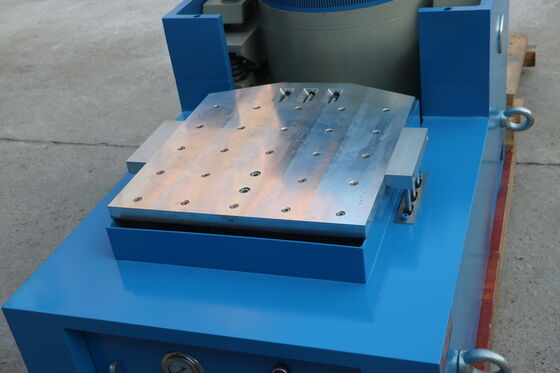

Electrodynamic vibration tester with horizontal expander setup

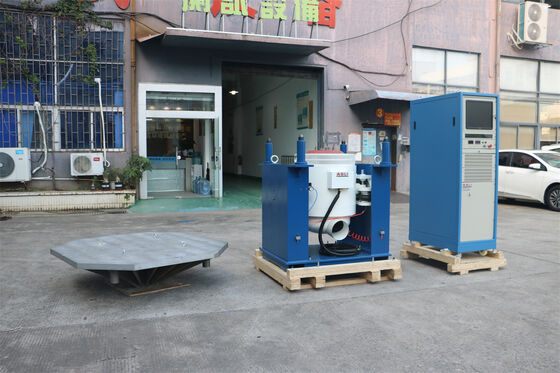

Electrodynamic vibration tester with vertical expander setup
Packaging & Shipping

Package: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Electrodynamic vibrator shaker packed in standard export plywood case with foam protection
Our Services
Our Service
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photo before shipment.
  4. Reply within 48 hours and provide solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period: 12 months.
Our Concept
  1. Client is first. We are trying to bring maximum profit to our clients and offer best quality products.
  2. Credibility is the most important.
  3. Quality control is our life.
  4. Great sense of responsibility.
Company Information

Short introduction about ASLi factory: We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vertical mechanical vibration testing machine is one of our star products, and we have obtained the CE certification for this machine.

ASLi factory production facility for environmental and vibration testing equipment
FAQ
Q1. What is your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CIF.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Related Products

If you need more information about the Electrodynamic Vibrator Shaker / Electronic Type Vibration Tester, please don't hesitate to send your inquiry.

Product Highlights

Electrodynamic vibration shaker with 3-3500Hz range, 1.6m/s max speed, ±5% accuracy, IP55 protection, 20KW power. Vertical+horizontal vibration for auto parts and battery testing. CE certified, OEM customization, 1-year warranty. Export plywood packaging.
