Standard Vibrating Table With Adjustable Frequency

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Vibration Direction: Vertical + Horizontal Acceleration: 100g
Moving Coil Size: Dia. 240mm Power: 20KW
Vibration Force: 10KN Accuracy: +/-10%
Voltage: 380 V Displacement: 51mm
Frequency Range: 3-3500 Hz Rated Acceleration: 1000 M/s2
Rated Speed: 1.6 M/s Max Loading: 180 Kg
Moving Coil Weight: 6.5 Kg Protection Class: IP55
Table Size: Customized
Highlight

Standard vibrating table adjustable frequency

,

Vibration shaker system with warranty

,

Adjustable frequency vibrating table

Product Description

Product Description

The Standard Vibrating Table With Adjustable Frequency incorporates advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. This system is capable of completing X, Y, and Z three-axis sinusoidal vibration tests as well as broadband random vibration tests. It also performs classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. It is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.

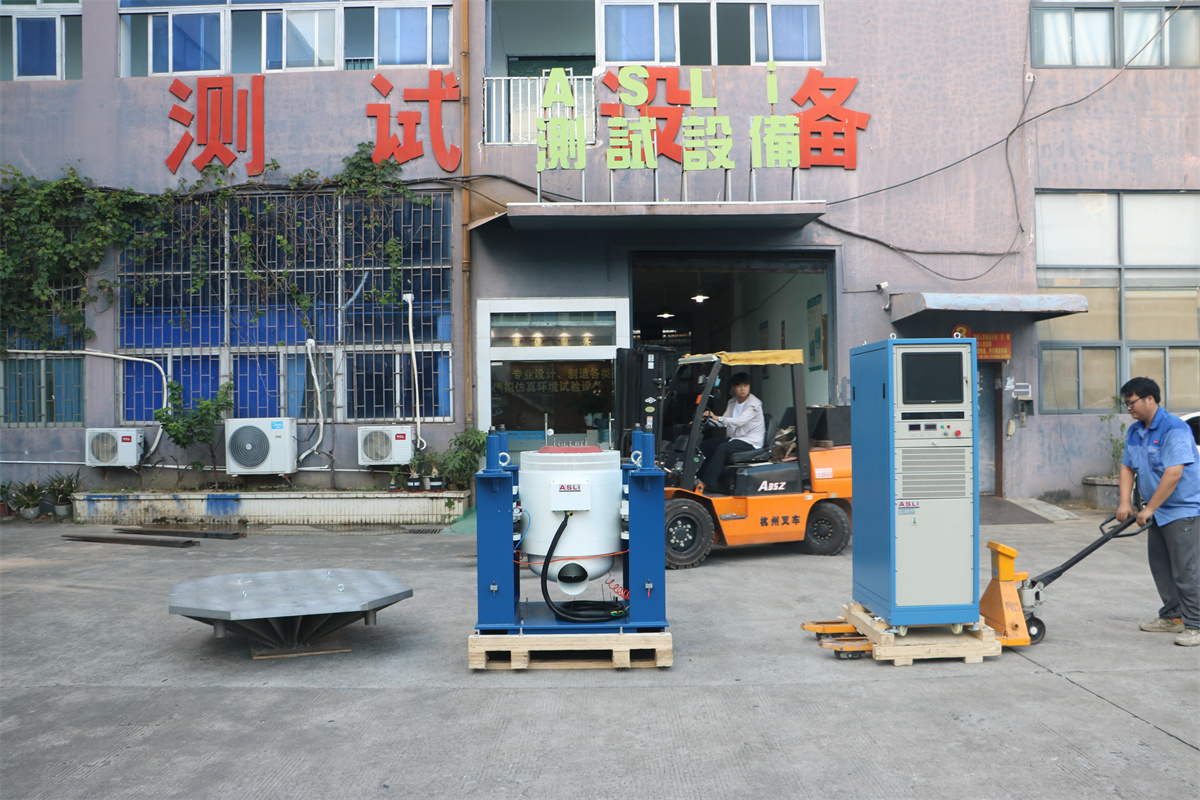

Standard vibrating table with adjustable frequency showing the main vibration testing unit and control system

Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3–3500 3–3500 3–3000 3–3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated Displacement (p-p) mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving Coil (Kg) 6.5 12 14 30
Dimension of Moving Coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, horizontal, Vertical + horizontal vibration

Expander Options
For Vertical Expander

VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.

For Horizontal Expander
  • Within a small loading bench, it realizes higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
  • The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
  • Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
  • Built-in oil pump with good structure and easy operation.
Vertical and horizontal expander accessories for the vibrating table system

Pictures for Your Reference

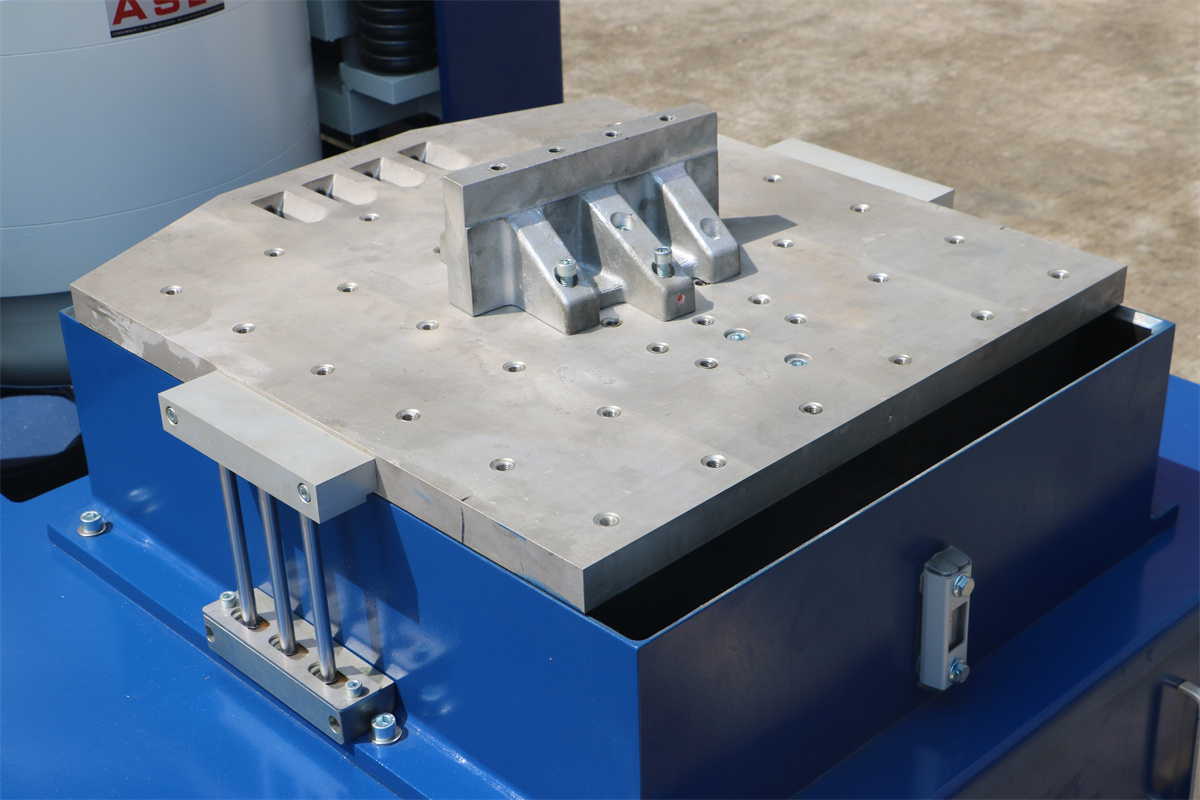

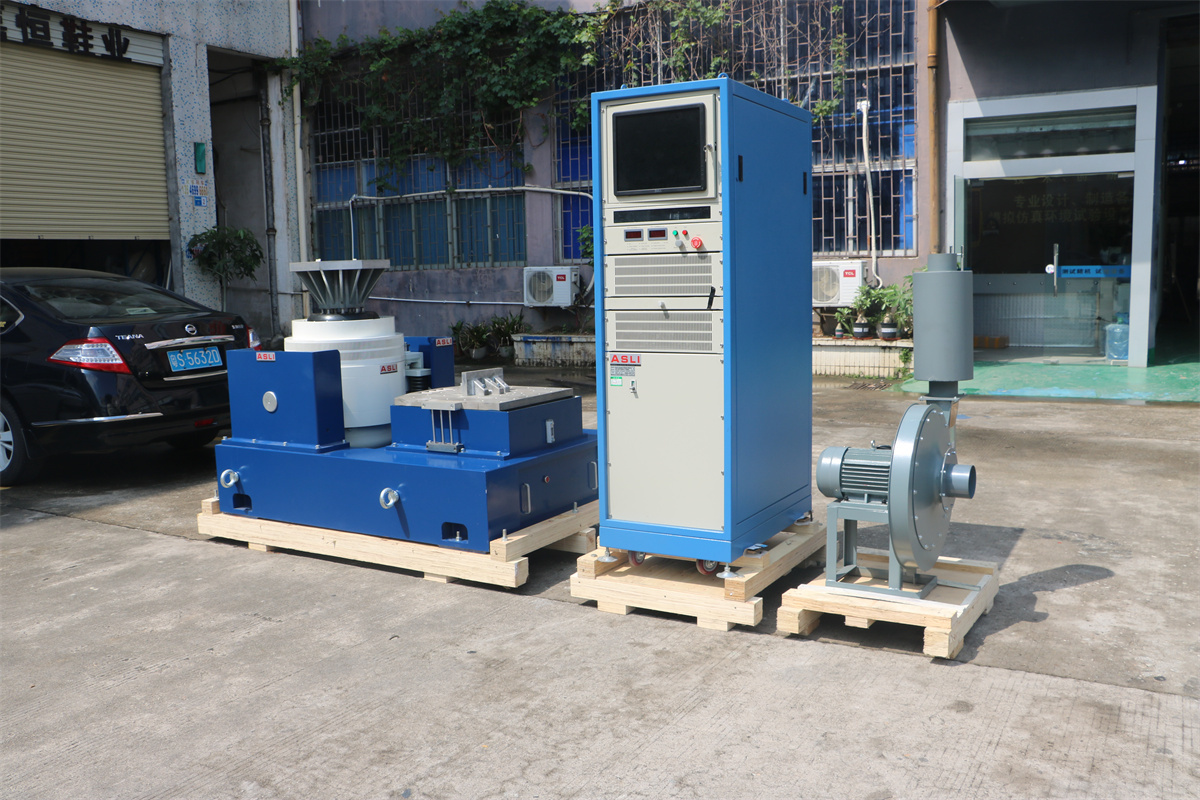

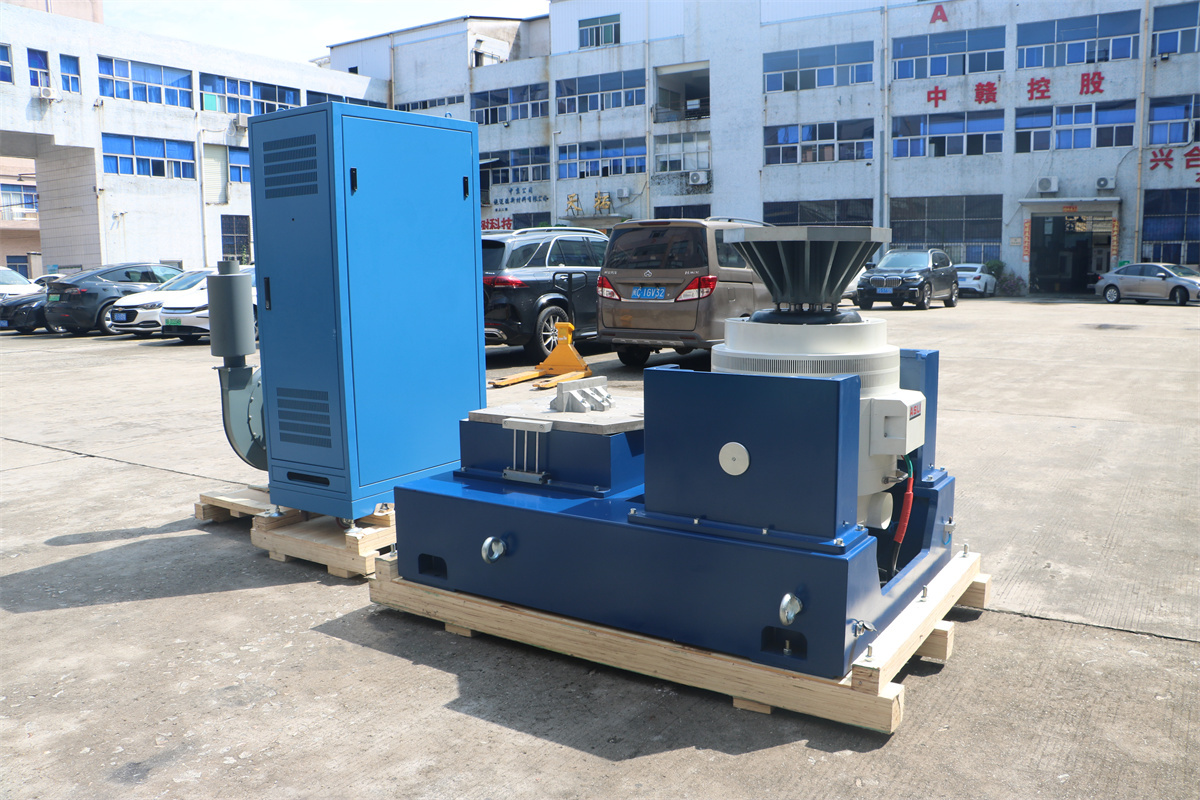

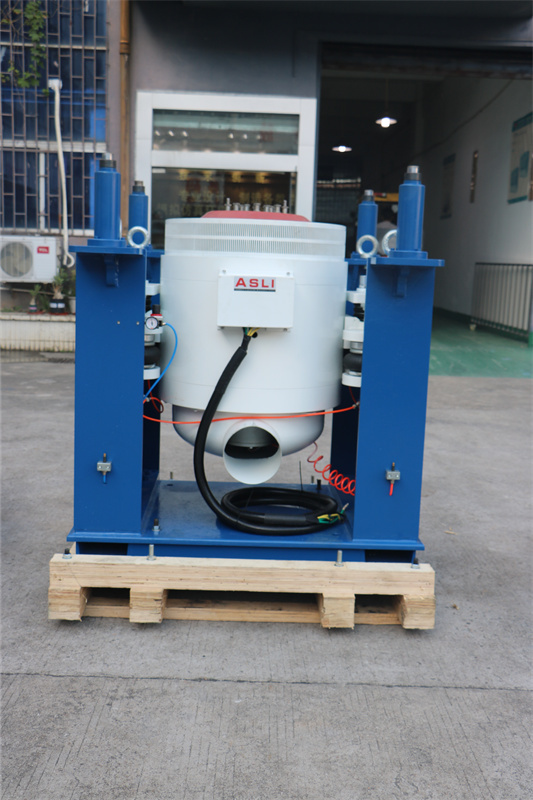

Vibrating table system front view with control cabinet Close-up of the vibrating table moving coil and armature assembly Vibrating table setup with horizontal expander and test fixture Rear view of the vibration testing system showing power amplifier and cooling components Vibrating table during operation with test specimen mounted Complete vibration testing system with digital controller and accessories

Packing & Delivery
Export plywood case packaging for the vibrating table system

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.


Company Profile
Company manufacturing facility and production workshop
Mechanical Shock Tester
Mechanical shock tester machine for environmental simulation testing
Transportation Simulator Vibration Tester
Transportation simulator vibration tester for package and carton testing
Drop Test Machine

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.


Frequently Asked Questions
Q1. What are your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF, DAP, DDU, DDP.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


If you need more information about the Standard Vibrating Table With Adjustable Frequency, please don't hesitate to contact us.

Product Highlights

Standard Vibrating Table with adjustable frequency delivers 10KN force, 100g acceleration, and 51mm displacement for X, Y, Z sinusoidal and random vibration tests. Compliant with ISO 16750-03 and IEC 60068-2, IP55 rated, 20KW, 380V. OEM/ODM and custom table sizes available. 1-year warranty.
