High Frequency Vibration Shaker Table
Product Details
| Protection Class: | IP55 | Vibration Direction: | Vertical + Horizontal |
|---|---|---|---|
| Moving Coil Size: | Dia. 240mm | Displacement: | 51mm |
| Power: | 20KW | Voltage: | 380 V |
| Vibration Force: | 10KN | Acceleration: | 100g |
| Rated Sine Force: | 6000| 6000| 10000| 20000 | Frequency Range: | 3-3500| 3-3500| 3-3000| 3-3000 |
| Rated Acceleration: | 1000| 1000| 1000| 1000 | Rated Speed: | 1.6| 1.6| 1.8| 1.8 |
| Max. Loading: | 180| 250| 270| 300 | Moving Coil Weight: | 6.5| 12| 14| 30 |
| Dimension Of Moving Coil: | Φ230| Φ230| Φ240| Φ320 | ||
| Highlight |
High Frequency Vibration Shaker Table,Vibration Shaker System with warranty,Industrial Vibration Shaker Table |
||
Product Description

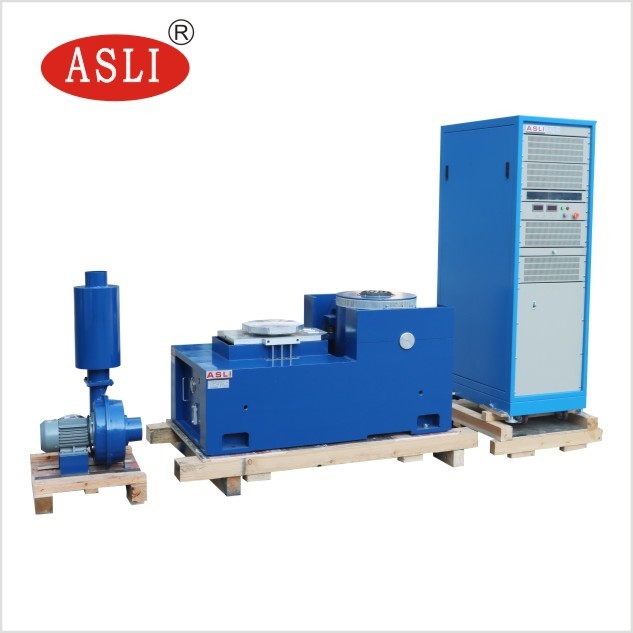

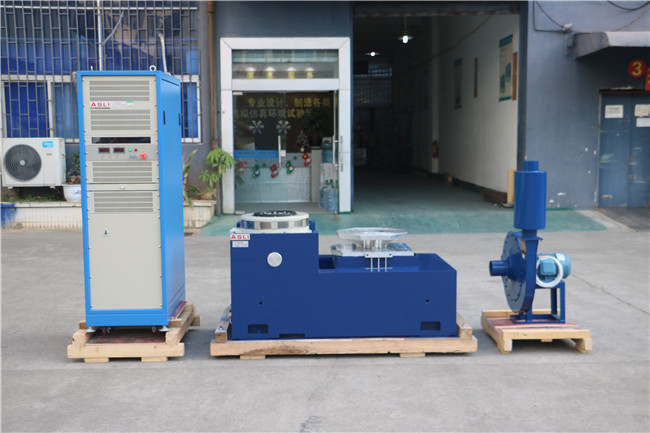

The High Frequency Vibration Shaker Table incorporates advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of performing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. This equipment is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | ES-6 | ES-6a | ES-10 | ES-20 |
|---|---|---|---|---|
| Rated Sine Force (N) | 6000 | 6000 | 10000 | 20000 |
| Frequency Range (Hz) | 3–3500 | 3–3500 | 3–3000 | 3–3000 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.6 | 1.6 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 25 | 51 | 51 | 51 |
| Max. Loading (Kg) | 180 | 250 | 270 | 300 |
| Moving Coil (Kg) | 6.5 | 12 | 14 | 30 |
| Dimension of Moving Coil (mm) | Φ230 | Φ230 | Φ240 | Φ320 |
| Vibration Direction | Vertical, horizontal, Vertical + horizontal vibration | |||

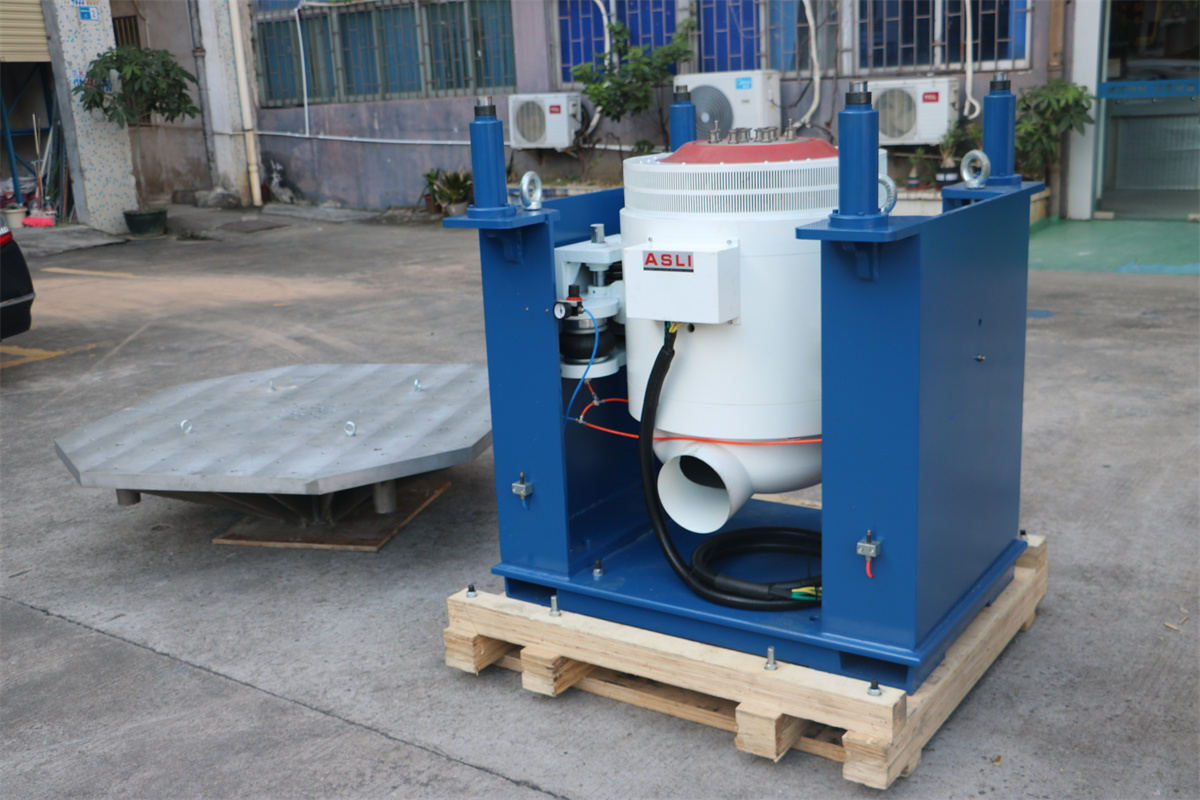

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.
- Within a small loading bench, higher acceleration and working frequency are realized to improve the loading capacity and performance of the whole machine bench.

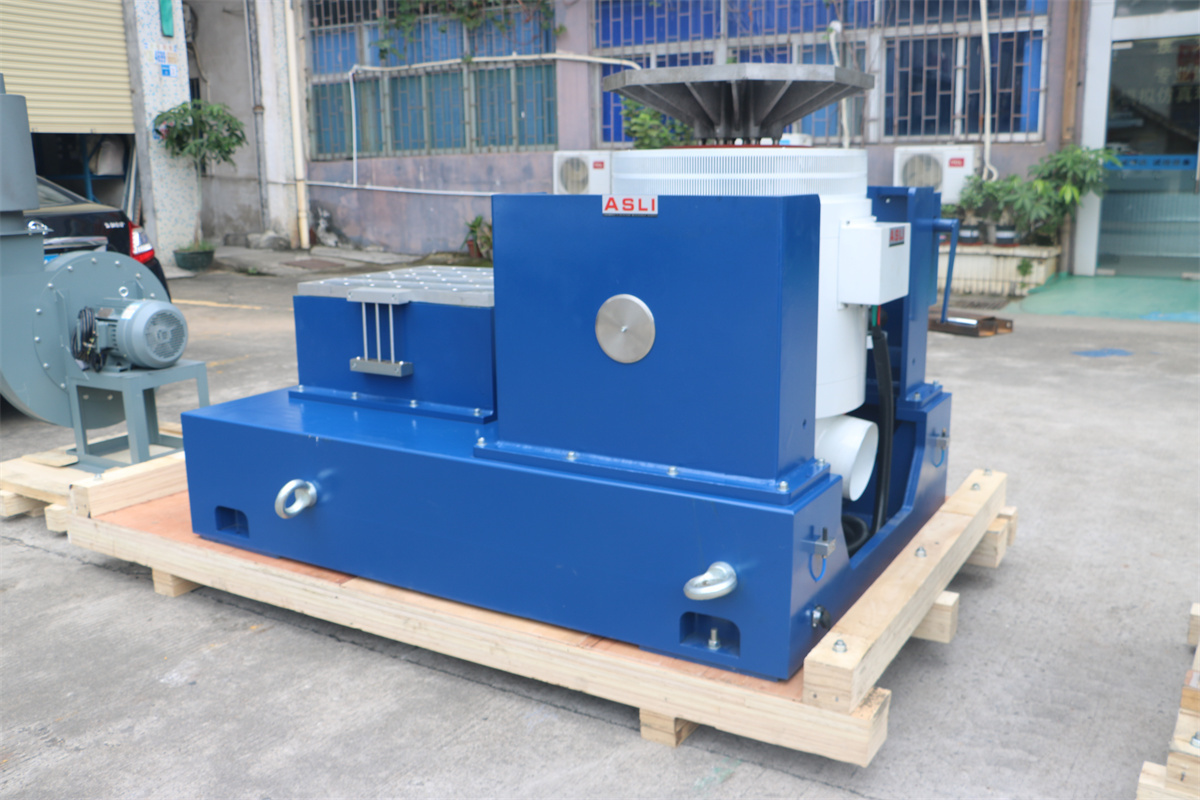

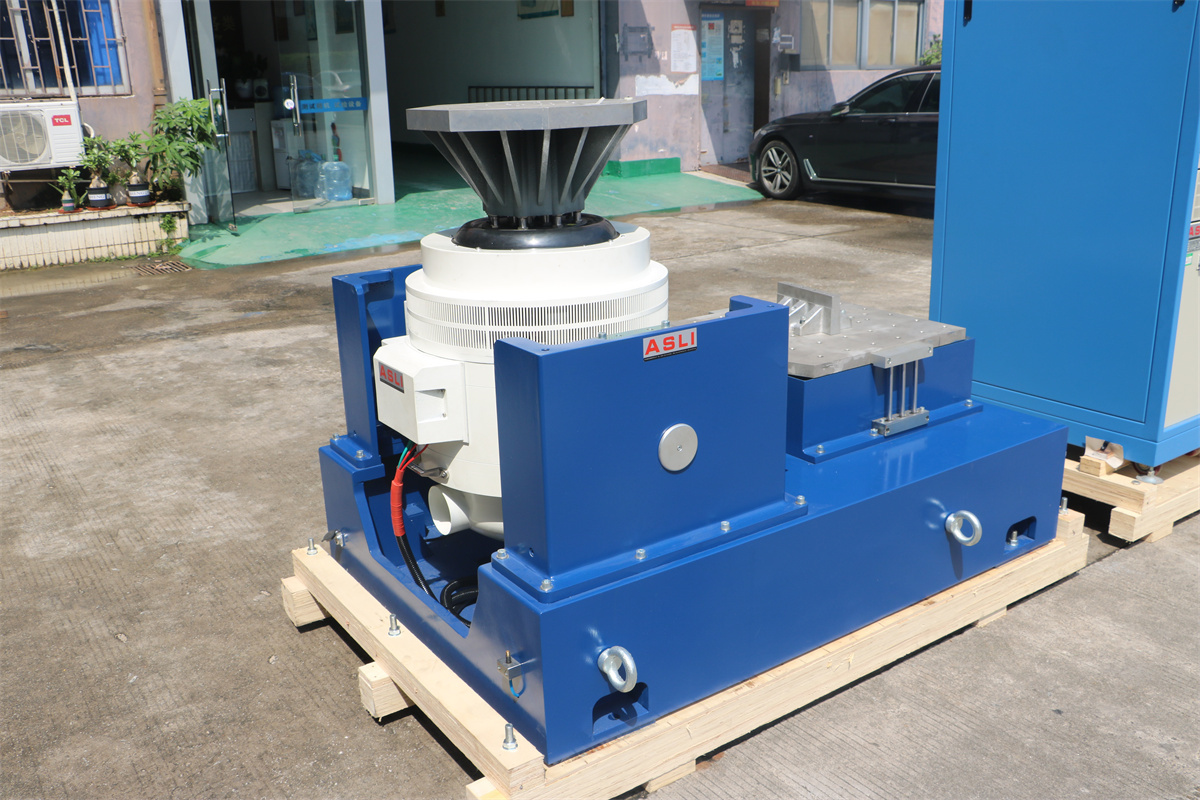

- The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump with good structure and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

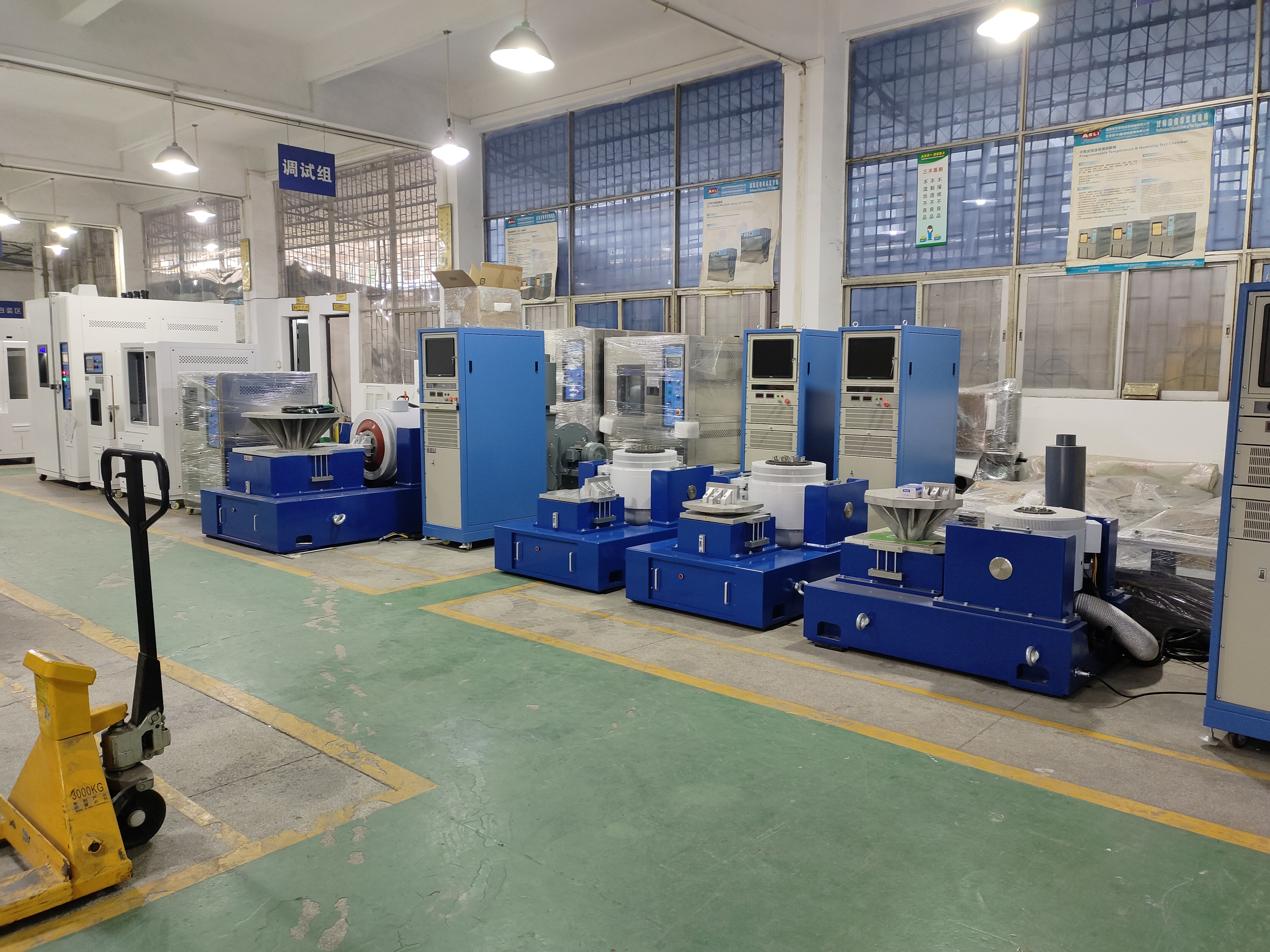

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.
Our drop test machines are designed for precise and repeatable free-fall drop testing of packaged products, ensuring compliance with international standards.
A: PP film first, and then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DAP, DDU, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Product Highlights
High Frequency Vibration Shaker Table delivers 10KN force, 100g acceleration, and 3-3000Hz range for X, Y, Z three-axis sinusoidal and random vibration testing. Compliant with ISO 16750-03 and IEC 60068-2, IP55 protected, with OEM/ODM customization and 1-year warranty.

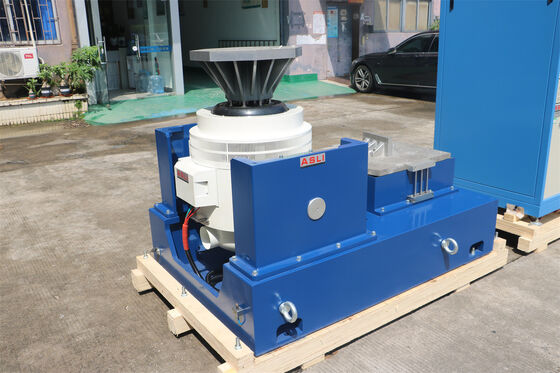

Use Friendly High Frequency Dynamic Vibration Shaker System CE Certificated
