3 Axis Large Force High Frequency Vibration Test System With 8 Channel Vibration Controller

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Displacement: 25mm Vibration Direction: Horizontal Vertical
Accuracy: +/-10% Acceleration: 100g
Voltage: 220 V, 380 V Max Load: 120kg
Force: 6KN Power: 20KW, Electronic
Frequency Range: 3-3500 Hz Rated Speed: 1.6 M/s
Moving Coil Weight: 3.5 Kg Moving Coil Dimension: Φ150 Mm
Protection Class: IP55 Rated Sine Force: 3000 N
Rated Random Force: 3000 N
Highlight

3 axis vibration test system

,

large force vibration shaker

,

high frequency vibration controller

Product Description

Product Overview

The 3 Axis Large Force High Frequency Vibration Test System with 8 Channel Vibration Controller is engineered for demanding vibration testing applications. It complies with major international design standards including MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, and BS, ensuring reliable and repeatable test results across a wide range of industries.

Applications

This vibration testing system is widely used in the following industries:

  • Automotive
  • Electronics
  • Aerospace
  • Vessel and marine
  • Telecommunications
  • Optoelectronics
  • Instrumentation
Vibration Test Shaker Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
ES-1201200001200003–220010001.851110090Φ500
ES-1601600001600003–210010001.8511500150Φ600
ES-2002000002000003–200010001.8512500200Φ650
ES-3503500003500003–170010001.8514500300Φ870
Product Features
  1. Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  2. Perfect performance on amplitude variation.
  3. High efficiency on D Class power conversion, 3-Sigma peak current, providing optimized power consumption and minimum harmonic distortion.
  4. Rapid self-test diagnostics and chain safeguard, ensuring high safety and reliability.
  5. Air gasbag isolation damping device realizes the vibration table with no need for special foundation. Perfect reappearance of vibration waveform and reduction of vibration transmission.
  6. Different application on the vertical and horizontal tables.
  7. Simple operation for the controller.
Product Images

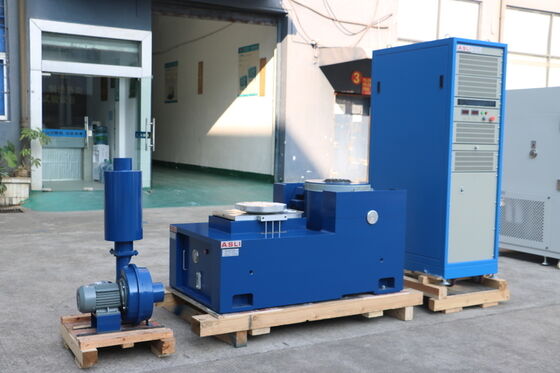

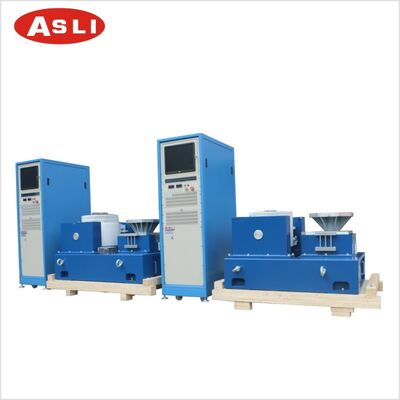

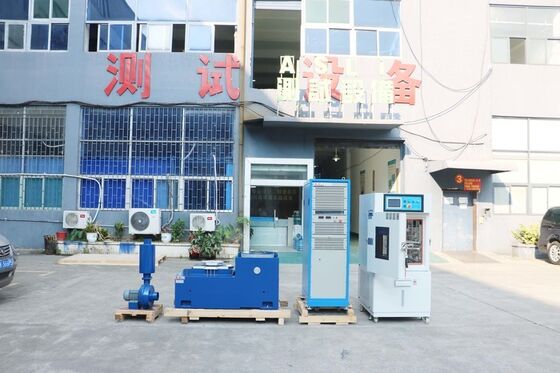

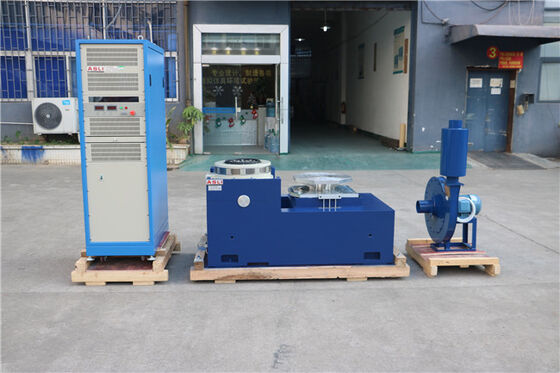

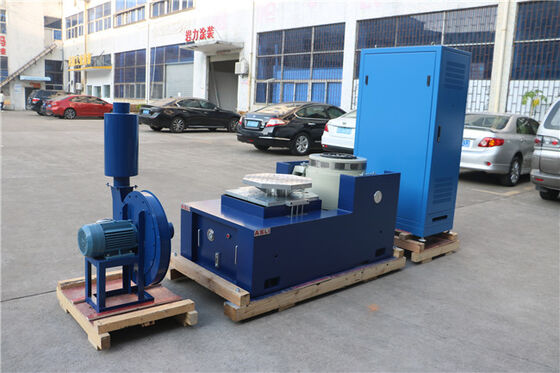

3 Axis large force high frequency vibration test system with 8 channel vibration controller
Horizontal Expander Table
Horizontal expander table for vibration test shaker system
Certificates
Quality certificate for vibration test system
Compliance certificate for vibration test equipment

Any doubt or needs about the 3 Axis Large Force High Frequency Vibration Test System with 8 Channel Vibration Controller, please don't hesitate to contact us.

Product Highlights

3-axis high-frequency vibration test system with 8-channel controller delivers 6KN force, 100g acceleration, 25mm displacement and 120kg max load. Meets MIL-STD, ISO, ASTM, IEC standards. IP55 rated, OEM/ODM/OBM customization, 1-year warranty.
