Electromagnetic Vibration Table for Vibration Test

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Vibration Force: 10KN Moving Coil Size: Dia. 240mm
Power: 20KW Displacement: 51mm
Voltage: 380 V Protection Class: IP55
Vibration Direction: Vertical + Horizontal Acceleration: 100g
Frequency Range: 3-3500Hz Rated Acceleration: 1000m/s2
Rated Speed: 1.6m/s Max. Loading: 180Kg
Moving Coil Weight: 6.5Kg Dimension Of Moving Coil: Φ230mm
Accuracy: +/-10%
Highlight

electromagnetic vibration table for testing

,

vibration shaker system with warranty

,

vibration test table electromagnetic

Product Description

Product Overview

The Electromagnetic Vibration Table for Vibration Test adopts advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.

This equipment is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.

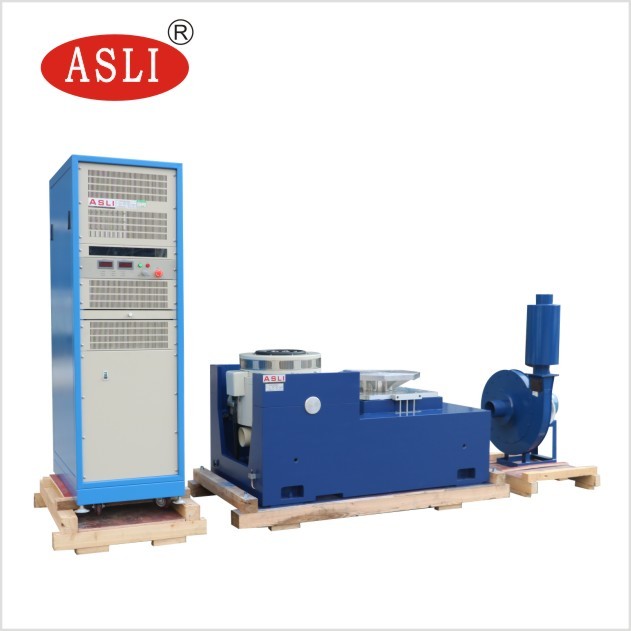

Electromagnetic vibration table for three-axis vibration testing with control system
Specifications
ModelES-6ES-6aES-10ES-20
Rated Sine Force (N)600060001000020000
Frequency Range (Hz)3–35003–35003–30003–3000
Rated Acceleration (m/s²)1000100010001000
Rated Speed (m/s)1.61.61.81.8
Rated Displacement (p-p) mm25515151
Max. Loading (Kg)180250270300
Moving Coil (Kg)6.5121430
Dimension of Moving Coil (mm)Φ230Φ230Φ240Φ320
Vibration DirectionVertical, horizontal, Vertical + horizontal vibration
Expander Options
Vertical Expander

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.

Horizontal Expander
  • Within a small loading bench, it realizes higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
  • The horizontal bench and vibration bench are an integral type with a perfect structure, offering convenience for installation and adjustment.
  • Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
  • Built-in oil pump with good structure and easy operation.

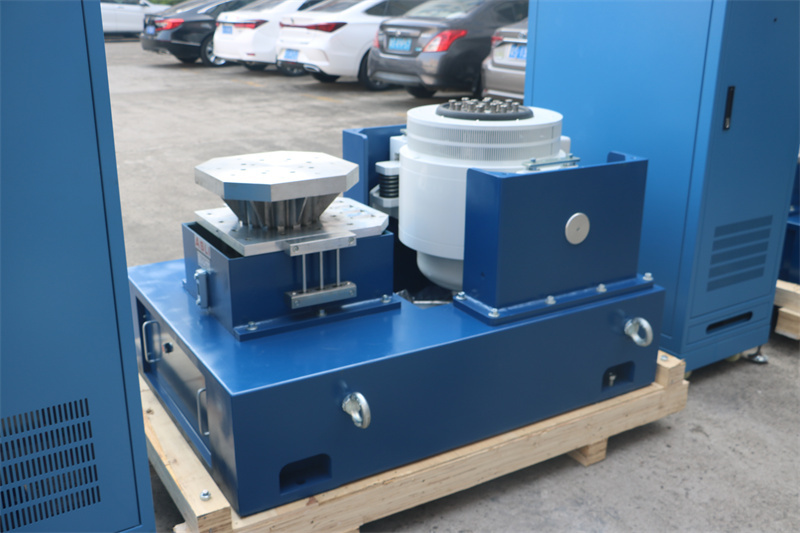

Vertical and horizontal expander accessories for electromagnetic vibration table
Product Gallery

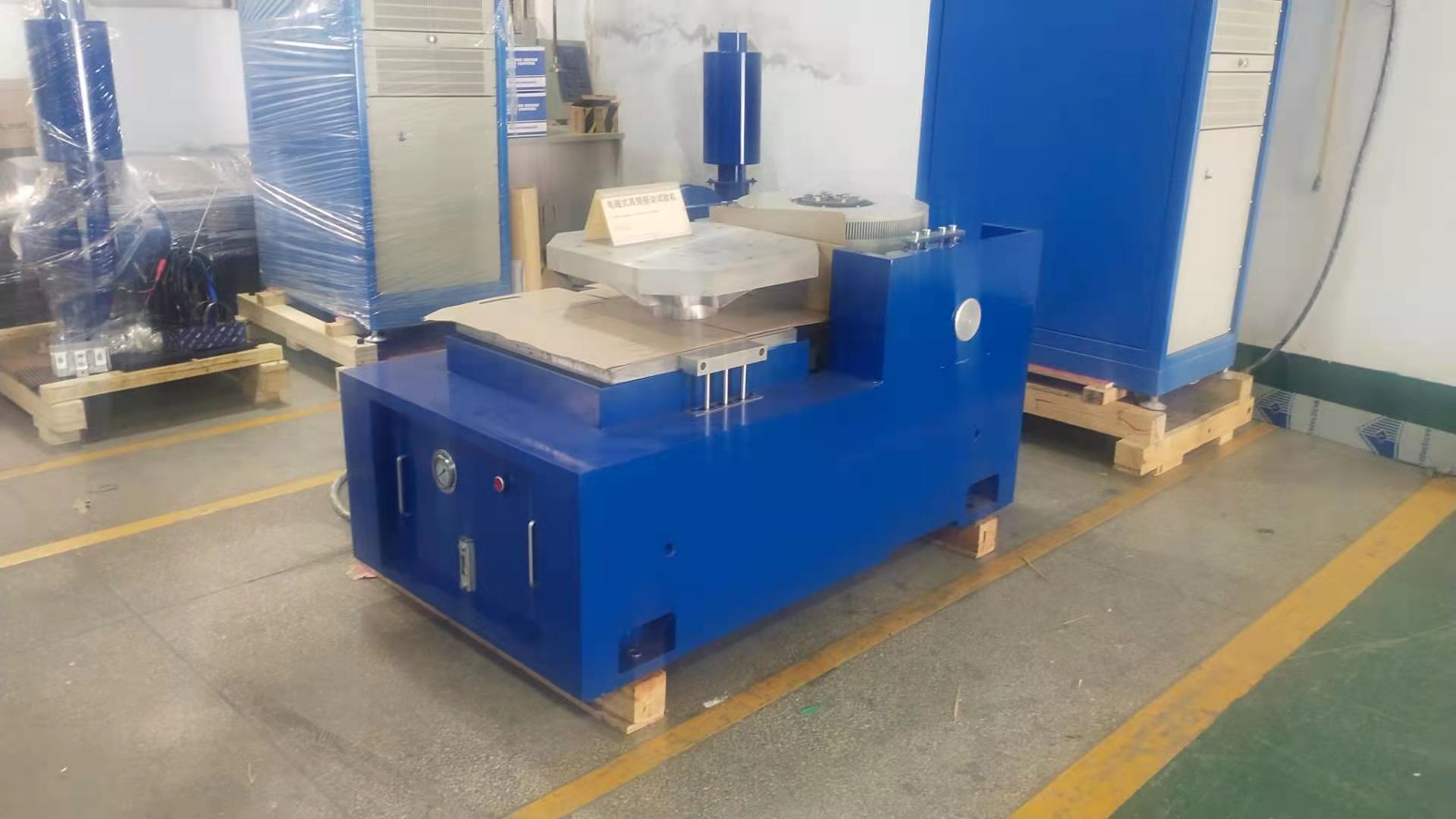

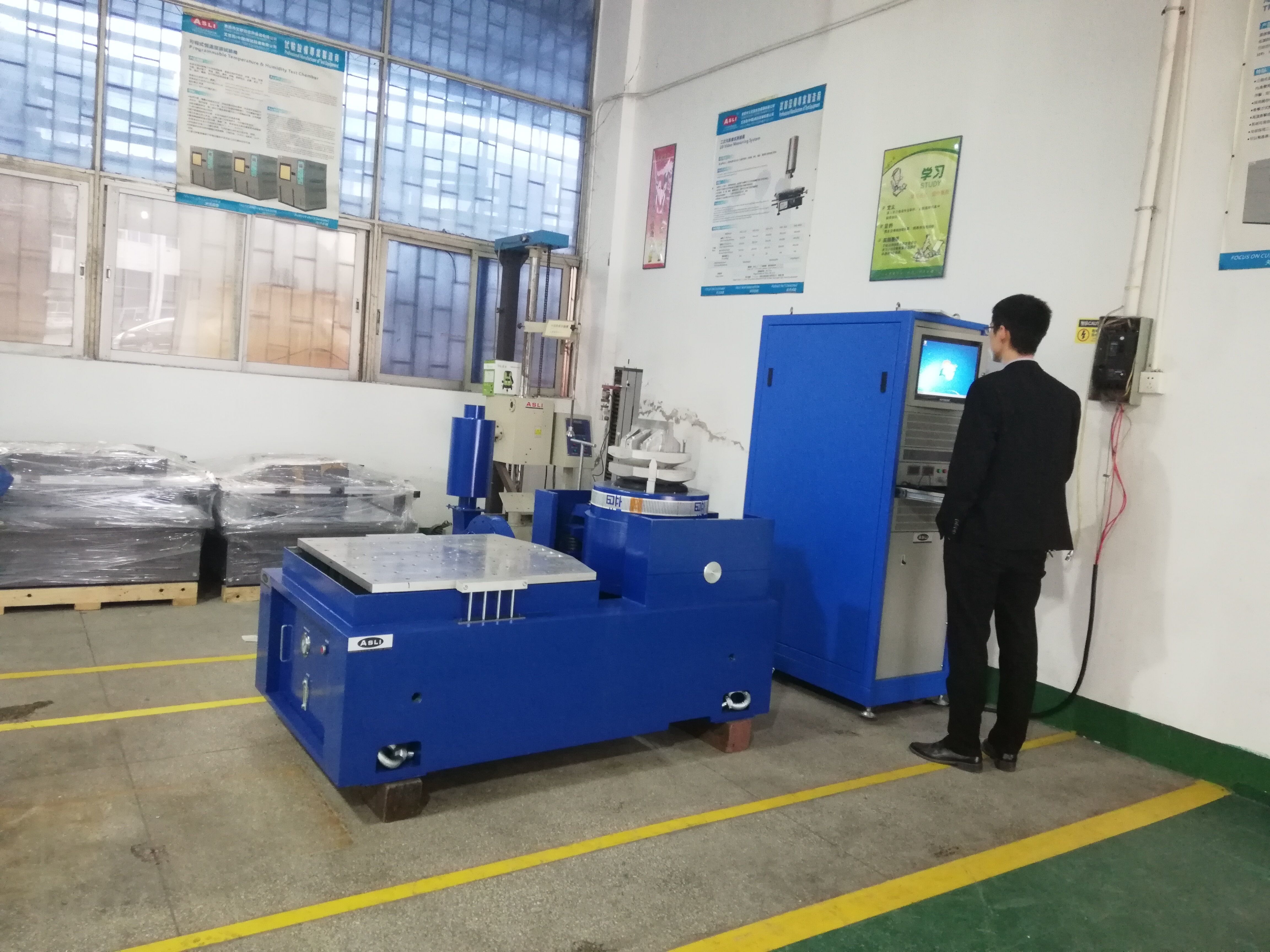

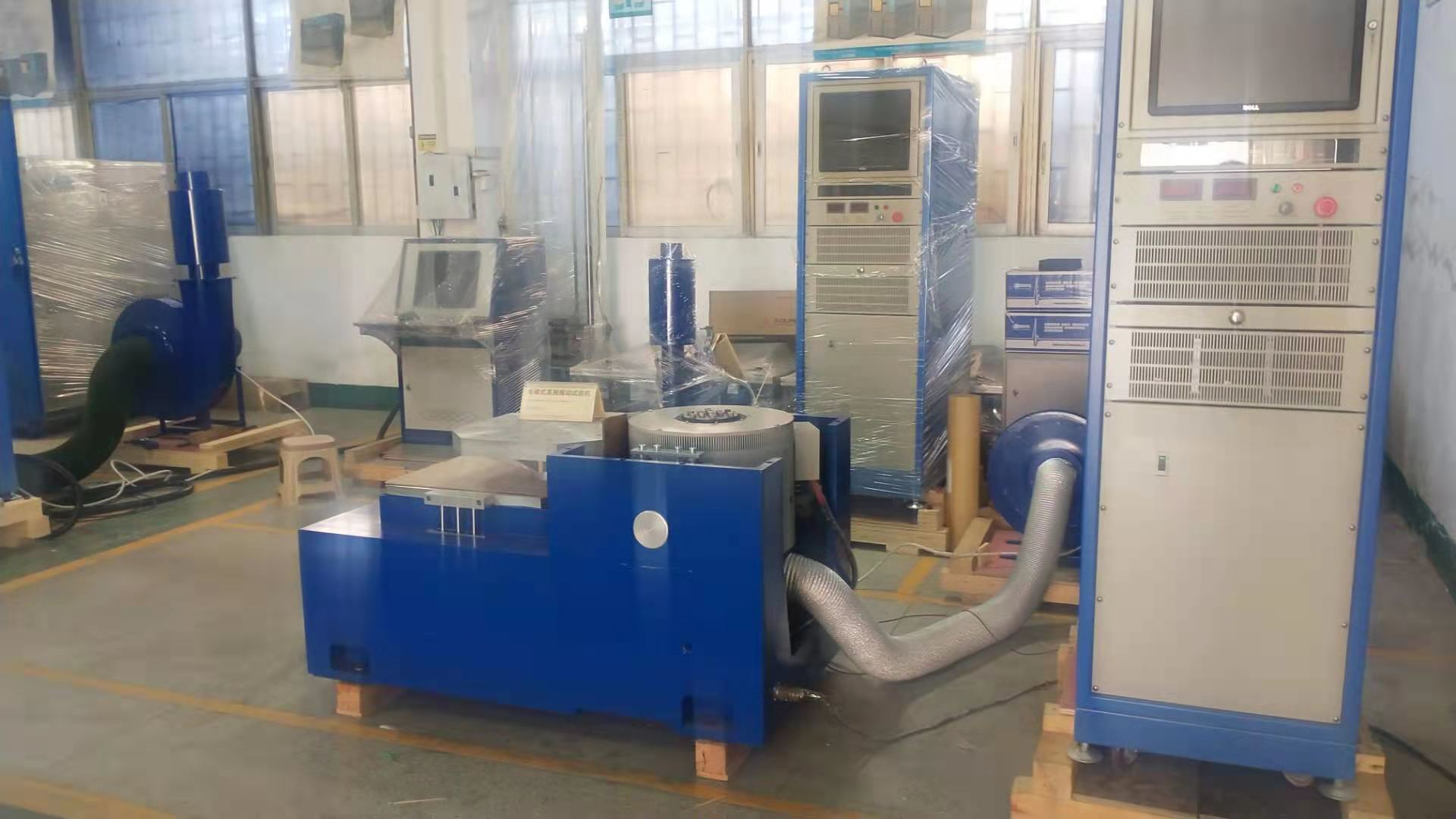

Electromagnetic vibration table front view with control panelElectromagnetic vibration table side view showing structureVibration table with vertical expander installedVibration table with horizontal expander and test fixtureClose-up of vibration table moving coil and armatureComplete vibration testing system with amplifier and controller
Packing & Delivery
Electromagnetic vibration table packed in standard export plywood case

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile

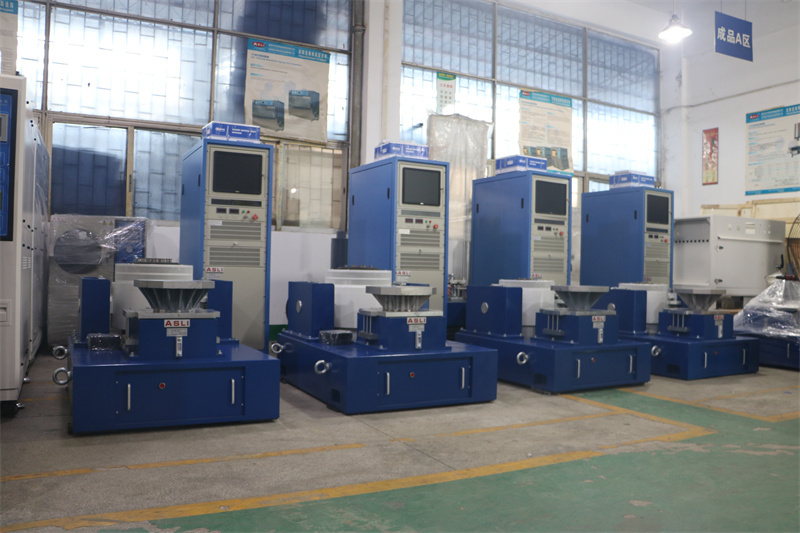

Company factory and manufacturing facility overview

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.

Mechanical Shock Tester
Mechanical shock tester for impact and shock response spectrum testing
Transportation Simulator Vibration Tester
Transportation simulator vibration tester for package and carton testing
Drop Test Machine

Our drop test machines are designed for precise free-fall impact testing, complementing our range of vibration and shock testing equipment.

Frequently Asked Questions

Q1. What are your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF, DAP, DDU, DDP.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the Electromagnetic Vibration Table for Vibration Test, please don't hesitate to contact us.

Product Highlights

10KN electromagnetic vibration table with 100g acceleration, 51mm displacement, and vertical+horizontal testing. Meets ISO 16750-03 and IEC 60068-2 standards, ideal for auto parts and lab testing. Supports OEM/ODM customization, 1-year warranty, IP55 protection.
