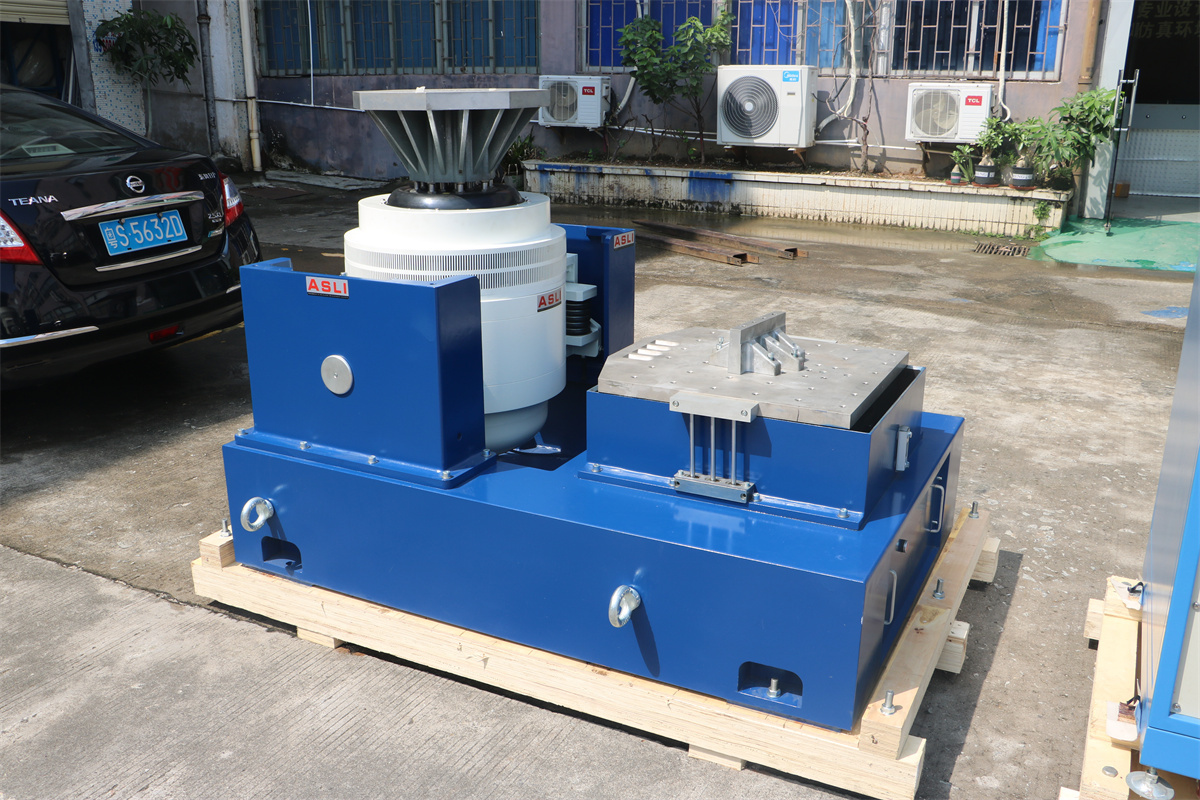

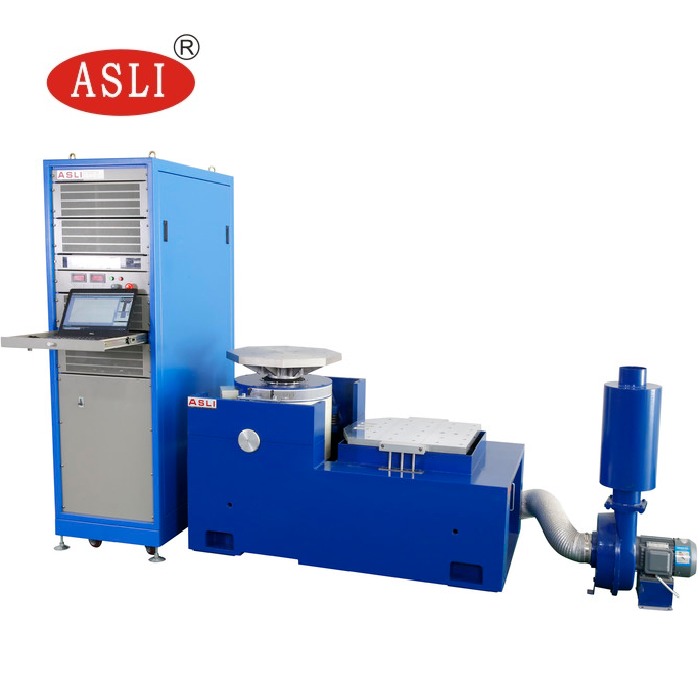

IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker
The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. This versatile testing platform serves various industries including aerospace, communications, electronics, electrical, and home appliances, and complies with multiple international standards including IEC, MIL-STD, JIS, and ASTM specifications.
Technical Specifications
| Model |
ES-10 |
ES-20 |
ES-30 |
ES-40 |
| Rated Sine Force (N) |
10000 |
20000 |
30000 |
40000 |
| Frequency Range (Hz) |
3-3000 |
3-3000 |
3-2800 |
3-2800 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
| Rated Displacement (p-p) mm |
70 |
80 |
11100 |
100 |
| Max. Loading (Kg) |
270 |
300 |
450 |
500 |
| Moving Coil (Kg) |
14 |
30 |
40 |
50 |
| Dimension of Moving Coil (mm) |
Φ240 |
Φ320 |
Φ450 |
Φ450 |
Product Features
- Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
- Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
- Rapid self-examination diagnosis and chain protection for high safety and reliability
- Air bag isolating and damping device eliminates the need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
- Provides horizontal and vertical expansion platforms for different applications
- Compatible with various vibration controllers for simple operation

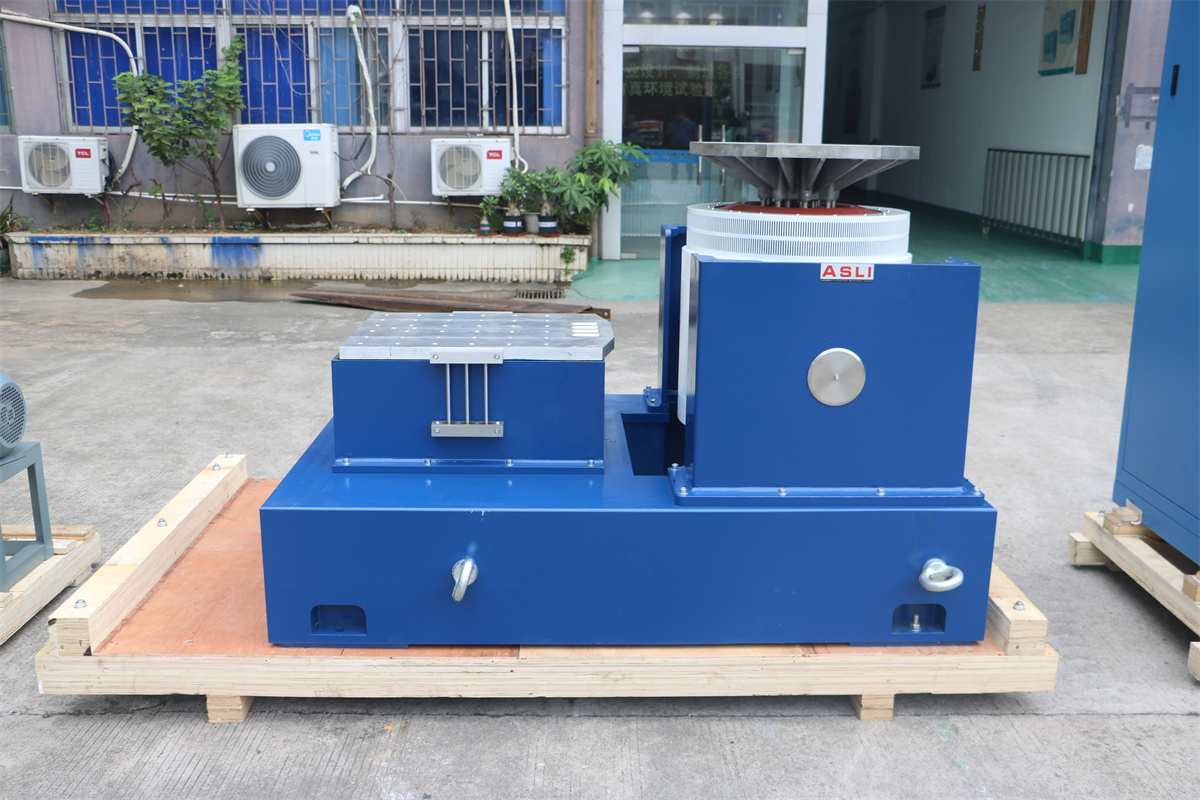

Horizontal Table Features
- Small loading bench design enables higher acceleration and working frequency, improving loading capacity and overall machine performance
- Integral horizontal bench and vibration bench structure for perfect construction, easy installation and adjustment
- Static pressure track with V-shape design, capable of slope-resistant and bias-loading resistant operation
- Built-in oil pump with optimized structure for easy operation

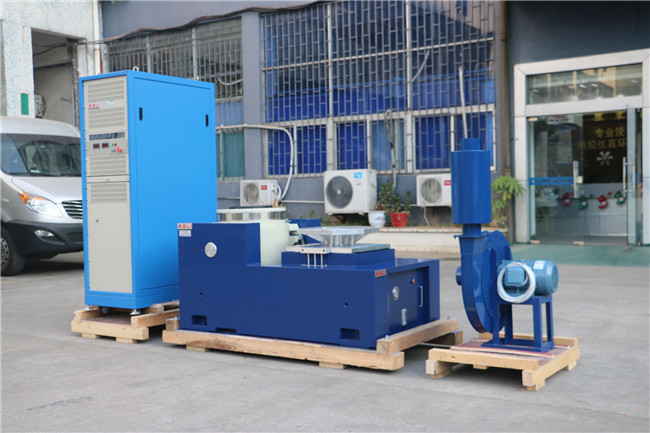

Packaging & Delivery
We provide professional, environmentally friendly, convenient and efficient packaging services to ensure the complete safety of your goods during transportation.
Company Profile

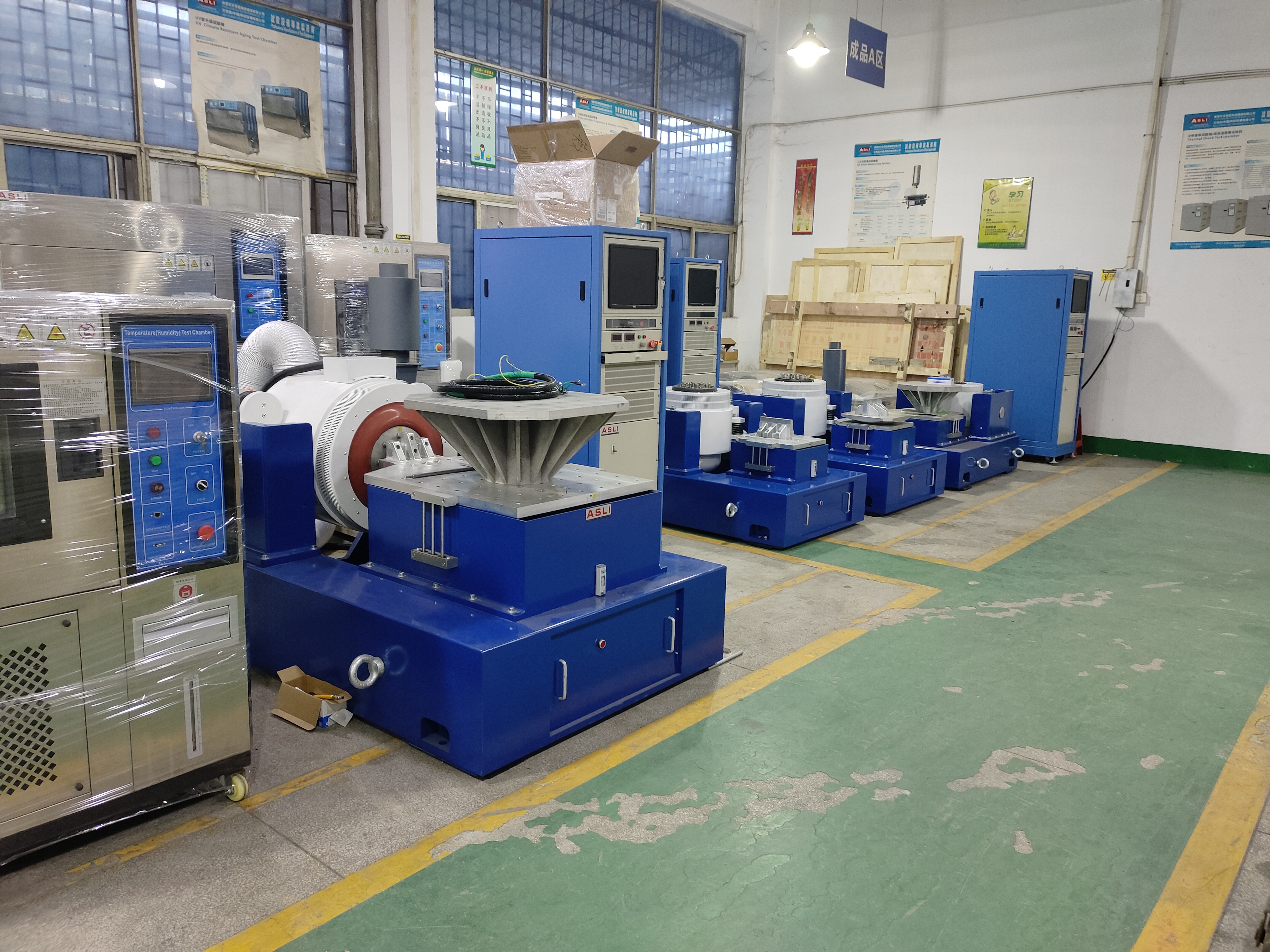

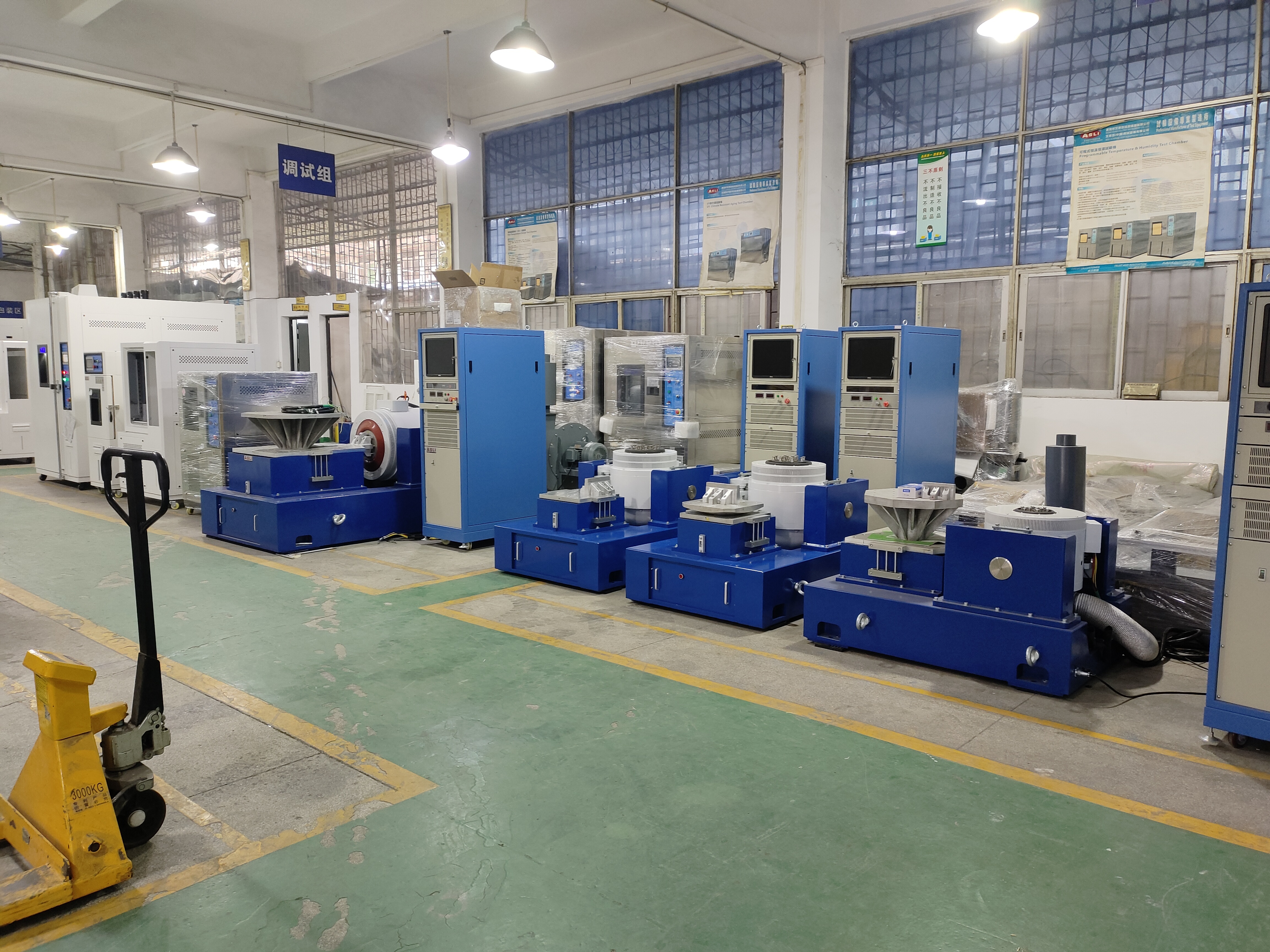

With 28 years of experience, we are a dedicated testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is a star product that has obtained CE certification.
Frequently Asked Questions
What is your terms of packing?
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF, DDU, DAP, DDP
How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please feel free to contact us.
