Home /Products/Vibration Shaker System/10000n Electrodynamics Mechanical Vibrator Shaker

10000n Electrodynamics Mechanical Vibrator Shaker

1
MOQ
10000n Electrodynamics Mechanical Vibrator Shaker
Features Gallery Product Description Request A Quote
Features
Specifications
Vibration Force: 20KN
Vibration Direction: Vertical Vibration
Acceleration: 100g
Voltage: 380 V
Frequency Range: 3~3500hz
Power: 20KW
Moving Coil Weight: 30kg
Protection Class: IP55
Control Method: Computer Control
Rated Sine Force: 10000N
Rated Acceleration: 1000m/s2
Rated Speed: 1.8m/s
Rated Displacement: 70mm
Max Loading: 270Kg
Moving Coil Dimension: Φ240mm
Highlight:

10000n electrodynamics mechanical vibrator

,

mechanical vibration shaker system

,

electrodynamics shaker with high force
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description

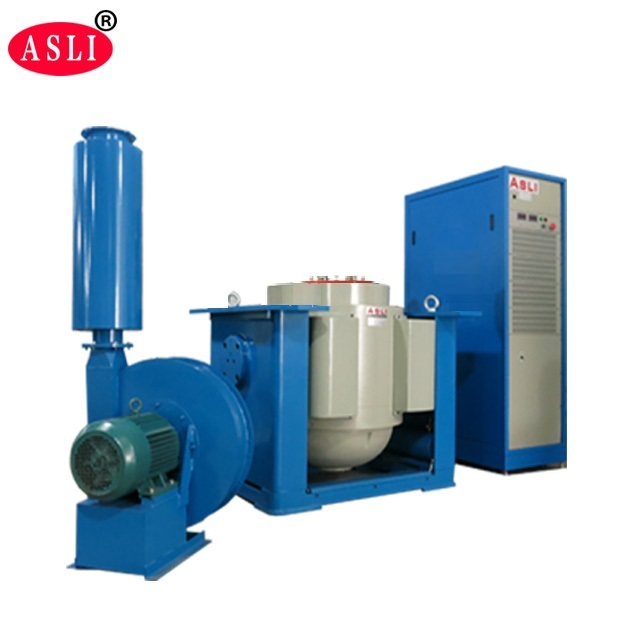

10000N Electrodynamics Mechanical Vibrator Shaker
The 10000N Electrodynamics Mechanical Vibrator Shaker is designed for product vibration and shock environmental testing, environmental stress screening tests, and reliability testing. This testing platform meets various international specifications including IEC, MIL-STD, JIS, and ASTM standards, making it suitable for aerospace, communications, electronics, electrical, and home appliance industries.
10000N Electrodynamics Mechanical Vibrator Shaker testing equipment
Technical Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated Displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving Coil (Kg) 14 30 40 50
Dimension of Moving Coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates the need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
  • Provides horizontal and vertical expansion platforms for different applications
  • Compatible with various vibration controllers for simple operation
Horizontal Stand Features
  • Small loading bench design enables higher acceleration and working frequency, improving loading capacity and overall machine performance
  • Integral type horizontal bench and vibration bench with perfect structure for convenient installation and adjustment
  • Static pressure track with V-shape design, capable of slope-resistant and bias-loading resistant operation
  • Built-in oil pump with good structure and easy operation
Horizontal stand features of mechanical vibrator shaker Vibrator shaker internal components and structure
Packaging & Delivery
Professional packaging for vibration testing equipment
We provide professional, environmentally friendly, convenient and efficient packaging services to ensure the complete safety of your goods during transportation.
Company Profile
Testing equipment manufacturing facility Manufacturing process and quality control Advanced testing equipment production Professional team and manufacturing expertise CE certification for vibration testing equipment Completed vibration testing systems
With 28 years of experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration testers are star products, and we have obtained CE certification for these machines.
Frequently Asked Questions
What is your terms of packing?
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF, DDU, DAP, DDP
How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about the 10000N Electrodynamics Mechanical Vibrator Shaker, please feel free to contact us.
