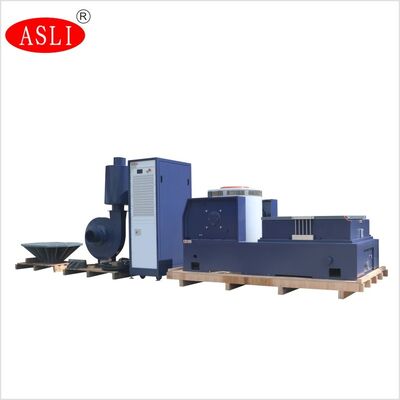

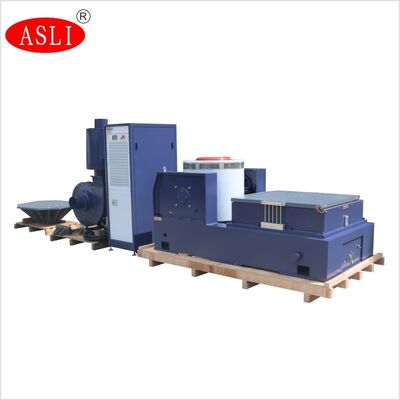

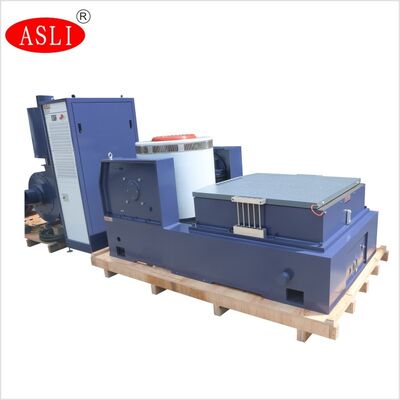

Precision Electronic Vibration System with Computer Control
Designed for ISTA 3A Standard reliability shock and durability testing, this Universal High Frequency Electrodynamics Vibration Tester provides comprehensive vibration and shock environmental testing, environmental stress screening, and reliability testing for products in aerospace, communications, electronics, electrical, and home appliance industries.
Technical Specifications
| Model |
ES-10 |
ES-20 |
ES-30 |
ES-40 |
| Rated Sine Force (N) |
10000 |
20000 |
30000 |
40000 |
| Frequency Range (Hz) |
3-3000 |
3-3000 |
3-2800 |
3-2800 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
| Rated Displacement (p-p) mm |
70 |
80 |
11100 |
100 |
| Max. Loading (Kg) |
270 |
300 |
450 |
500 |
| Moving Coil (Kg) |
14 |
30 |
40 |
50 |
| Dimension of Moving Coil (mm) |
Φ240 |
Φ320 |
Φ450 |
Φ450 |
Product Features
- Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
- Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
- Rapid self-examination diagnosis and chain protection for high safety and reliability
- Air bag isolating and damping device eliminates need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
- Compatible with various horizontal and vertical expansion platforms
- Works with all types of vibration controllers for simple operation

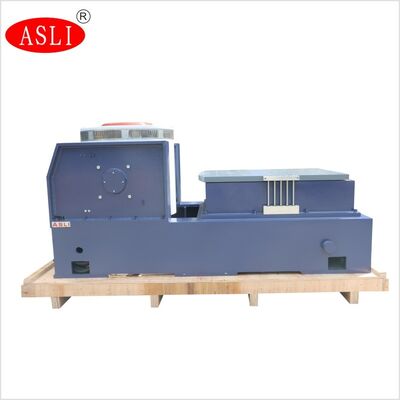

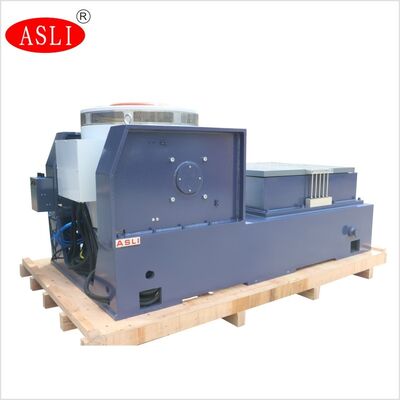

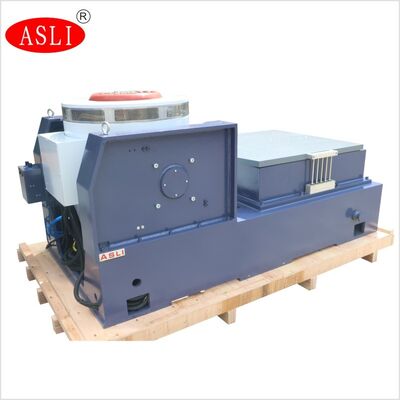

Horizontal Stand Features
- Small loading bench design enables higher acceleration and working frequency
- Improves loading capacity and overall machine performance
- Integral design with vibration bench for perfect structure and easy installation/adjustment
- Static pressure track with V-shape design for slope-resistant and bias-loading resistant capabilities
- Built-in oil pump with good structure and easy operation
Packaging & Delivery
We provide professional, environmentally friendly, convenient and efficient packaging services to ensure the complete safety of your goods during transportation.
Company Profile
With 28 years of experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration testers are star products that have obtained CE certification.
Frequently Asked Questions
What is your terms of packing?
PP film first, with 10mm foam between machine and case, and standard export plywood case for external protection.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We provide photos of products and packages before balance payment.
What is your terms of delivery?
EXW, FOB, CIF, DDU, DAP, DDP delivery terms available.
How about your delivery time?
Generally 30 to 60 days after receiving advance payment. Specific delivery time depends on items and order quantity.
For more information about our Universal High Frequency Electrodynamics Type Vibration Tester, please feel free to contact us.
