Electronic Products Transport Simulation Mechanical Vibration Test Machine

1
MOQ
Electronic Products Transport Simulation Mechanical Vibration Test Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Vibration Directions: Three Directions Free Vibration
Acceleration Sensor: 1 Pc
Voltage: 380 V
Sine Force: 10000N
Input: 1 Channel
Protection Class: IP55
Vibration Wave: Sine, Random, Shock
Accuracy: +/- 2%
Power: 30kw
Frequency Range: 3-3000 Hz
Rated Acceleration: 1000 M/s2
Rated Speed: 1.8 M/s
Rated Displacement: 51 Mm
Max Loading: 270 Kg
Moving Coil Weight: 14 Kg
Highlight:

mechanical vibration test machine

,

transport simulation vibration shaker

,

electronic products vibration tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description
Electronic Products Transport Simulation Mechanical Vibration Test Machine
Advanced vibration testing equipment designed to simulate transport conditions and mechanical vibrations for electronic products, ensuring product reliability and durability.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Vertical Expander Technical Parameters Diagram
Technical Parameters of Horizontal Expander
Horizontal Expander Technical Parameters Diagram
High Frequency Vibration Test Machine Specifications
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation for dedicated hormone use with convenient mobile installation
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • New duct design for enhanced cooling effect
  • High static stiffness and small dynamic stiffness balloon bearing, improving vibration table bearing capacity and low-frequency performance
Product Images

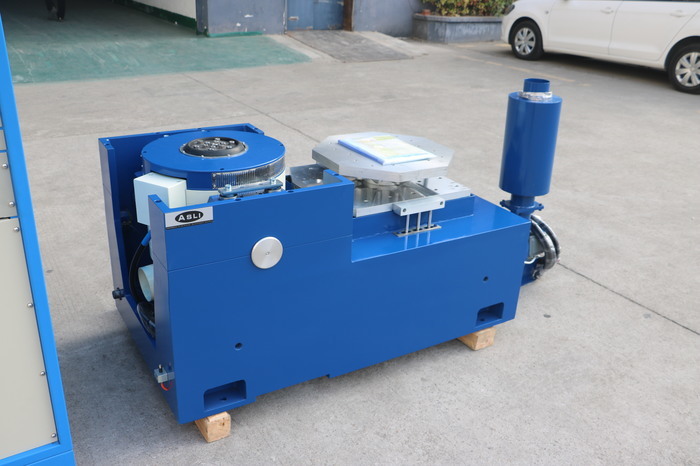

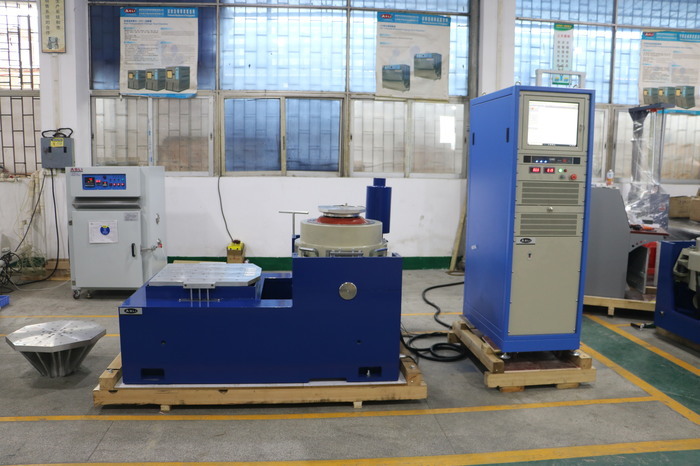

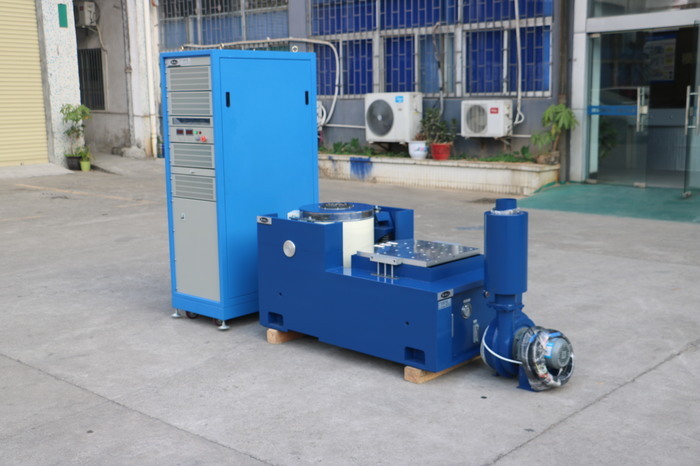

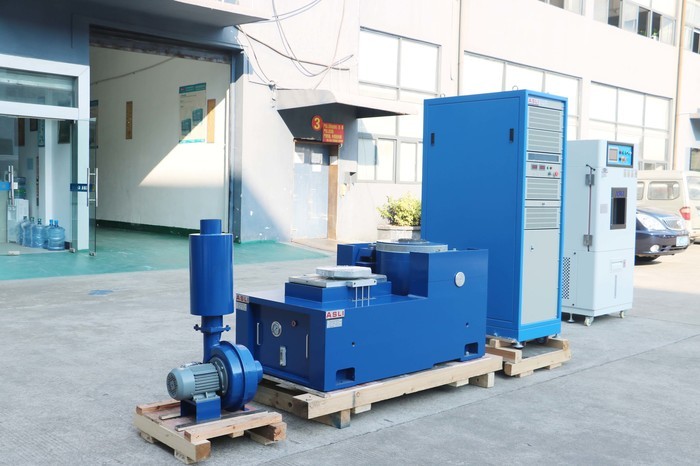

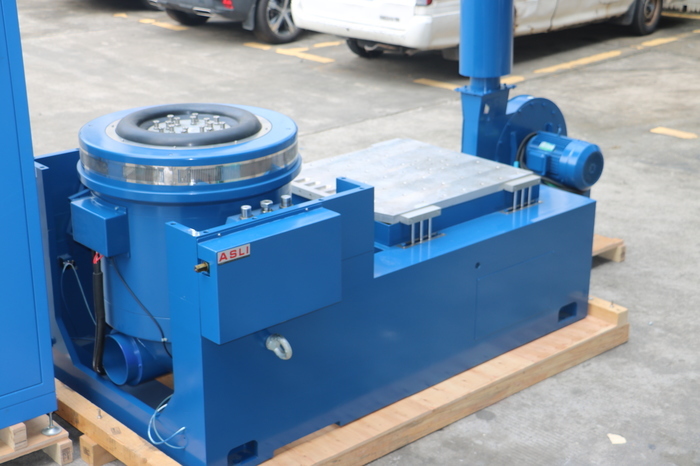

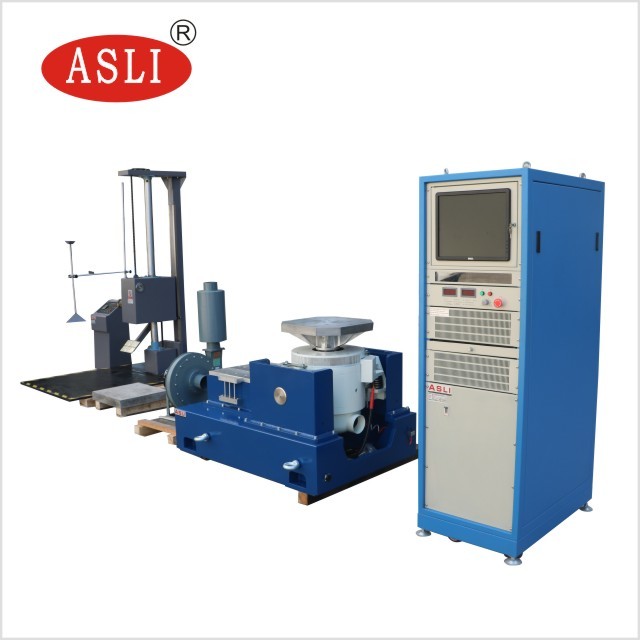

Vibration test machine detailed view Vibration test machine internal components Vibration test machine control panel Vibration test machine side view Vibration test machine operational view Vibration test machine technical details
