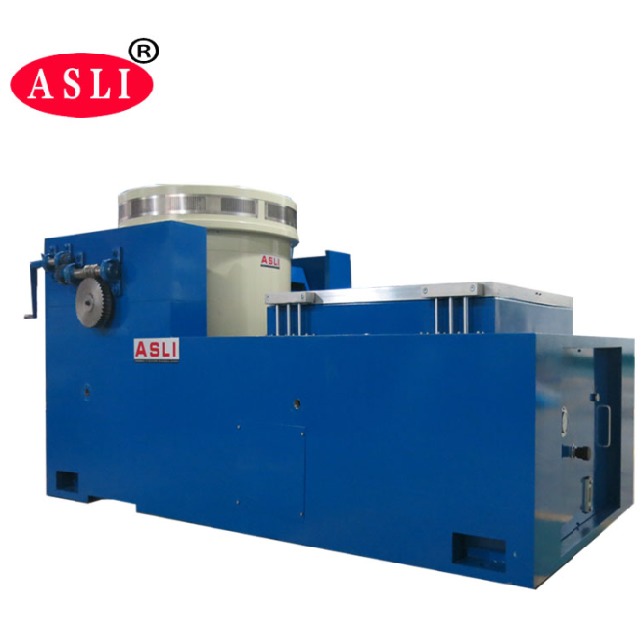

Hot Selling High Frequency Vibration Testing Table

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Power: 20KW Moving Coil Weight: 6.5kg
Vibration Force: 6000N Voltage: 380 V
Vibration Direction: 3 Axis Acceleration: 100g
Protection Class: IP55 Rated Speed: 1.8m/s
Accuracy: +/-10% Frequency: 3~3500hz
Rated Sine Force: 6000N Rated Random Force: 6000N
Rated Acceleration: 1000m/s2 Rated Displacement: 25mm
Max. Loading: 180Kg
Highlight

high frequency vibration testing table

,

vibration shaker system with warranty

,

hot selling vibration testing equipment

Product Description

Product Overview
Test Standards: ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, and more.

The Hot Selling High Frequency Vibration Testing Table is designed for early fault detection, simulation of actual working conditions, and structural strength testing. It offers broad application coverage with remarkable and reliable test results. The system supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control functions, with full computer control and simple fixed acceleration/fixed amplitude modes. The equipment has undergone three months of continuous failure-to-run testing, demonstrating stable performance and reliable quality.

Key Features
  • Large loading capacity with a maximum displacement of 51 mm (p-p) and a low working frequency of 2 Hz.
  • Meets the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for basic testing of international transport packages.
  • The table body is guided by hydraulic wheels and linear bearings with low axial rigidity.
  • Air spring support provides large load capacity, good low-frequency characteristics, and high stability.

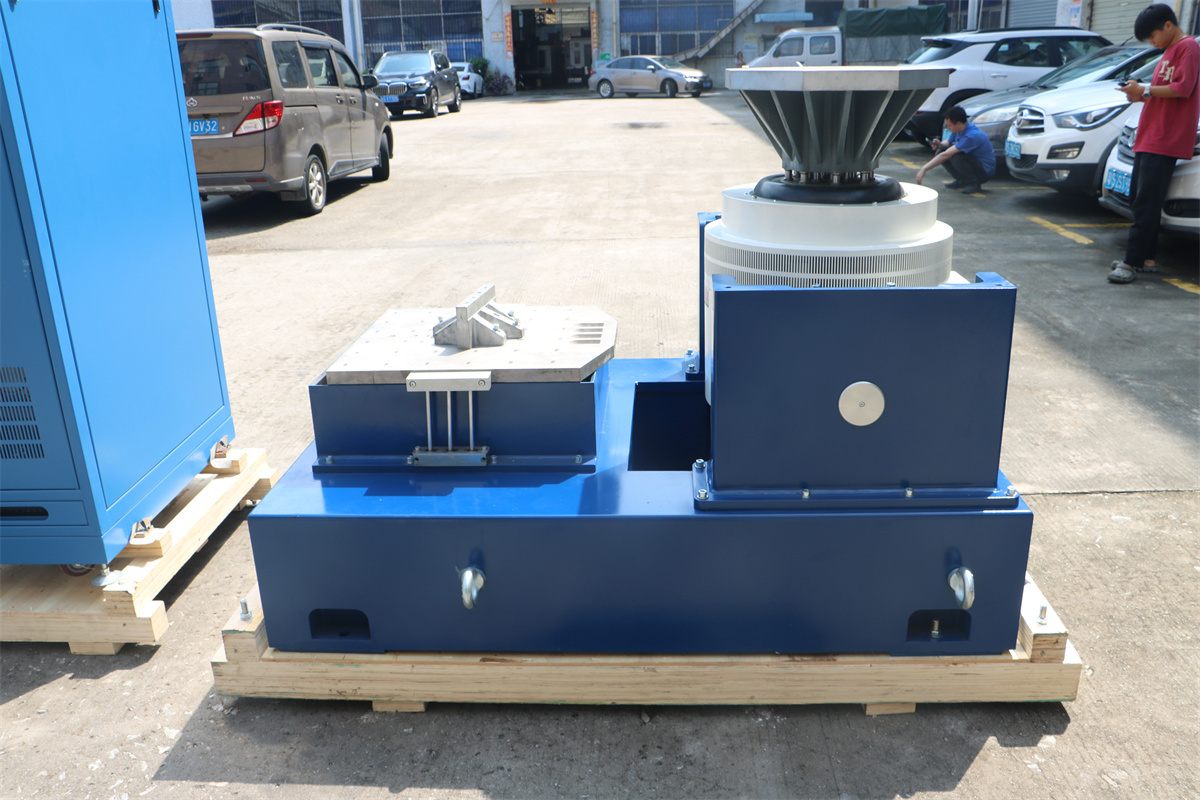

High frequency vibration testing table with control system and mounting platform
Specifications
ModelRated Sine Force (N)Rated Random Force (N)Frequency Range (Hz)Rated Acceleration (m/s²)Rated Speed (m/s)Rated Displacement (p-p) mmMax. Loading (Kg)Moving Coil (Kg)Dimension of Moving Coil (mm)
ES-6600060003–350010001.6251806.5Φ 230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
Additional Features
  • The machine base is made of high-quality materials, easy to install, and runs smoothly.
  • Multiple functions including frequency modulation, frequency sweeping, programmable amplitude modulation, and time control.
  • Strong anti-magnetic and anti-interference ability with safe and reliable protection.
  • Computer connecting line control with immediate material storage.
  • Low resistance and high-performance design for high efficiency and low cost.
  • High reliability with low fault rate.
  • Best after-sales service: one year free parts maintenance.
  • Customization is available and welcomed.

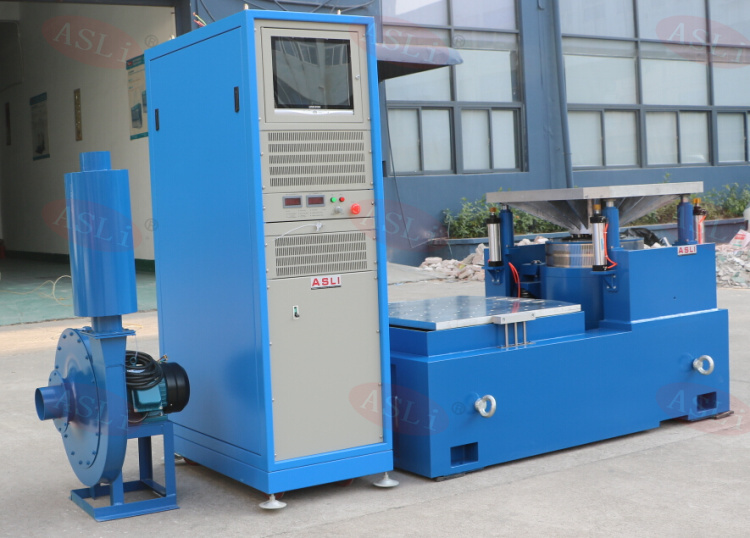

Vibration testing table control panel and computer interfaceHigh frequency vibration testing table system configuration diagram
Packing & Delivery

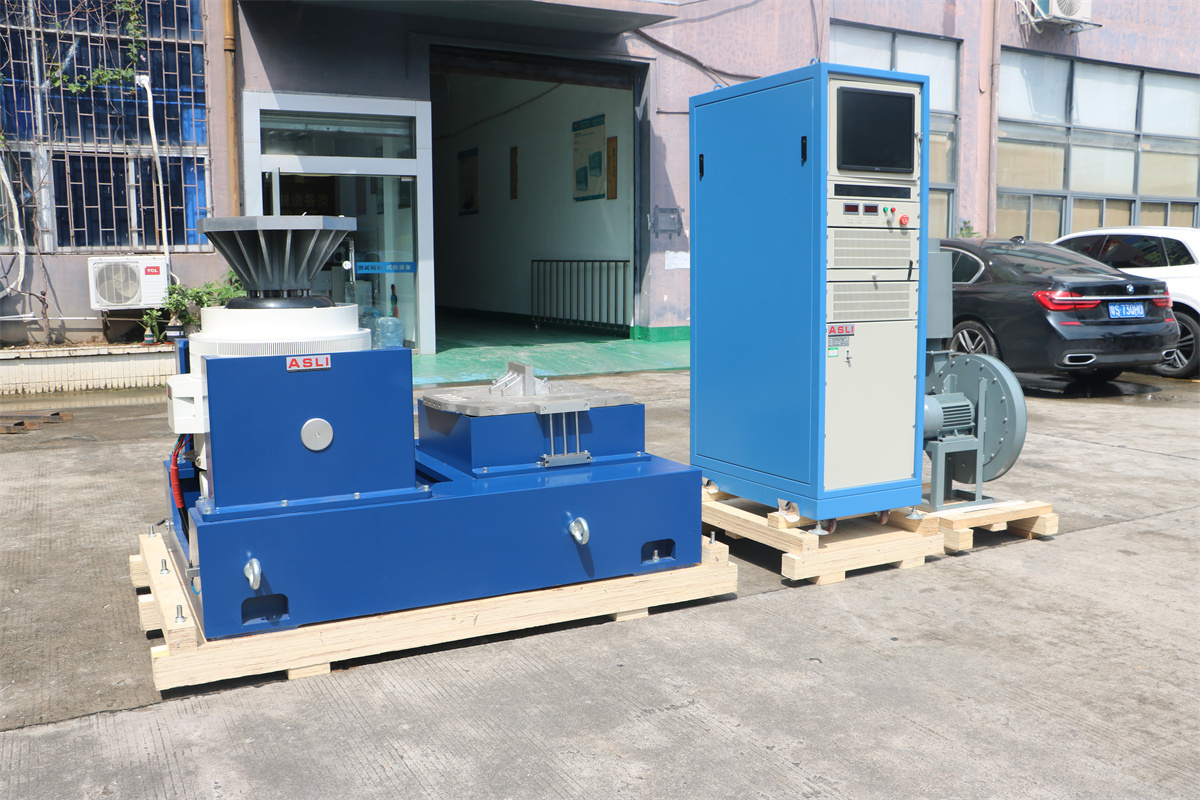

Professional export packaging of vibration testing table equipment

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile

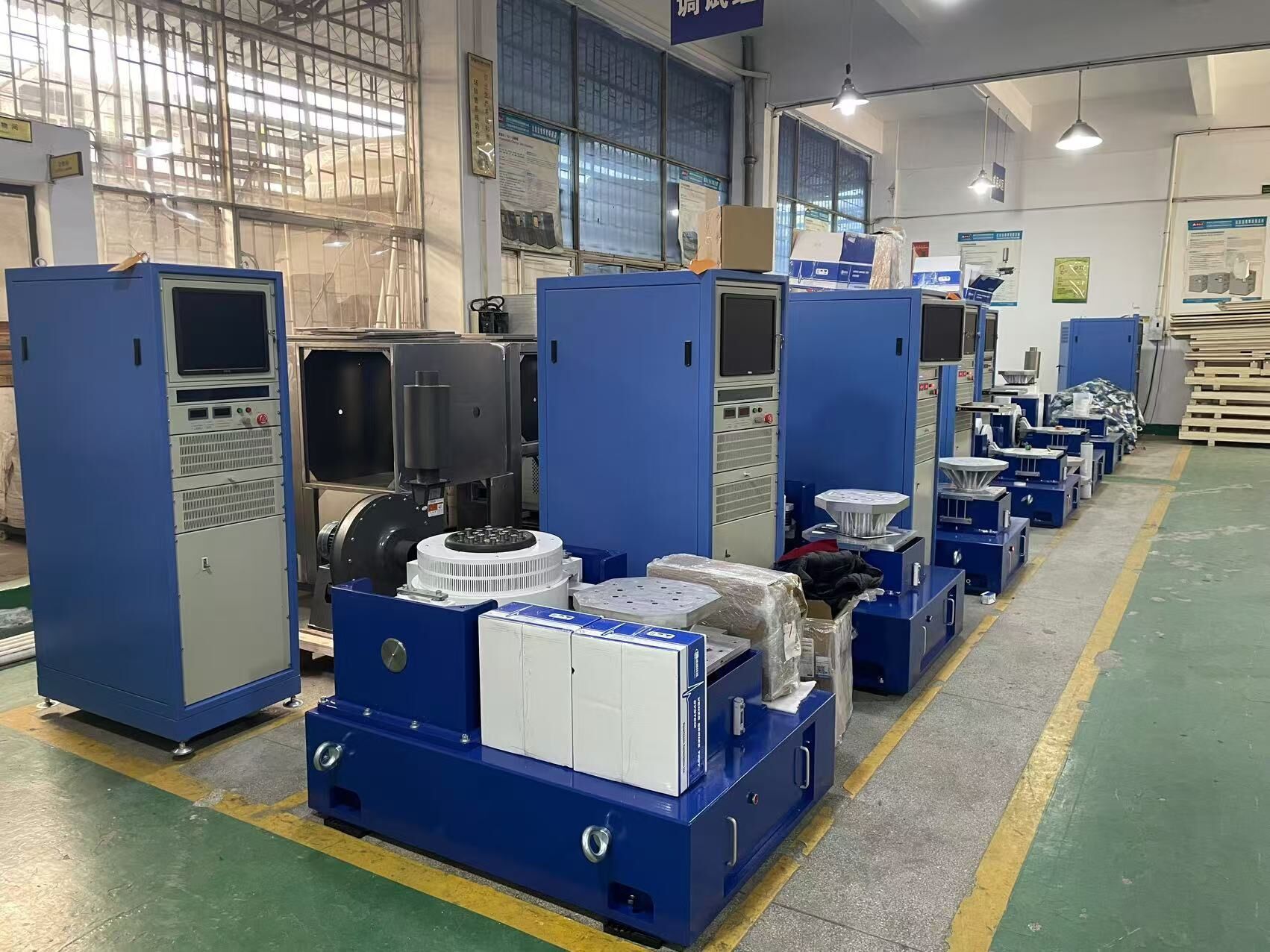

ASLi (China) Test Equipment Co., Ltd facility and team

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

Frequently Asked Questions
Q1: Is your company a trading company or a factory?

A: Factory + trade (integration). We have our own factory.

Q2: Do you accept customization service?

A: Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.

Q3: What is your product warranty?

A: 1-year warranty, but lifetime for services.

Q4: How about the product quality?

A: Our products apply to ISO, ASTM, GB, MIL-STD, etc.

If you need more information about the Hot Selling High Frequency Vibration Testing Table, please don't hesitate to send your inquiry.

Product Highlights

High-frequency 3-axis vibration testing table with 6000N force, 20KW power, 3-3500Hz range, and 100g acceleration. Meets MIL-STD, IEC 60068, and ISTA standards. Features hydraulic guidance, air spring support, and computer control. OEM/ODM customization available with 1-year warranty.
