High Frequency Electrodynamics Vibration Test System for Un38.3 Standard

1
MOQ
High Frequency Electrodynamics Vibration Test System for Un38.3 Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Vibration Direction: Vertical Vibration
Rated Random Force: 20000N
Voltage: 380 V
Power Supply: AC380V
Power: 15KW
Rated Sine Force: 20000N
Rated Speed: 2.0m/s
Control Method: PC
Rated Displacement: 51mm
Protection Class: IP55
Accuracy: +/- 2%
Max. Acceleration: 100g
Frequency: 3~3500HZ
Vibration Method: Sine &Random Vibration
Max. Loading: 300 Kg
Highlight:

High Frequency Vibration Test System

,

Electrodynamics Vibration Shaker

,

UN38.3 Standard Vibration Tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description
High Frequency Electrodynamics Vibration Test System for UN38.3 Standard
Professional electrodynamic vibration test system designed for UN38.3 standard compliance testing, featuring advanced double-magnetic circuit structure and multi-axis testing capabilities.
System Applications
Our high frequency vibration test machines utilize advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. These systems perform X, Y, Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical pulse tests (half-sine, trapezoidal, saw tooth wave), and shock response spectrum tests. Widely used in defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer goods industries.
High Frequency Electrodynamics Vibration Test System Vibration Test System Close-up View
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-1100010003-35004001.225702.5Φ150
ES-2200020003-35008001.625702.5Φ150
ES-2a200020003-35003001.640708Φ230
ES-3300030003-350010001.6251003.5Φ150
ES-3a300030003-35004001.6401209Φ230
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85145040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450
ES-1001000001000003-250010001.851100090Φ450
ES-1201200001200003-220010001.851110090Φ500
ES-1601600001600003-210010001.8511500150Φ600
ES-2002000002000003-200010001.8512500200Φ650
ES-3503500003500003-170010001.8514500300Φ87
Key Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation for mobile installation convenience
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • New duct design for enhanced cooling effect
  • High static stiffness and small dynamic stiffness bearing balloon for improved vibration table capacity and low-frequency performance
Expander Technical Parameters
Horizontal Expander Technical Specifications Horizontal Expander Diagram Vertical Expander Technical Specifications Vertical Expander Diagram
Product Images

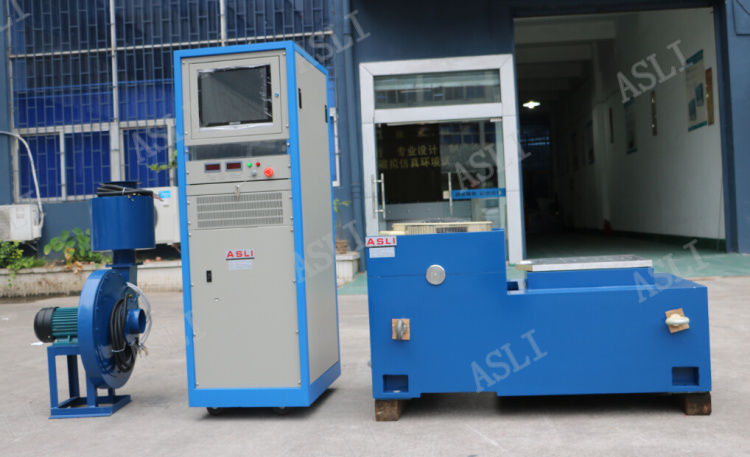

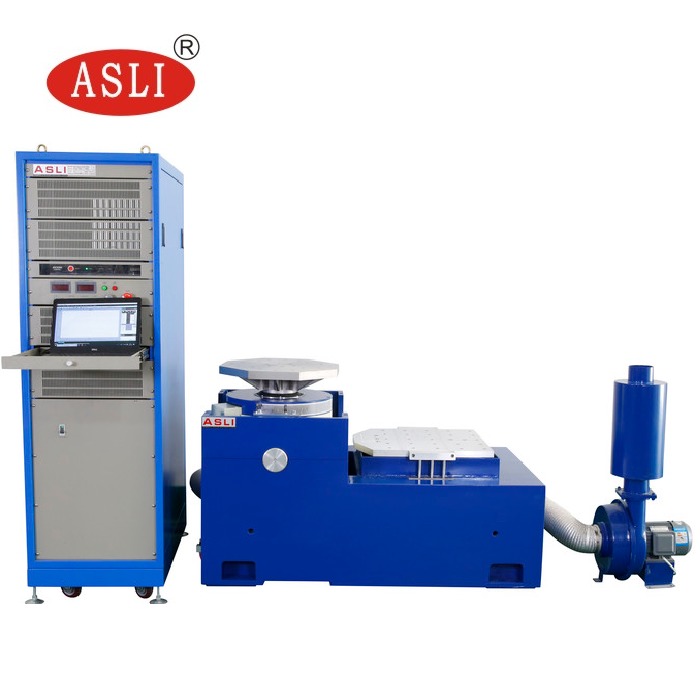

High Frequency Vibration Test System Overview Vibration Test System Side View Vibration Test System Control Panel Vibration Test System Internal Components
Certification & Packaging
Our systems include China official 3rd party calibration report and CE certification.
Packaging Process
  • PP film first layer protection
  • Vacuum packaging for moisture resistance
  • Additional PP film layer
  • 10mm thickness PU foam for collision avoidance
  • Reinforced plywood case
  • Standard ASLI case marking
Vibration Test Machine Packaging and Shipping Packaging Detail View
Customer Service
  • High quality guarantee
  • Shipment with professional documentation
  • Custom packaging with photos provided before shipment
  • Response within 48 hours with solutions within 3 working days
  • Professional after-service from our engineering team
Customers Visiting ASLI Company Facility Customer Visit and Technical Discussion
Company Advantages
  • Professional technology support
  • Extensive experience with large container shipments from Chinese sea ports
  • Fast shipment through reputed shipping lines
  • Comprehensive after-shipment service with email support
ASLI Company Exhibition Booth Industry Exhibition Participation
Certifications
ASLI Company Quality Certifications Industry Compliance Certifications Testing Equipment Certifications Manufacturing Quality Standards
Company Information
ASLI is a long-established testing equipment manufacturer with 28 years of experience specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our High Frequency Electrodynamics Vibration Test System for UN38.3 Standard is a star product with CE certification.
ASLI Manufacturing Facility ASLI Production Line
Main Test Equipment Products
Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/Hast chambers (Highly Accelerated Stress Test), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, environmental combined vibration chambers, and more.
Frequently Asked Questions
Are you a trading company or a factory?
We are a factory with 28 years of experience in test instruments and 4 years of exporting experience.
What is the delivery time after placing an order?
Generally about 20 days. If we have finished products in stock, we can arrange shipment within 3 days. Production lead times depend on specific items and quantities.
What about warranty and after-sales services?
12 months warranty. After warranty period, our professional after-sale service team provides technical support and helps customers solve problems encountered while using our products, handling issues and complaints professionally and promptly.
Related Vibration Testing Products Additional Testing Equipment
Please feel free to contact us for any questions or requirements regarding our High Frequency Electrodynamics Vibration Test System for UN38.3 Standard.
