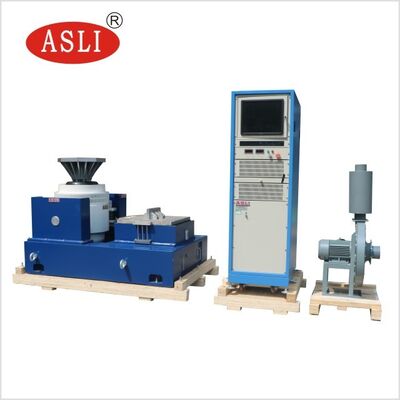

High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Sine Force: 10000N Power: 20KW
Input: 1 Channel Vibration Wave: Sine, Random, Shock
Voltage: 380 V Acceleration Sensor: 1 Pc
Protection Class: IP55 Vibration Directions: Three Directions Free Vibration
Accuracy: +/-0.5C Rated Random Force: 10000N
Frequency Range: 3-3000Hz Rated Acceleration: 1000m/s2
Rated Speed: 1.8m/s Rated Displacement: 51mm
Max Loading: 270Kg
Highlight

High Frequency Vibration Shaker System

,

Vertical Horizontal Electrodynamics Shaker

,

Electrodynamics Vibration Shaker with Warranty

Product Description

Product Overview

The High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker is engineered for precision vibration testing across a wide frequency range. It supports both vertical and horizontal orientations, making it suitable for diverse industrial and laboratory applications.

Technical Specifications
ModelRated Sine Force (N)Rated Random Force (N)Frequency Range (Hz)Rated Acceleration (m/s²)Rated Speed (m/s)Rated Displacement (p-p) mmMax. Loading (Kg)Moving Coil (Kg)Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
Technical Parameters of Vertical Expander
Technical parameters diagram of the vertical expander for the electrodynamics vibration shaker
Technical Parameters of Horizontal Expander
Technical parameters diagram of the horizontal expander for the electrodynamics vibration shaker
High Frequency Vibration Test Machine Specifications
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
  3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
  5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

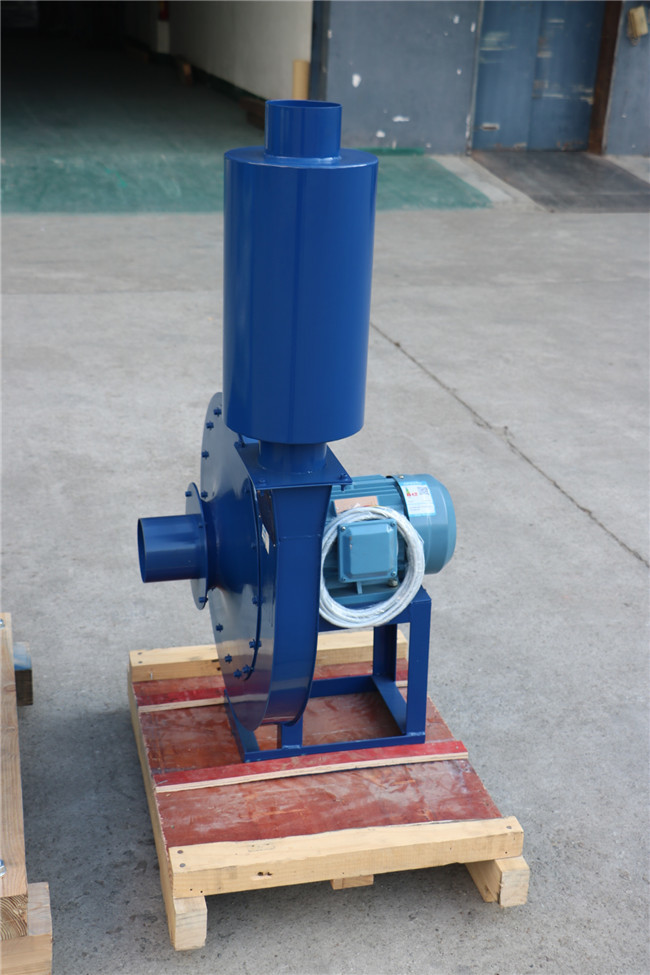

  6. New duct design and enhance the cooling effect.
  7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Detailed Images

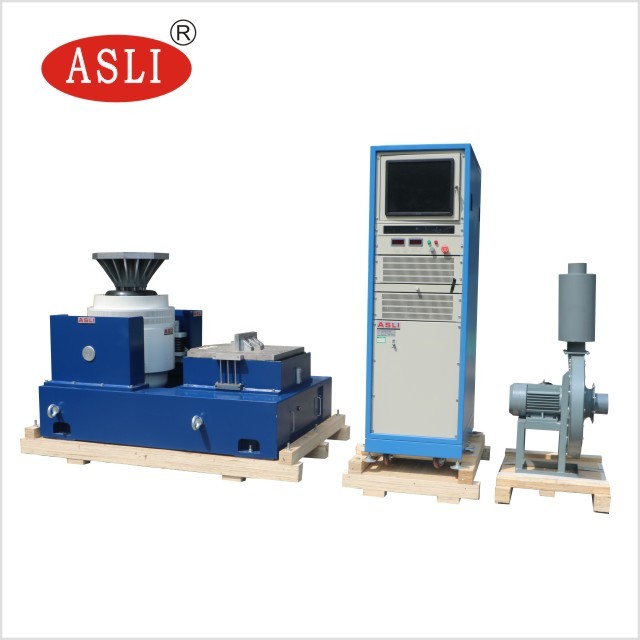

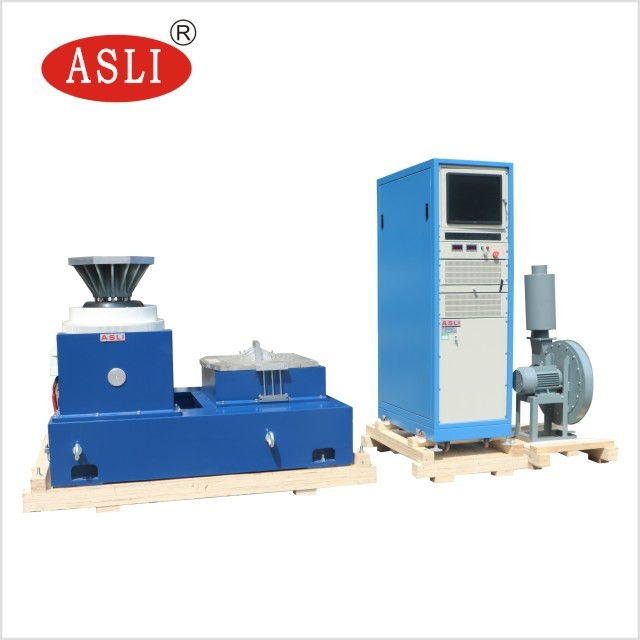

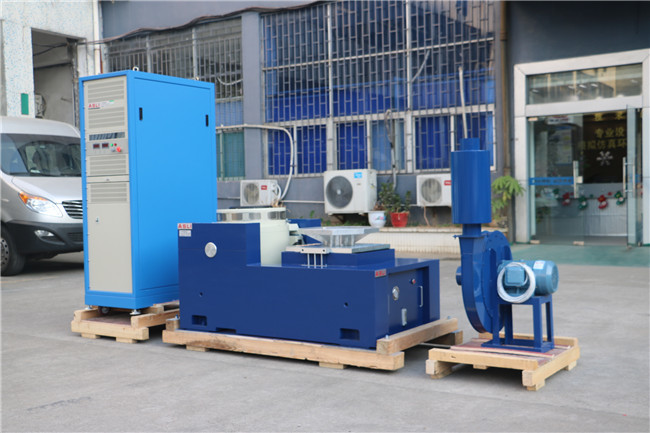

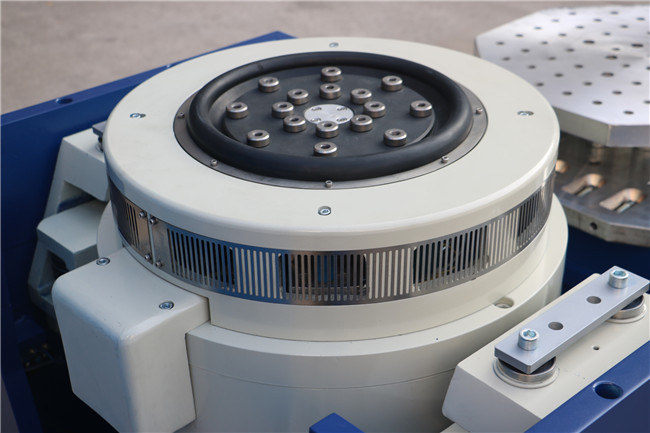

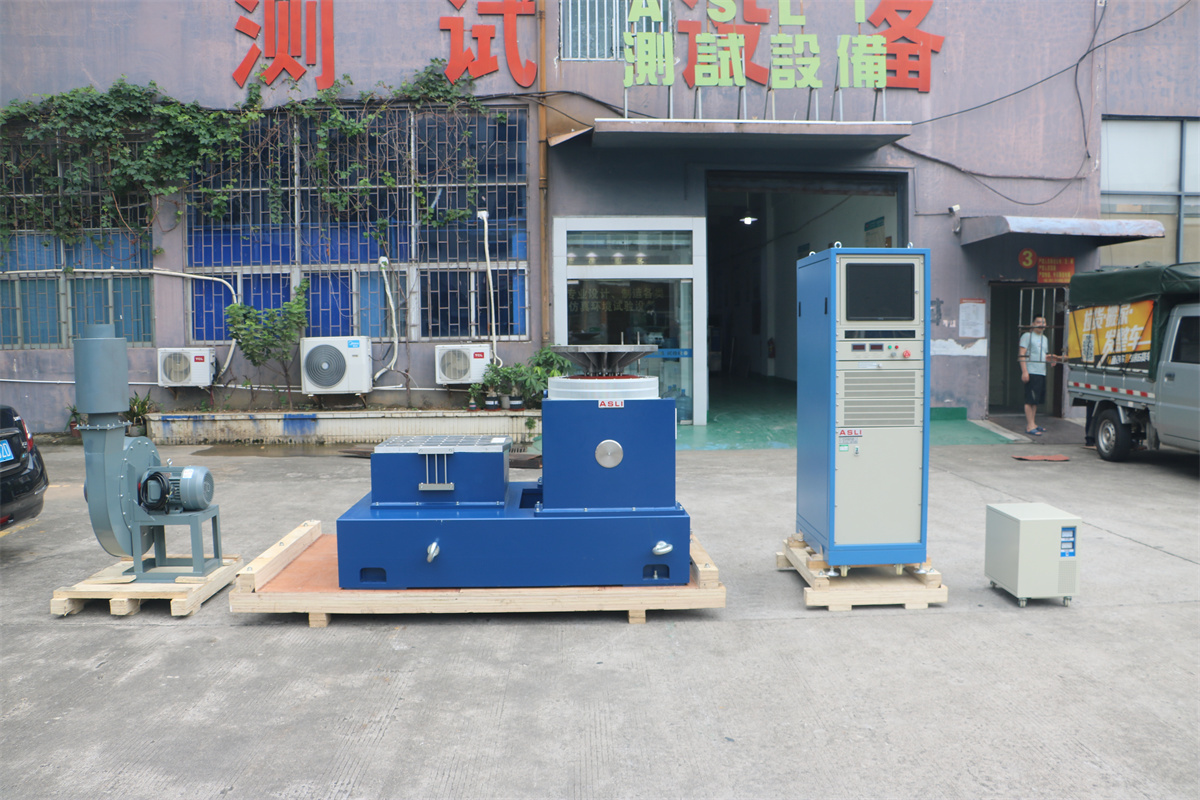

Detailed view of the electrodynamics vibration shaker assemblyClose-up of the vibration shaker moving coil and magnetic circuitSide view of the vibration shaker with trunnion isolation foundationVibration shaker control system and cooling duct designVibration shaker expander table and fixture setupComplete electrodynamics vibration shaker system installation
Other Products
Additional product offerings from ASLI including climatic and vibration testing equipment
Our Company
ASLI company facility and manufacturing workshop

ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber, etc.

Packing & Delivery
Packing and delivery preparation for vibration shaker equipment
Our Service
ASLI customer service and after-sales support team
FAQ

Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the High Frequency Vertical and Horizontal Electrodynamics Vibration Shaker, please don't hesitate to send your inquiry.

Product Highlights

ES-10 electrodynamic vibration shaker delivers 10000N sine force, 3-3000Hz, three-direction free vibration, ±0.5°C accuracy, IP55 protection. Supports sine, random and shock testing for automotive, plastic, textile, paper and lab applications. OEM/ODM/OBM customization, 1-year warranty.
