Factory Price Vertical Vibration Shaker

1
MOQ
Factory Price Vertical Vibration Shaker
Features Gallery Product Description Request A Quote
Features
Specifications
Protection Class: IP55
Vibration Directions: Three Directions Free Vibration
Acceleration Sensor: 1 Pc
Vibration Wave: Sine, Random, Shock
Input: 1 Channel
Sine Force: 10000N
Accuracy: +/-1%
Power: 20kw(26.82hp)
Voltage: 380 V
Frequency Range: 3-3000 Hz
Rated Acceleration: 1000 M/s2
Rated Speed: 1.8 M/s
Rated Displacement: 51 Mm
Max Loading: 270 Kg
Moving Coil Weight: 14 Kg
Highlight:

vertical vibration shaker system

,

factory price vibration shaker

,

industrial vertical vibration shaker
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description
Factory Price Vertical Vibration Shaker
Product Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Vertical Expander Technical Parameters Diagram
Technical Parameters of Horizontal Expander
Horizontal Expander Technical Parameters Diagram
High Frequency Vibration Test Machine Specifications
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with import-oriented composite body stiffness orientation for excellent eccentric load capacity
  • Trunnion isolation foundation for convenient mobile installation
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • New duct design enhancing cooling effect
  • High static stiffness and small dynamic stiffness balloon for improved bearing capacity and low-frequency performance
Detailed Product Images

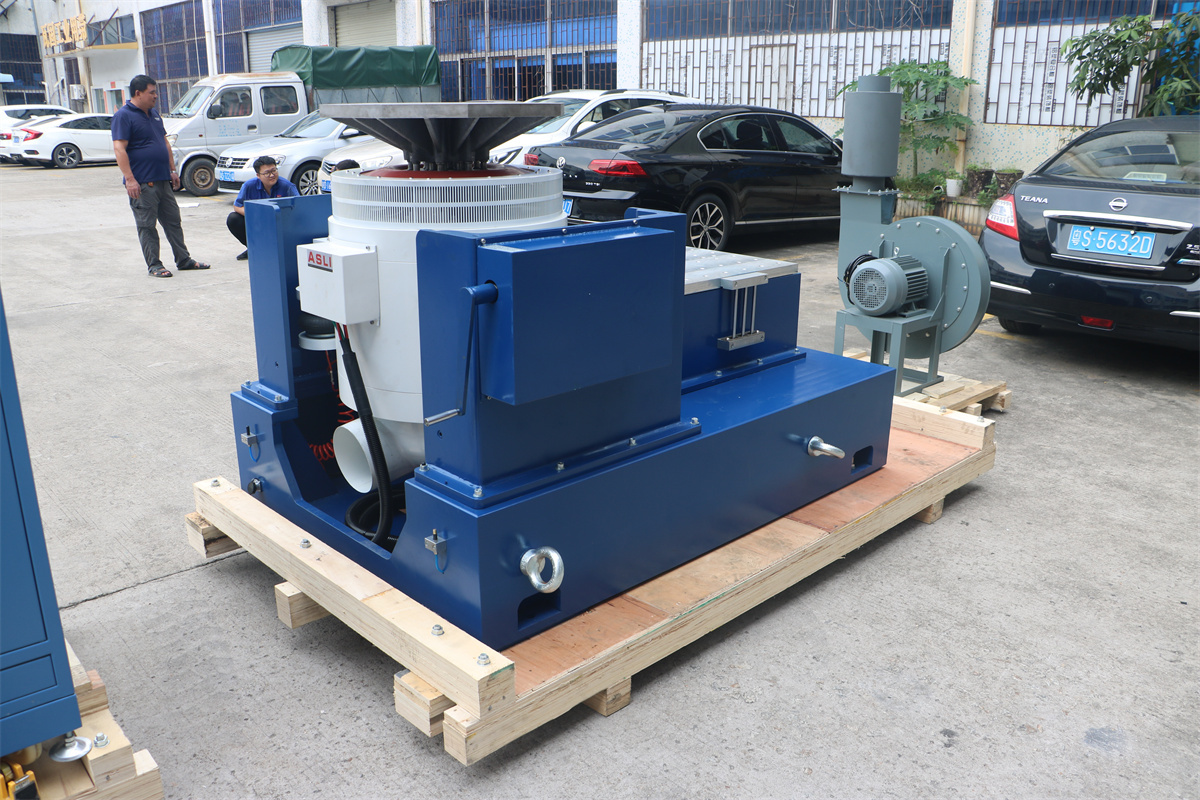

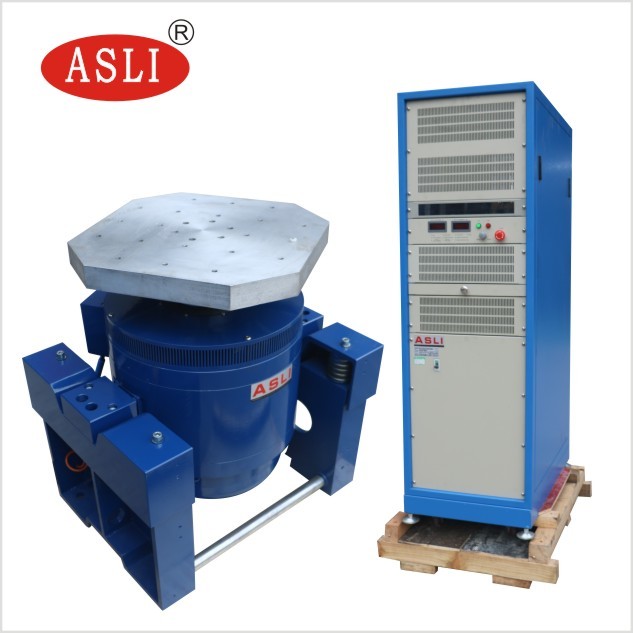

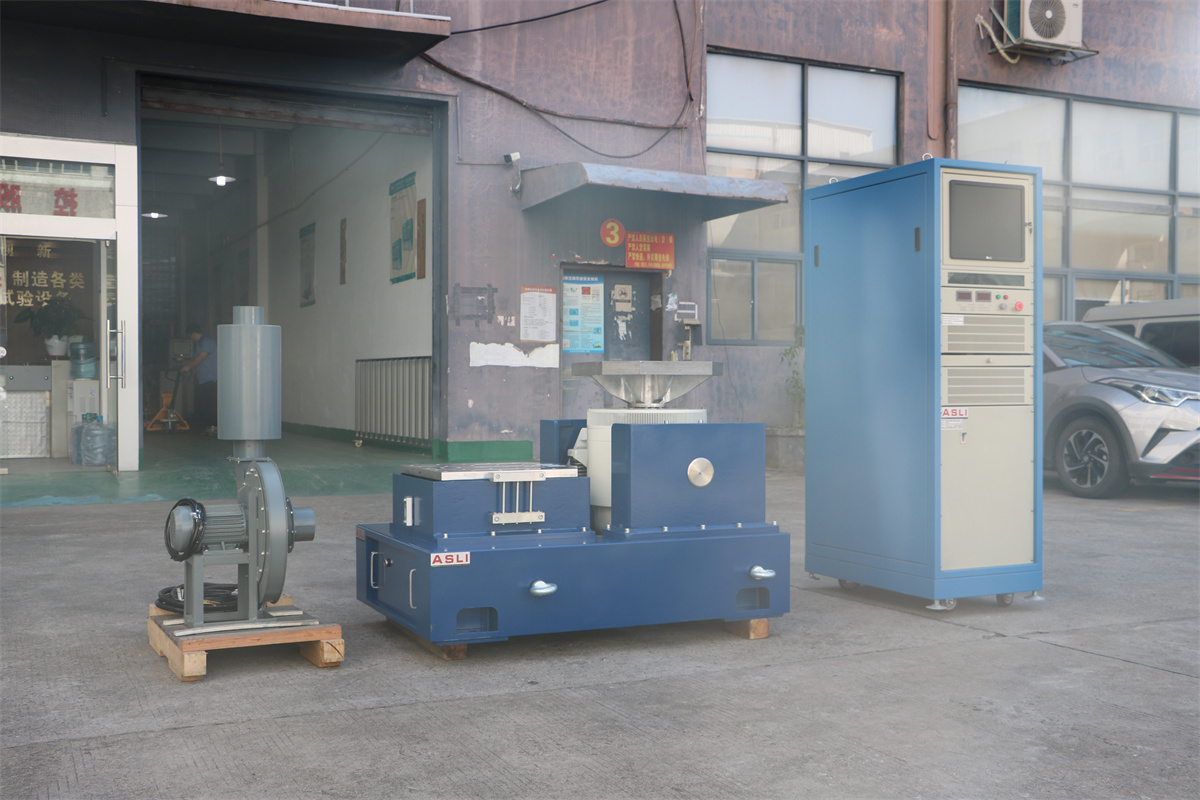

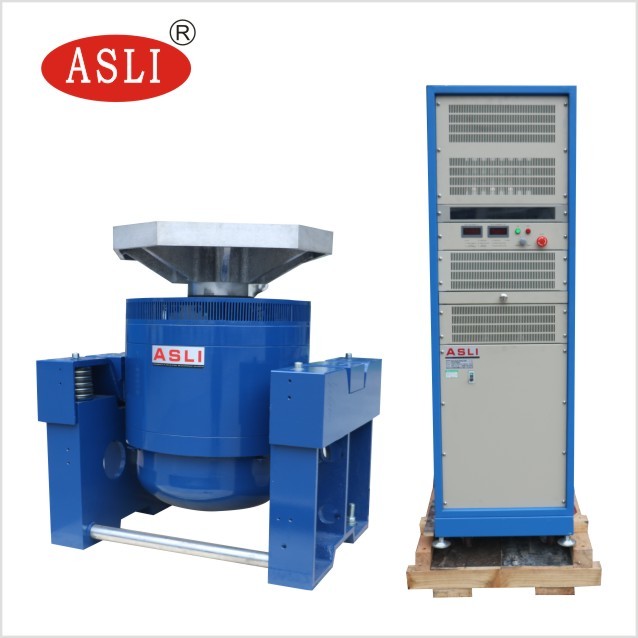

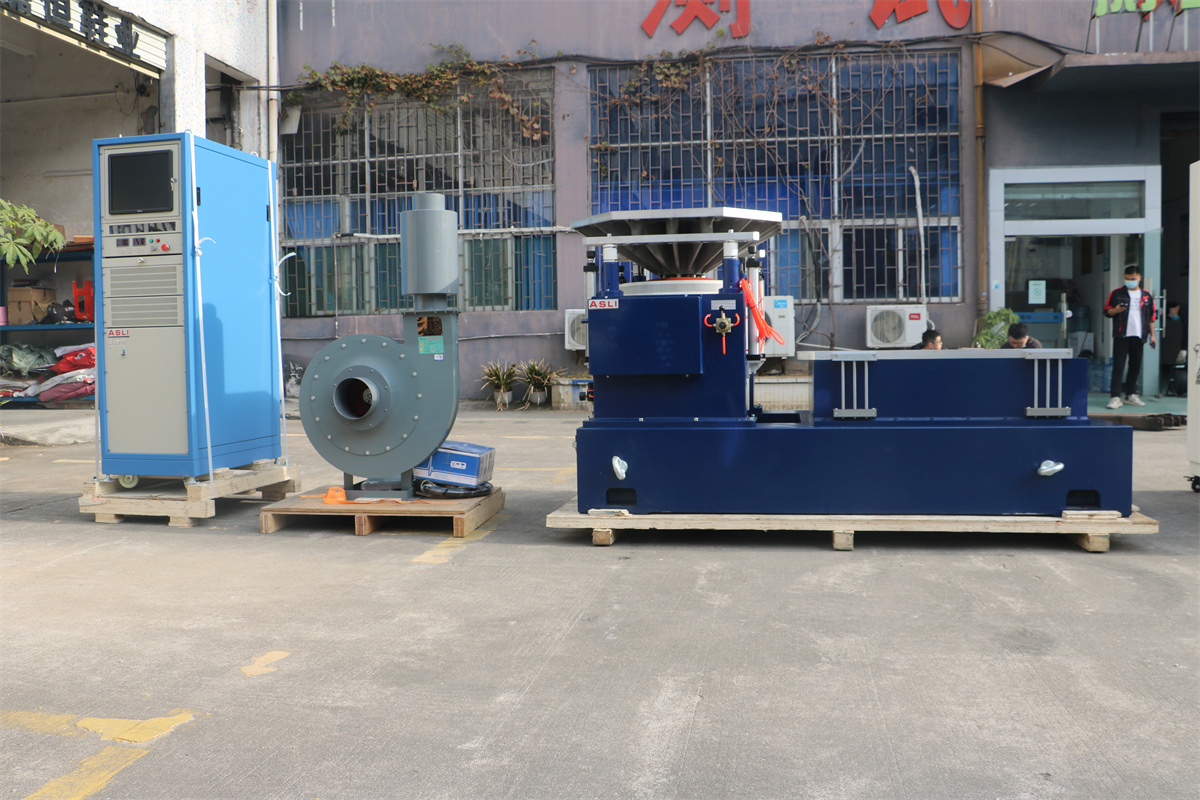

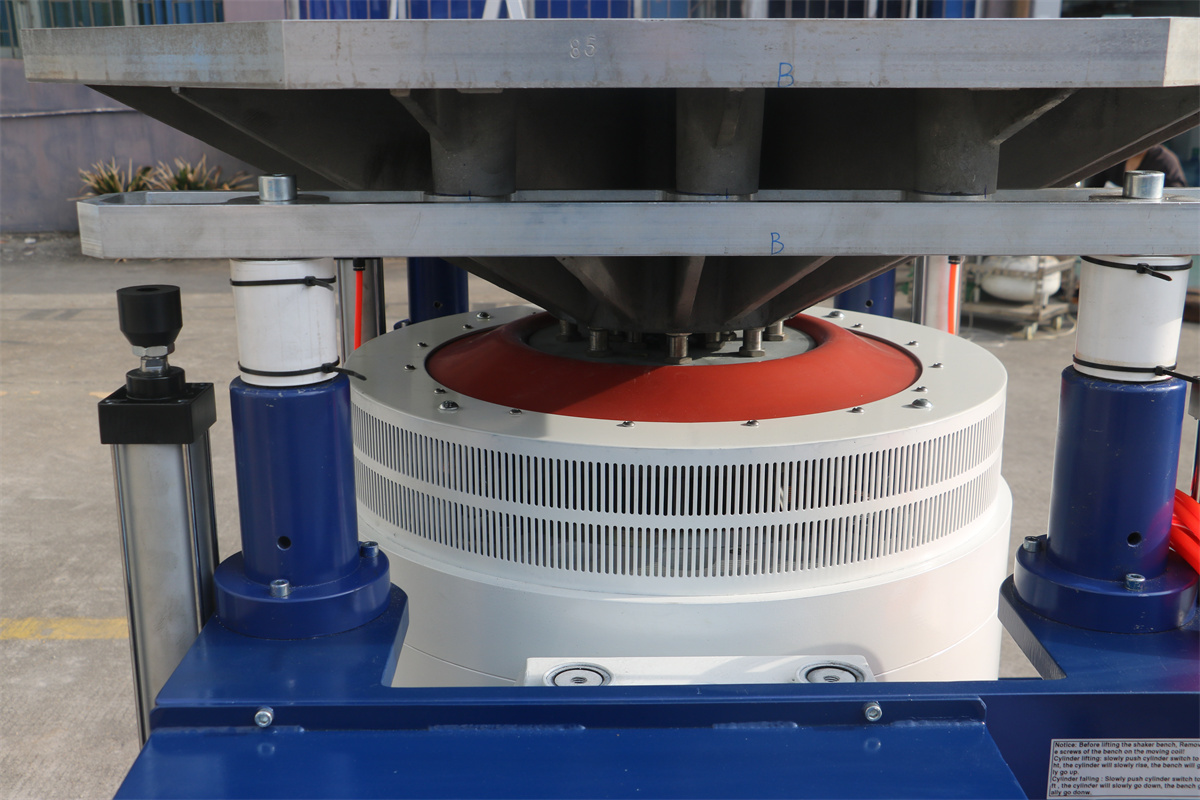

Vertical Vibration Shaker Detailed View 1 Vertical Vibration Shaker Detailed View 2 Vertical Vibration Shaker Detailed View 3 Vertical Vibration Shaker Detailed View 4 Vertical Vibration Shaker Detailed View 5 Vertical Vibration Shaker Detailed View 6
Other Products
Additional Vibration Testing Equipment
Our Company
ASLI Manufacturing Facility
ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber, etc.
Packing & Delivery
Product Packaging and Shipping Process
Our Service
Customer Service and Support
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about Factory Price Vertical Vibration Shaker, please don't hesitate to send your inquiry.
