10000N Electrodynamics Mechanical Vibrator Shaker

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Voltage: 380 V Power: 20KW
Accuracy: +/-10% Sine Force: 10000N
Vibration Directions: Three Directions Free Vibration Protection Class: IP55
Rated Random Force: 10000N Frequency Range: 3-3000 Hz
Rated Acceleration: 1000 M/s2 Rated Speed: 1.8 M/s
Rated Displacement: 51 P-p Mm Max Loading: 270 Kg
Moving Coil Weight: 14 Kg Moving Coil Dimension: Φ 240 Mm
Input Channels: 1 Channel
Highlight

10000N electrodynamics mechanical vibrator

,

mechanical vibrator shaker system

,

electrodynamics vibration shaker with warranty

Product Description

Product Overview

The 10000N Electrodynamics Mechanical Vibrator Shaker is a high-performance vibration testing system engineered for precise and reliable simulation of mechanical vibration environments. With a rated sine force of 10000N and a frequency range of 3–3000 Hz, it is suitable for a wide range of industrial and research applications, including product qualification, reliability testing, and structural dynamics analysis.

Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
Expander Technical Parameters
Vertical Expander
Technical parameters diagram of vertical expander for electrodynamic vibration shaker system
Horizontal Expander
Technical parameters diagram of horizontal expander for electrodynamic vibration shaker system
High Frequency Vibration Test Machine Specifications
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
  3. Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
  5. Advanced technology in the moving system ensures high reliability of the dynamic circle.
  6. New duct design enhances the cooling effect.
  7. Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table bearing capacity and improving low-frequency performance.
Detailed Images

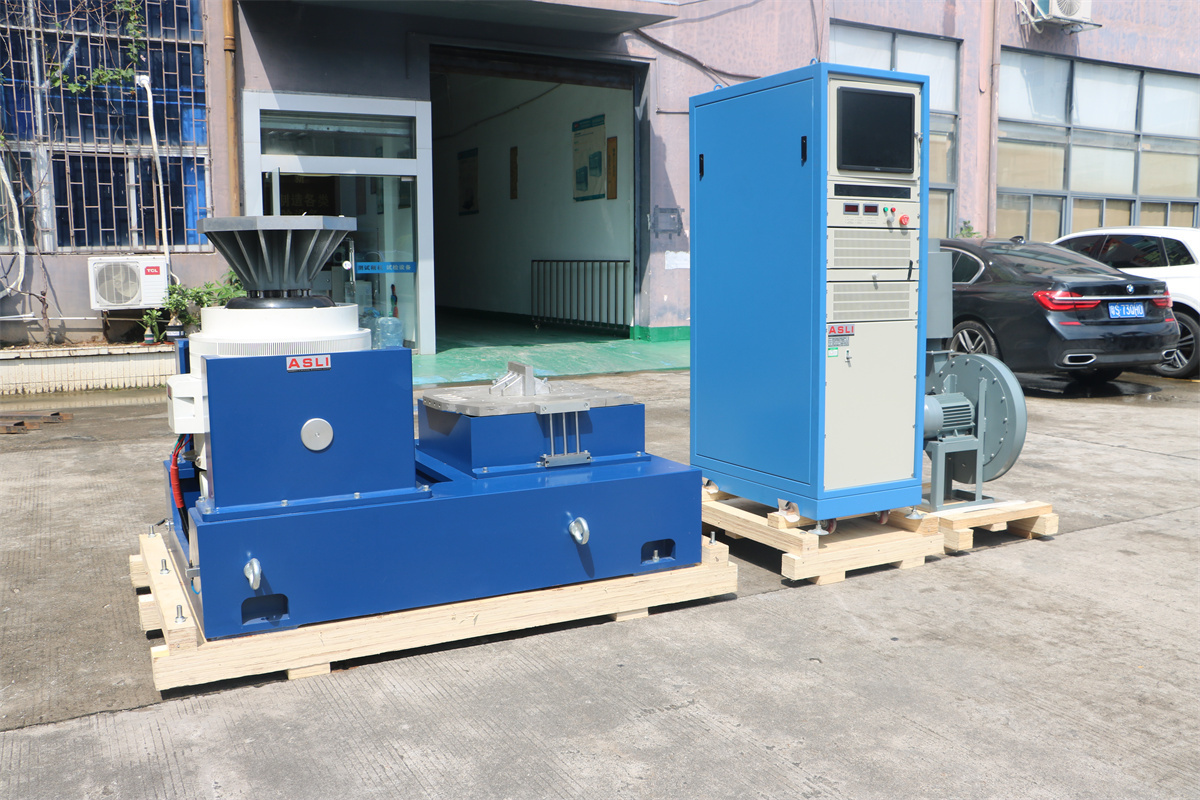

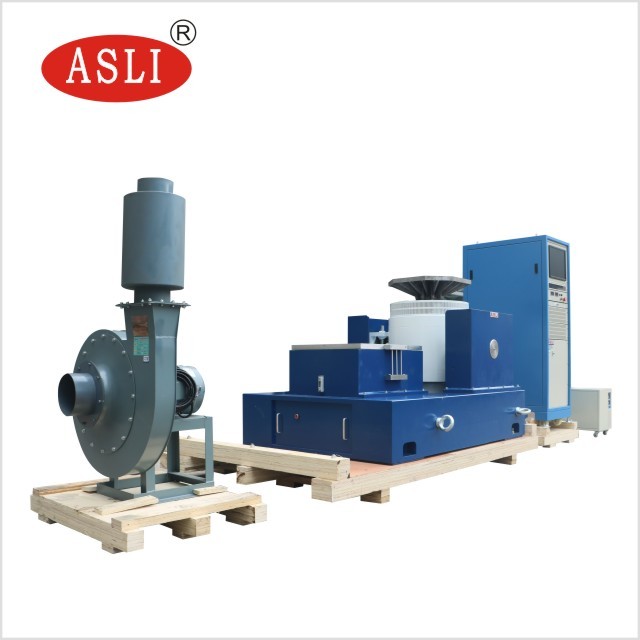

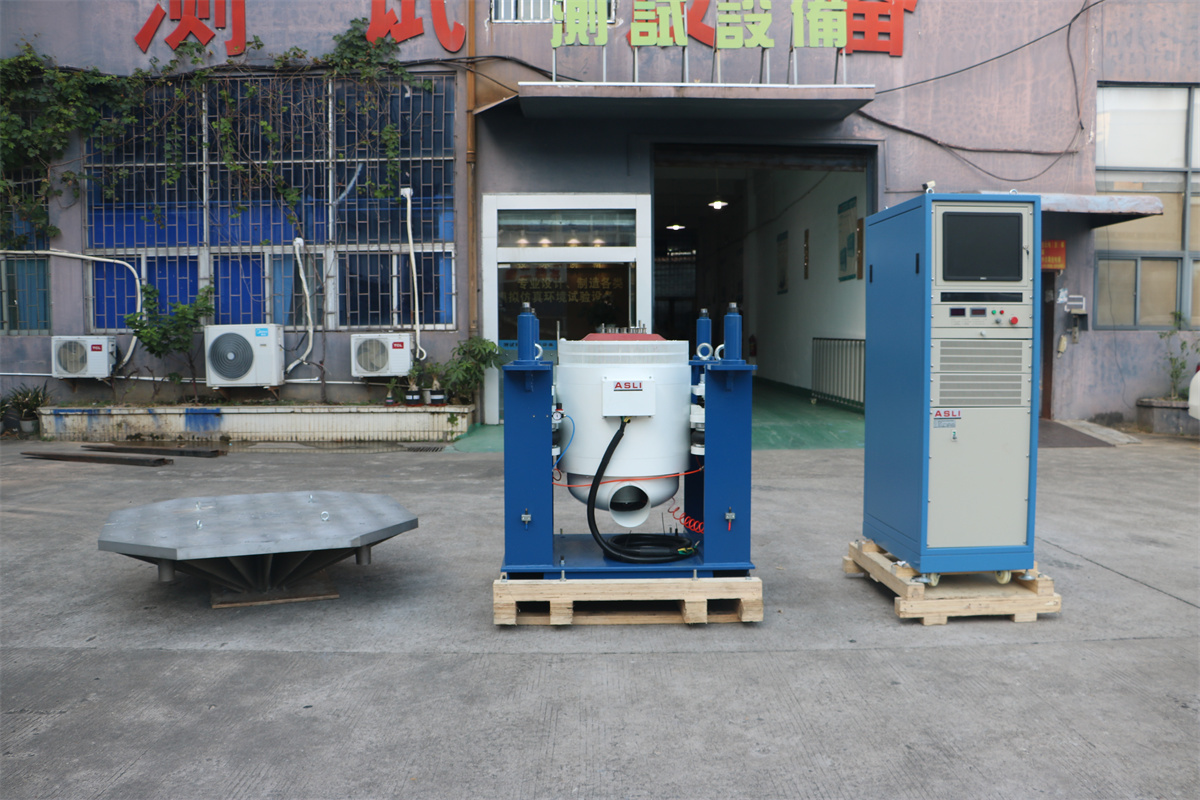

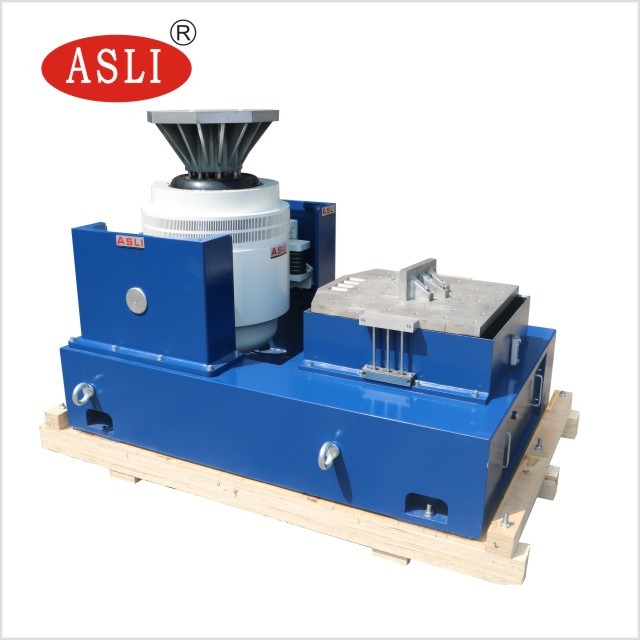

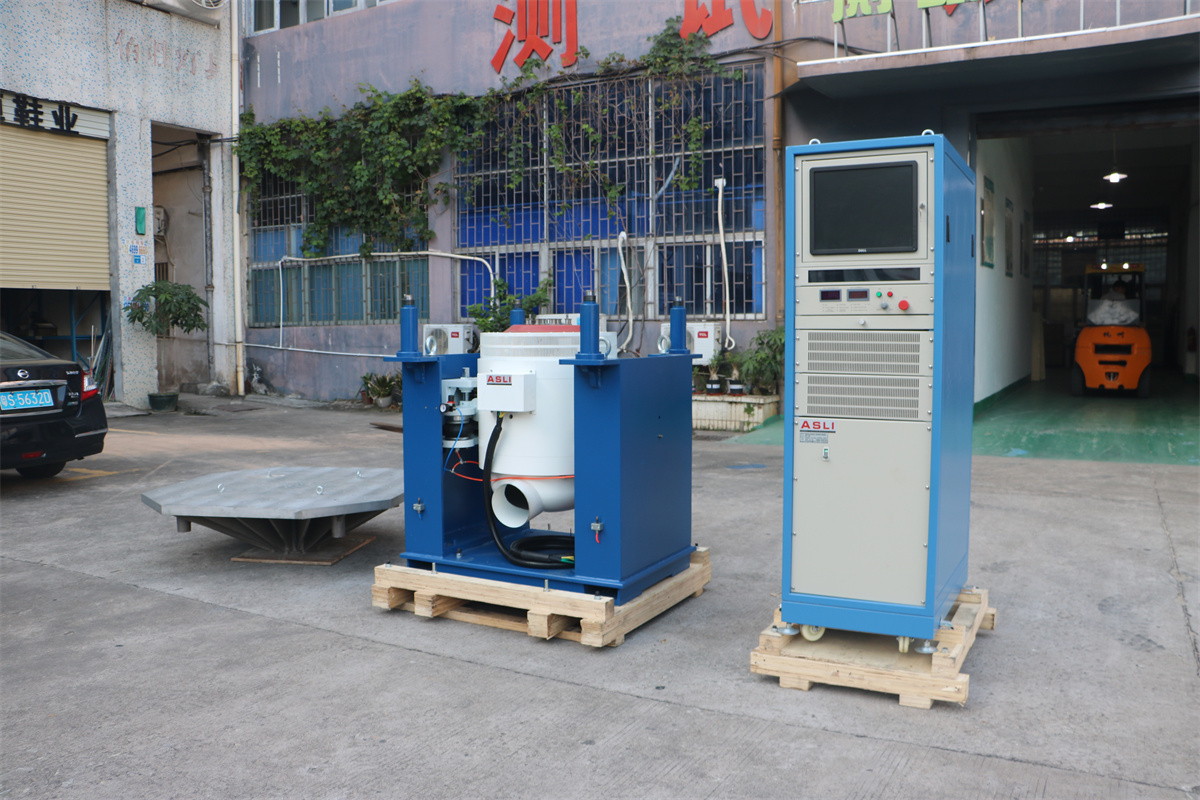

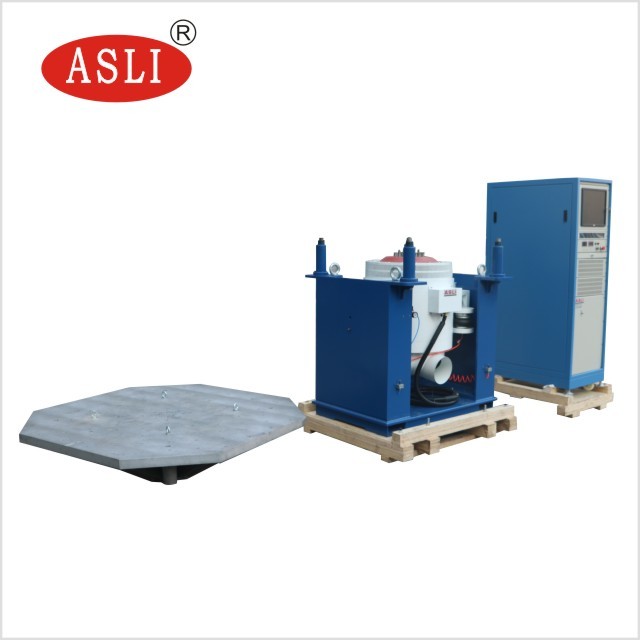

Close-up view of electrodynamic vibration shaker moving coil and armature assembly Side view of vibration shaker body showing trunnion and isolation mounting structure Detailed view of vibration shaker cooling duct and magnetic circuit assembly Vibration shaker system with horizontal expander and test fixture installed Electrodynamic shaker control system and power amplifier unit Complete vibration testing system setup with shaker, amplifier, and controller
Other Products
Overview of ASLI environmental and vibration testing equipment product line
Our Company
ASLI testing equipment manufacturing facility and production workshop

ASLI main products include climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.

Packing & Delivery
Export packing and delivery preparation of vibration shaker equipment in wooden crates
Our Service
ASLI after-sales service and technical support team
FAQ

Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the 10000N Electrodynamics Mechanical Vibrator Shaker, please don't hesitate to send your inquiry.

Product Highlights

10000N electrodynamic shaker with 3-3000Hz range, sine/random/shock waves, three-direction vibration, IP55 protection, and 270kg load capacity. High-accuracy 1-channel testing machine for automotive and lab use. OEM/ODM/OBM support, 1-year warranty.
