Professional High Frequency Vibration Shaker Table Test Machine for Laboratory and Industrial

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Accuracy: ±10% Power: 20KW, AC380V
Max. Speed: 1.6m/s Weight Of Moving Coil: 3.5 Kg
Protection Class: IP55 Vibration Direction: Vertical+horizontal Vibration
Voltage: 380 V Power Of Cooling Fan: 3kw
Rated Sine Force: 3000 N Rated Random Force: 3000 N
Frequency Range: 3-3500 Hz Rated Acceleration: 1000 M/s2
Rated Displacement: 25 Mm Max. Loading: 100 Kg
Dimension Of Moving Coil: Φ150 Mm
Highlight

high frequency vibration shaker table

,

industrial vibration test machine

,

laboratory vibration shaker system

Product Description

Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
ES-1201200001200003–220010001.851110090Φ500
Expander Specifications
Technical Parameters of Horizontal Expander
Technical parameters table of the horizontal expander for the vibration shaker table
Technical Parameters of Vertical Expander
Technical parameters table of the vertical expander for the vibration shaker table
Product Pictures

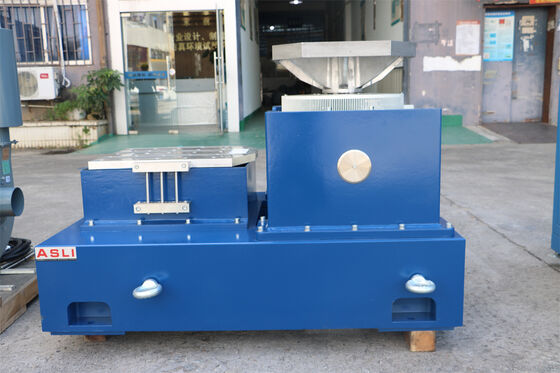

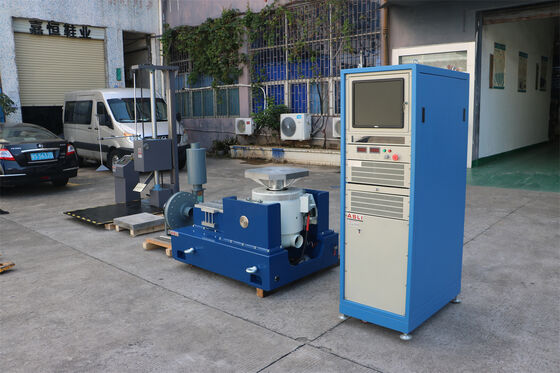

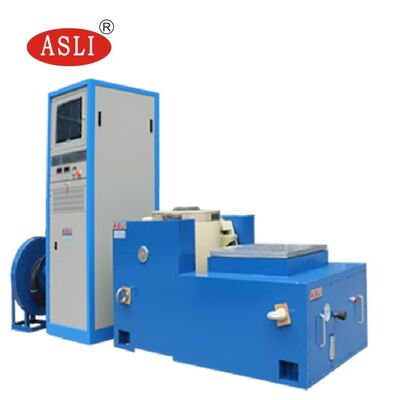

Professional high frequency vibration shaker table test machine front view Vibration shaker table test machine side view with control cabinet Close-up of the vibration shaker table moving coil and mounting platform Vibration shaker table system setup in a laboratory environment
Packaging & Shipping

Package: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

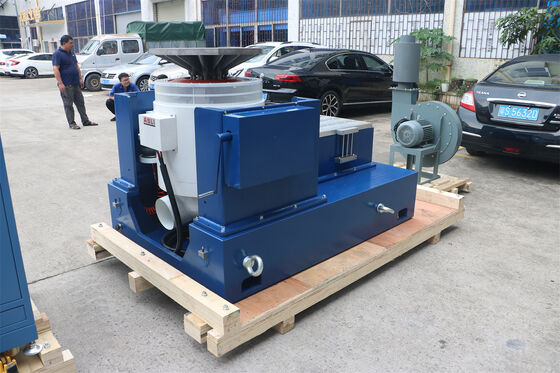

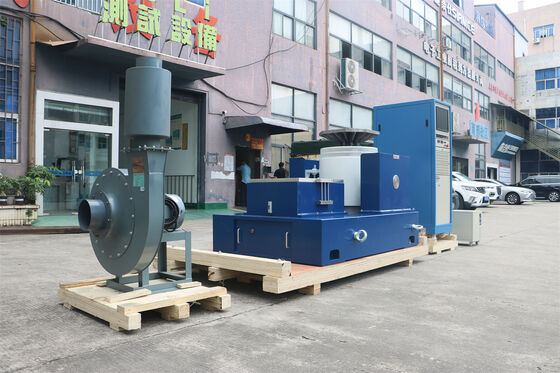

Vibration shaker table packed in PP film, foam, and export plywood case for shipping
Our Services
Our Service
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photos before shipment.
  4. Reply within 48 hours and provide a solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period of 12 months.
Our Concept
  1. Client is first. We strive to bring maximum profit to our clients and offer the best quality products.
  2. Credibility is the most important.
  3. Quality control is our life.
  4. Great sense of responsibility.
Company Information

Short introduction about ASLi factory: We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The vertical mechanical vibration testing machine is one of our star products, and we have obtained CE certification for this machine.

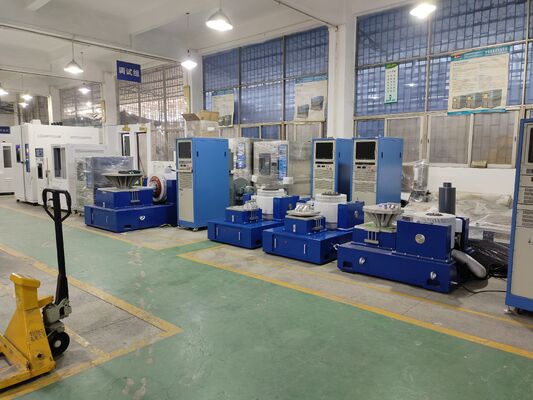

ASLi factory workshop producing vibration shaker table test machines
FAQ

Q1. What are your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
