Vibration Testing Machine Electrodynamic Shaker Price

1
MOQ
Vibration Testing Machine Electrodynamic Shaker Price
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380 V
Power: 20KW(26.82hp)
Vibration Wave: Sine, Random, Shock
Vibration Directions: Three Directions Free Vibration
Accuracy: +/-10%
Sine Force: 10000N
Protection Class: IP55
Input: 1 Channel
Frequency Range: 3-3500 Hz
Rated Acceleration: 1000 M/s2
Rated Speed: 1.6 M/s
Rated Displacement: 25 Mm
Max Loading: 100 Kg
Moving Coil Weight: 3.5 Kg
Moving Coil Dimension: Φ150 Mm
Highlight:

electrodynamic vibration shaker machine

,

vibration testing machine price

,

vibration shaker system with warranty
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description
Vibration Testing Machine Electrodynamic Shaker Technical Specifications
Professional electrodynamic shaker systems designed for comprehensive vibration testing across various industrial applications.
Performance Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Vertical expander technical diagram for vibration testing machine
Technical Parameters of Horizontal Expander
Horizontal expander technical specifications for electrodynamic shaker
High Frequency Vibration Testing Machine Specifications
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Dual magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation for dedicated hormone use with convenient mobile installation
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • Innovative duct design enhancing cooling efficiency
  • Superior static stiffness and minimal dynamic stiffness ballooning for improved bearing capacity and low-frequency performance
Detailed Product Images

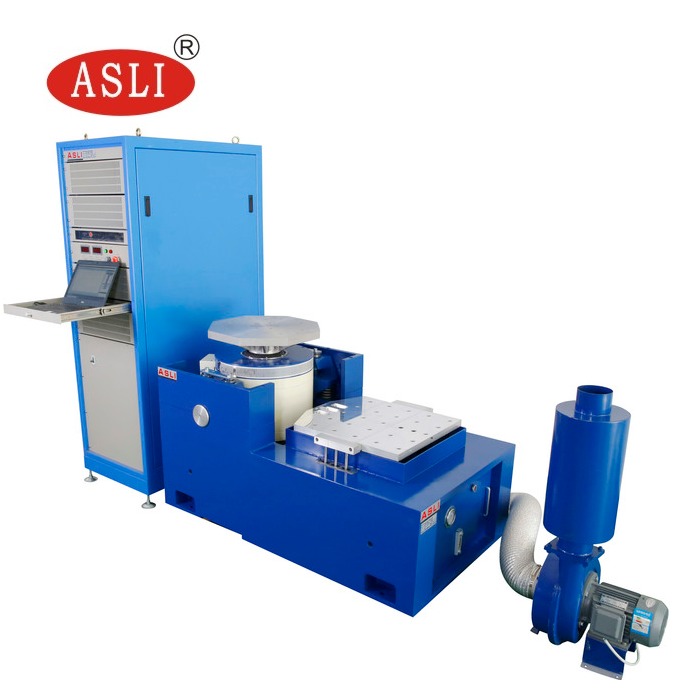

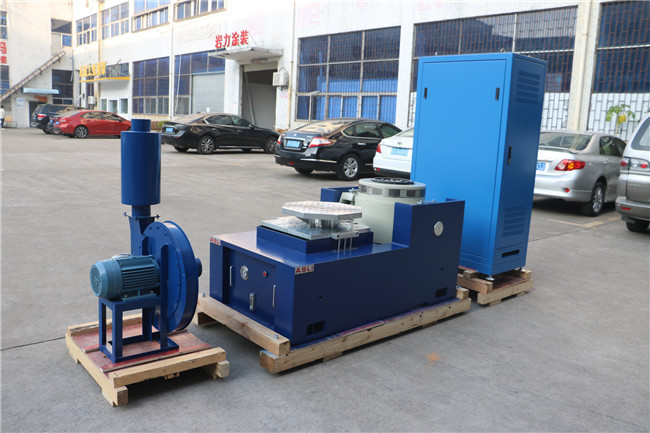

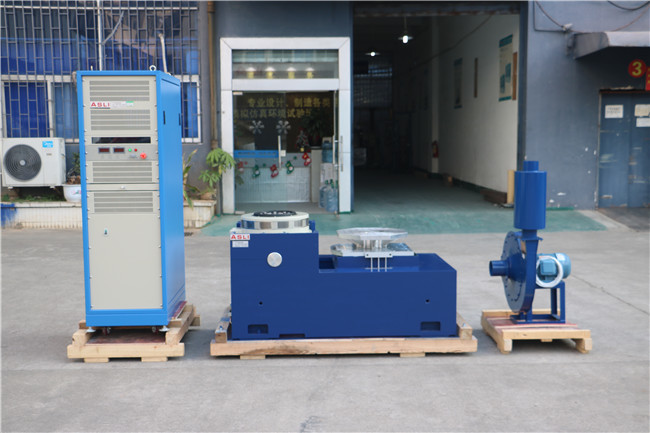

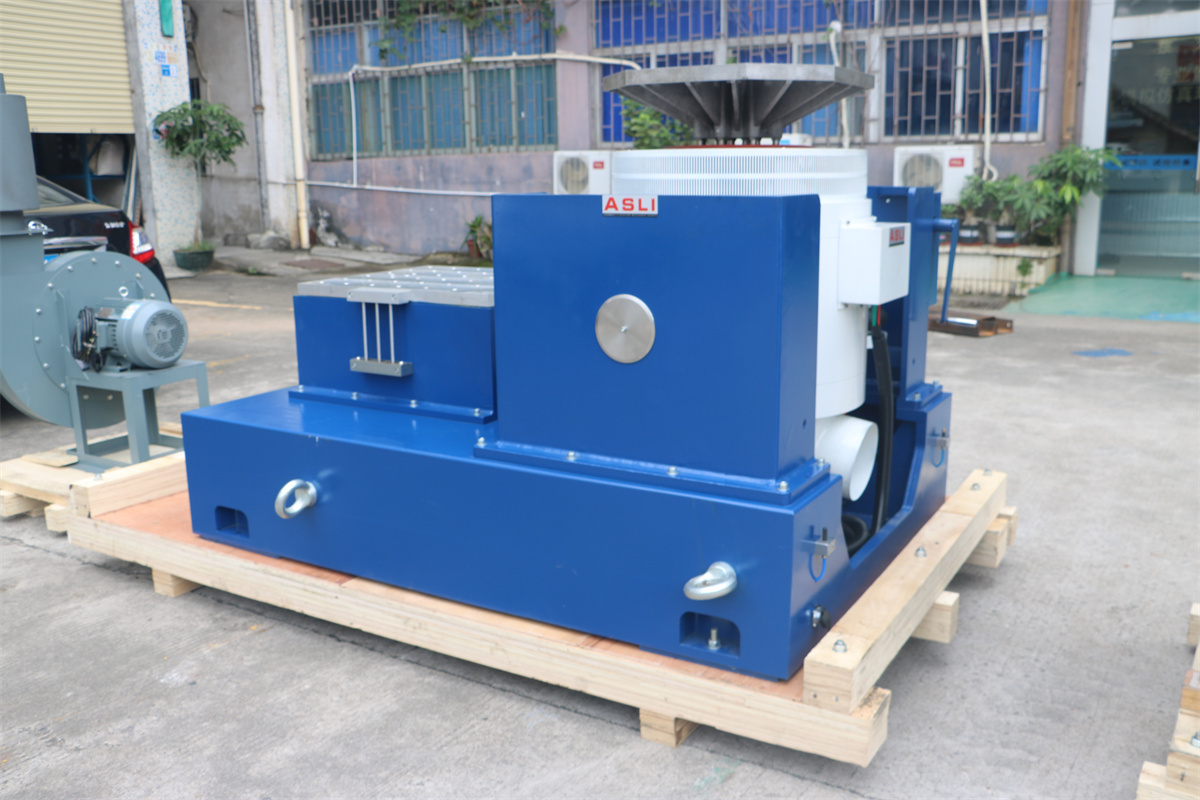

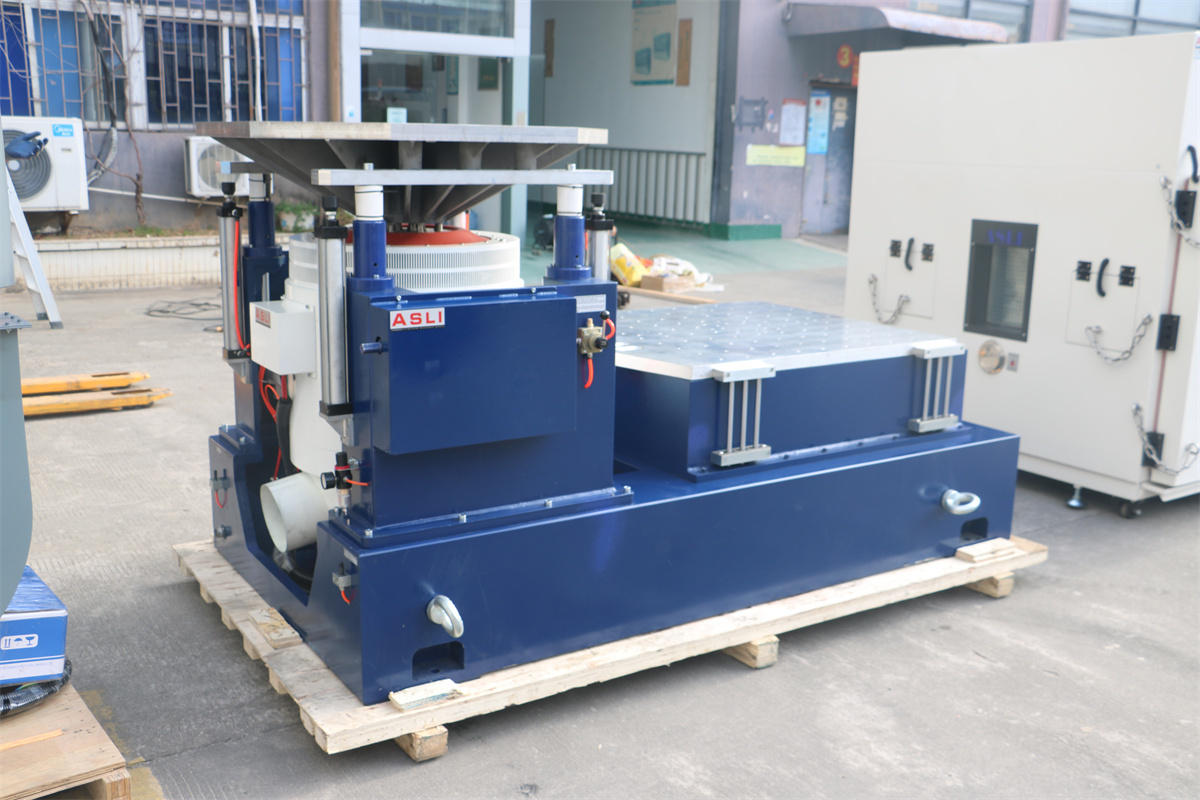

Detailed view of vibration testing machine components Internal mechanism of electrodynamic shaker Control system and interface of vibration tester Vibration testing machine assembly details Quality testing of shaker components Final assembly of vibration testing equipment
Related Testing Equipment
Other environmental testing equipment products
About Our Company

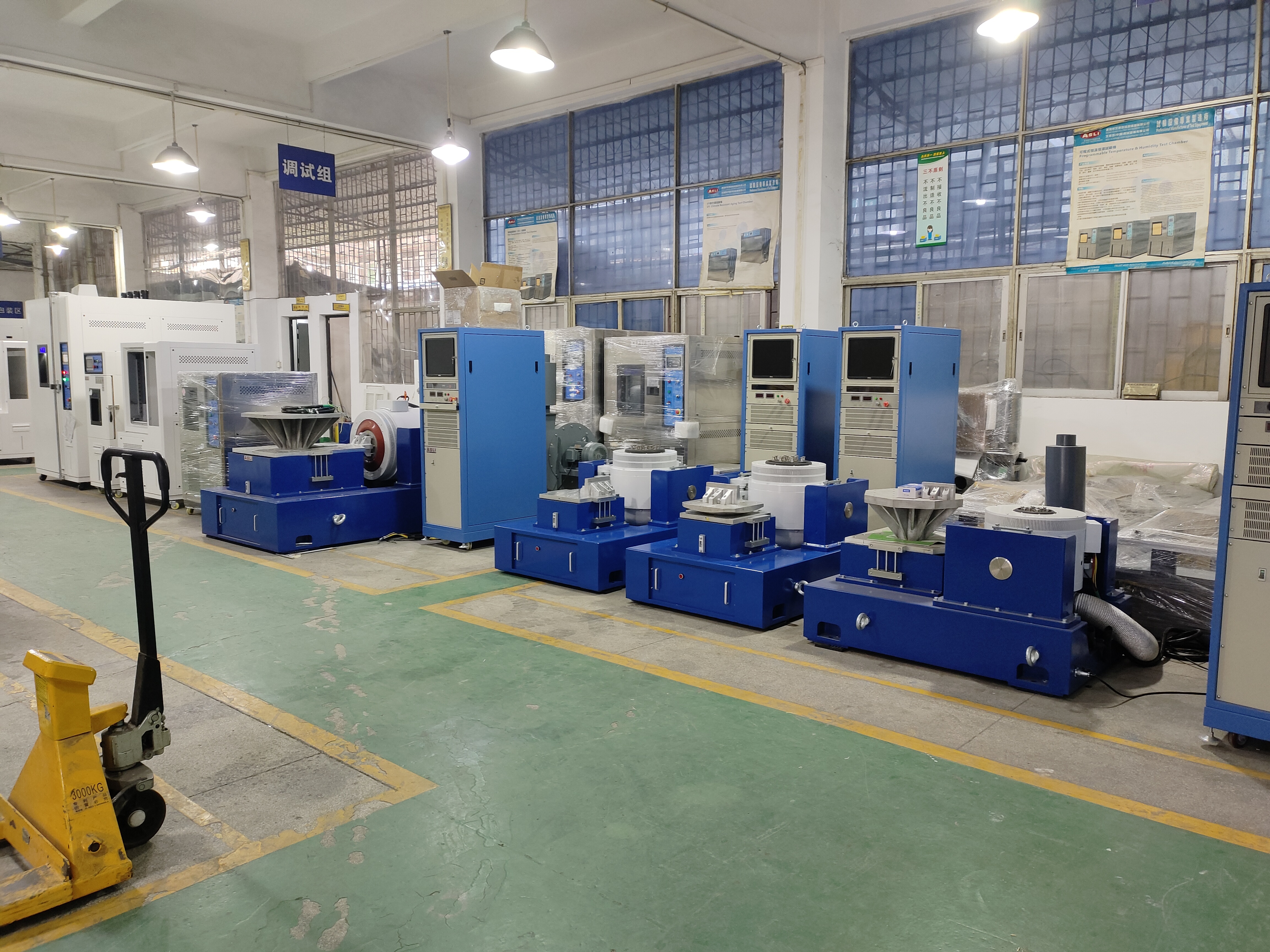

ASLI manufacturing facility and company overview
ASLI specializes in comprehensive testing equipment including climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.
Packaging & Delivery
Professional packaging and secure delivery process
Customer Service
Professional customer service and technical support
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about Vibration Testing Machine Electrodynamic Shaker pricing and specifications, please don't hesitate to send your inquiry.
