1000kg.f Exciting Force Testing Vibration Shaker

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Protection Class: IP55 Rated Sine Force: 20000N
Rated Random Force: 20000N Rated Speed: 2.0m/s
Rated Displacement: 51mm Power Supply: AC380V
Accuracy: +/-10% Power: 20KW
Control Method: PC Vibration Method: Sine &Random Vibration
Vibration Direction: Vertical Vibration Voltage: 380 V
Frequency: 3~3500HZ Max. Acceleration: 100g
Max. Loading: 300Kg
Highlight

1000kg.f vibration shaker

,

exciting force testing shaker

,

vibration shaker system with warranty

Product Description

Electrodynamic Vibration Shaker Applications

As a manufacturer of high-frequency vibration test machine series products, we adopt advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. These systems are capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.

These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.

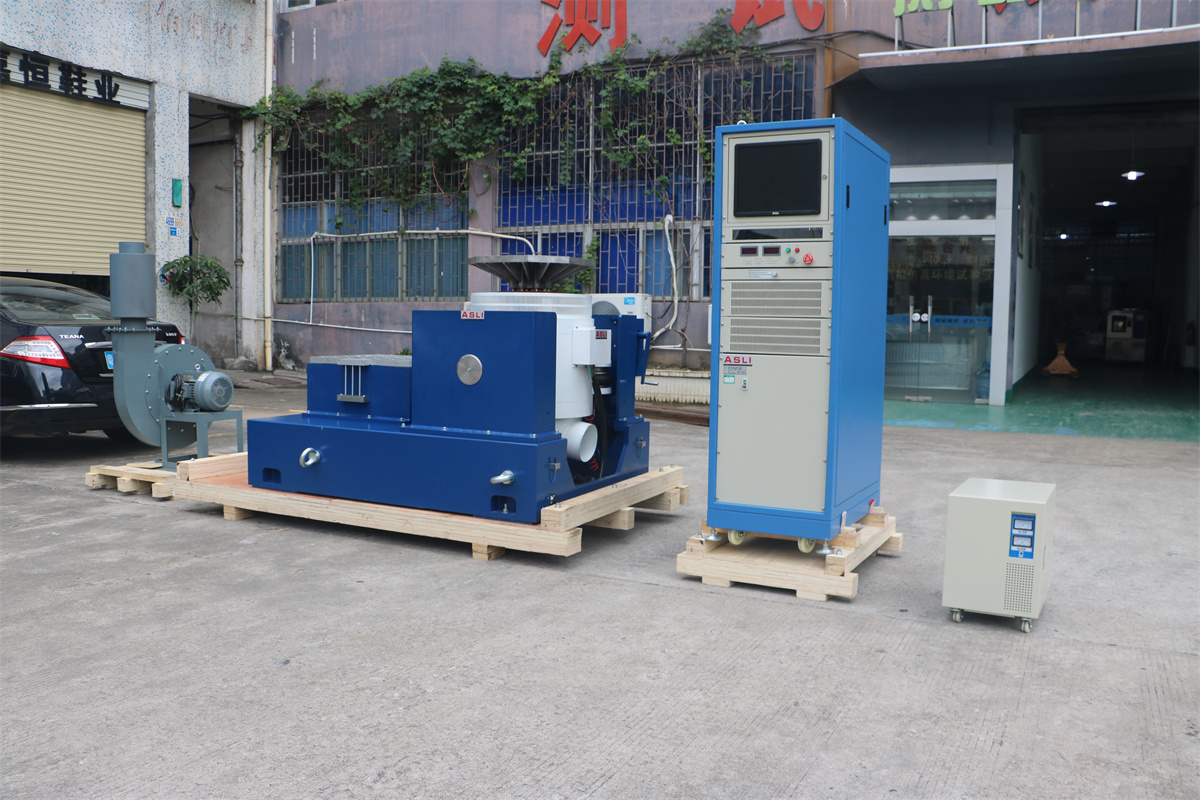

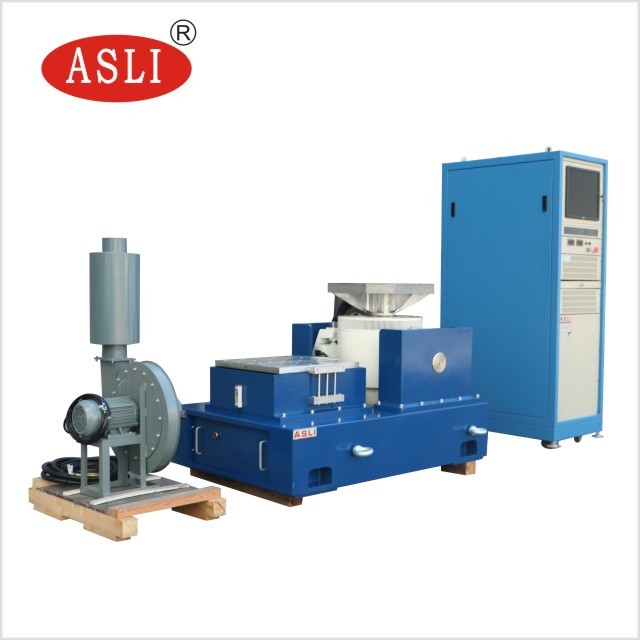

Electrodynamic vibration shaker system with control cabinet and testing platform
Vibration Test Machine Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-1100010003–35004001.225702.5Φ150
ES-2200020003–35008001.625702.5Φ150
ES-2a200020003–35003001.640708Φ230
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
ES-6060000600003–270010001.85175060Φ450
ES-1001000001000003–250010001.851100090Φ450
ES-1201200001200003–220010001.851110090Φ500
ES-1601600001600003–210010001.8511500150Φ600
ES-2002000002000003–200010001.8512500200Φ650
ES-3503500003500003–170010001.8514500300Φ87
Key Features of the High-Frequency Vibration Tester with Magnesium Alloy Table
  1. Well-designed dynamic circle skeleton, providing a higher stage axial resonance frequency.
  2. Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure.
  3. Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, offering strong eccentric load capacity.
  4. Trunnion isolation foundation dedicated to vibration isolation, with convenient mobile installation.
  5. Advanced moving system technology ensures high reliability of the dynamic circle.
  6. New duct design enhances the cooling effect.
  7. Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.
Expander Technical Parameters
Horizontal Expander
Technical parameters diagram of the horizontal expander for vibration shaker
Vertical Expander
Technical parameters diagram of the vertical expander for vibration shaker
Product Pictures

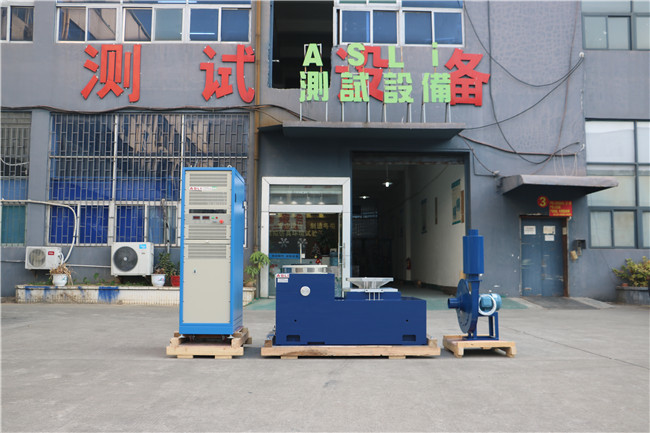

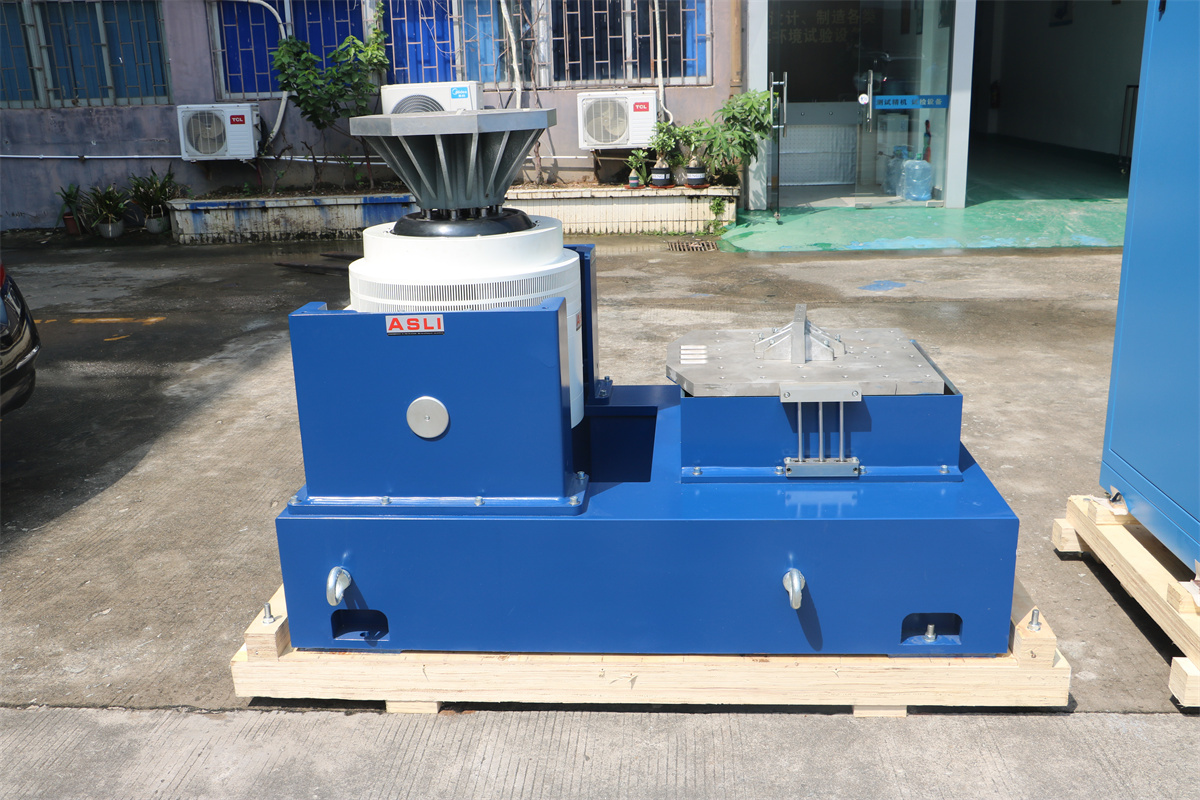

Electrodynamic vibration shaker product front view

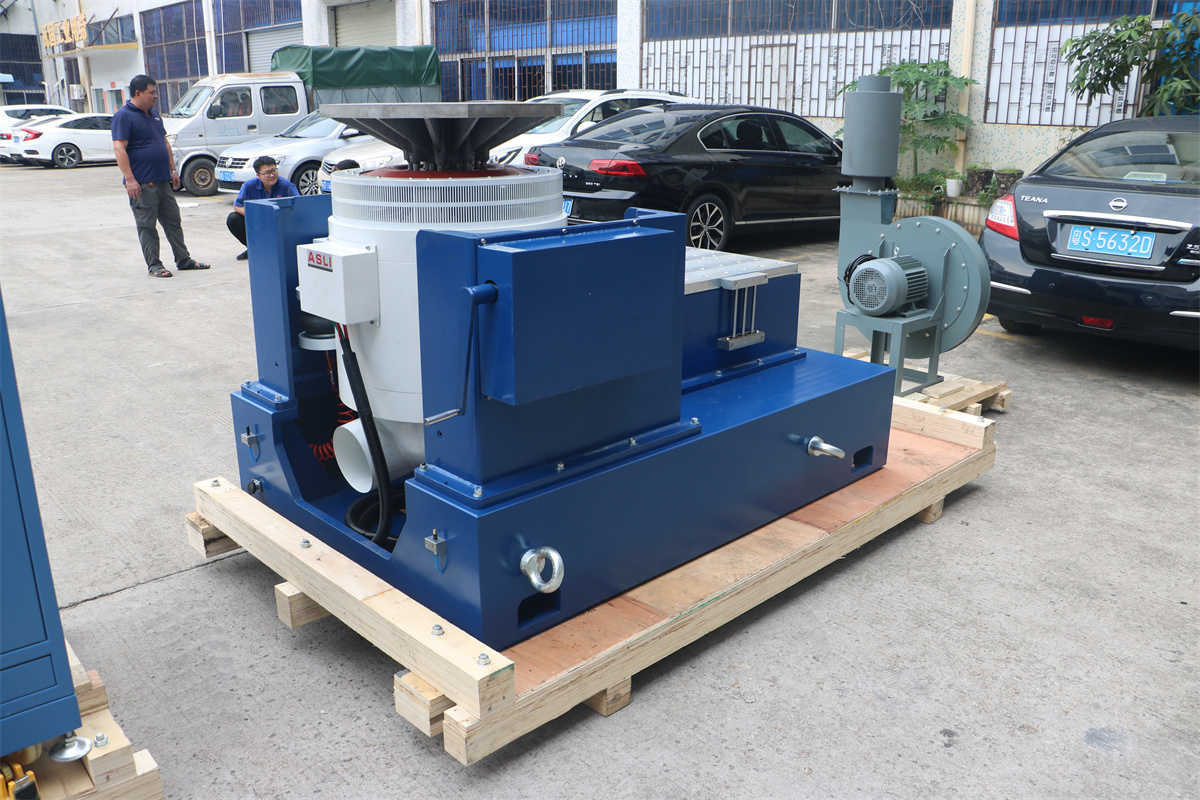

Electrodynamic vibration shaker product side view with control system
Packaging & Shipping
Certificates
  • China official third-party calibration report
  • CE certification
Packaging Process
  1. PP film first
  2. Vacuum package
  3. PP film again
  4. 10 mm thickness PU foam to avoid collision
  5. Strengthened plywood case
  6. Standard ASLI case mark
Packing & Shipping Detail
Vibration test machine packing and shipping detail with plywood case
Our Services
Service Commitment
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photo before shipment.
  4. Reply within 48 hours and provide solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period of 12 months.
Customers' Visit to ASLI Company
Customers visiting ASLI company factory for vibration shaker inspection
Our Advantages
  1. Professional technology support.
  2. Full experience of large numbers of container loading in Chinese sea ports.
  3. Fast shipment by reputed shipping lines.
  4. Best service after shipment with email follow-up.
  5. We are a professional test equipment manufacturer in China with excellent experience and skills, also offering best quality products.
Exhibition
ASLI company exhibition booth displaying vibration testing equipment
Certifications
CE certification for electrodynamic vibration shaker
Third-party calibration report certificate for vibration test machine
Company Information

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The 1000 kgf exciting force testing vibration shaker is one of our star products, and we have obtained CE certification for this machine.

ASLI factory overview showing manufacturing facility for testing equipment
ASLI Main Test Equipment

Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/HAST chambers (highly accelerated stress test chambers), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, environmental combined vibration chambers, and more.

FAQ
1. Is your company a trading company or a factory?

We are a factory with 28 years focusing on the test instruments field and 4 years of exporting experience.

2. After an order is placed, when will it be delivered?

Generally about 20 days. If we have finished products in stock, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty and after-sales services?

We offer a 12-month warranty. After the warranty period, our professional after-sale service team will provide perfect technical support and help customers solve problems encountered while using our products, handling guest problems and complaints in a professional and timely manner.

Related Product
Related vibration testing equipment product from ASLI

Please feel free to contact us if you have any questions or needs regarding the 1000 kgf exciting force testing vibration shaker.

Product Highlights

1000kg.f electrodynamic vibration shaker delivers 20000N sine/random force, 3-3500Hz, 100g acceleration, IP55 protection and PC control for reliable sine, random and shock testing. CE certified, OEM/ODM supported, 1-year warranty.
