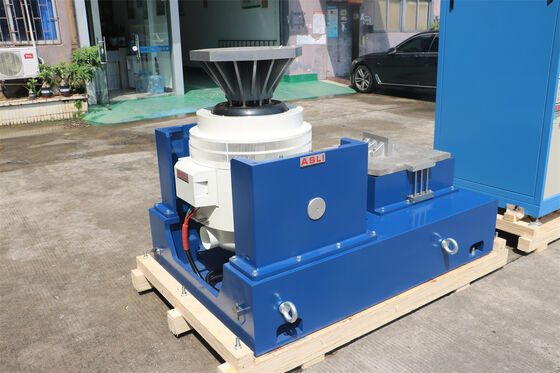

Electrodynamics Shaker Tester Dynamic Shaker

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $26,890

Product Details


Vibration Force: 20KN Vibration Direction: Vertical Vibration
Acceleration: 100g Frequency: 3~3500hz
Control Method: Computer Control Protection Class: IP55
Voltage: 380 V Power: 20KW(26.82hp)
Accuracy: +/-10% Moving Coil Weight: 30kg
Rated Sine Force: 20000N Frequency Range: 3-3000Hz
Rated Acceleration: 1000m/s2 Rated Speed: 1.8m/s
Max. Loading: 300Kg
Highlight

Electrodynamics Shaker Tester vibration system

,

Dynamic Shaker vibration testing equipment

,

Vibration Shaker System with warranty

Product Description

Product Description

The Electrodynamics Shaker Tester Dynamic Shaker is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves industries including aerospace, communications, electronics, electrical, home appliances, and more. This test platform meets a wide range of specifications, including IEC, MIL-STD, JIS, ASTM, and others.

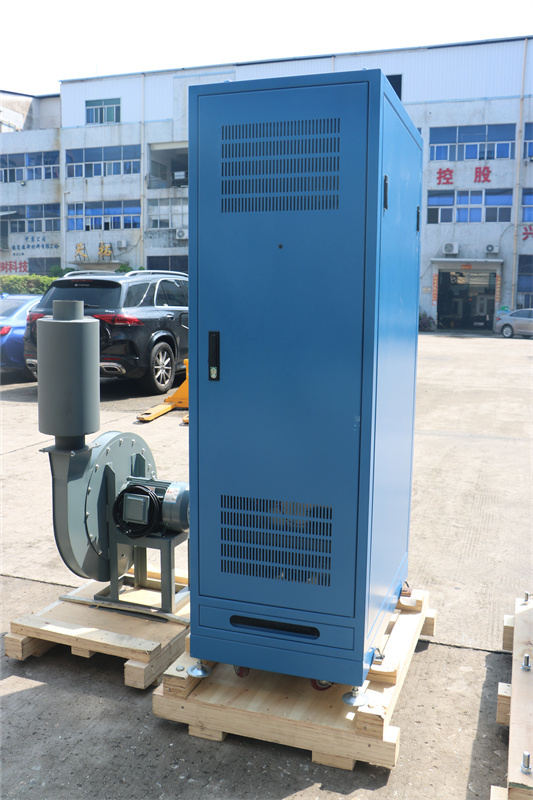

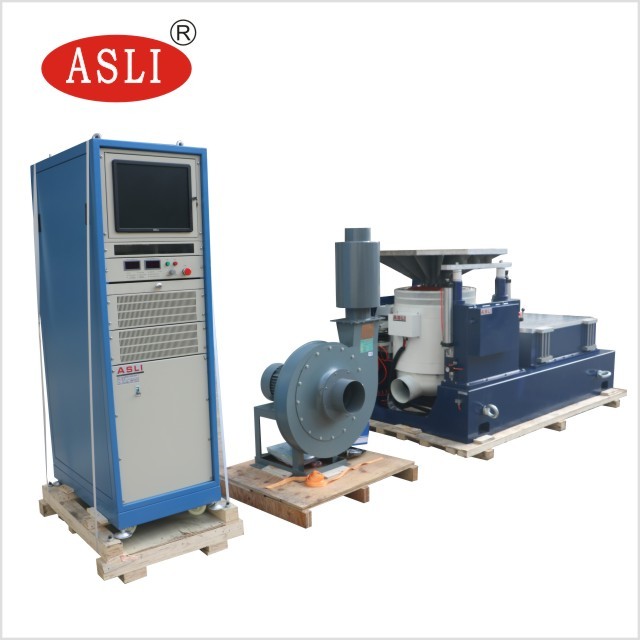

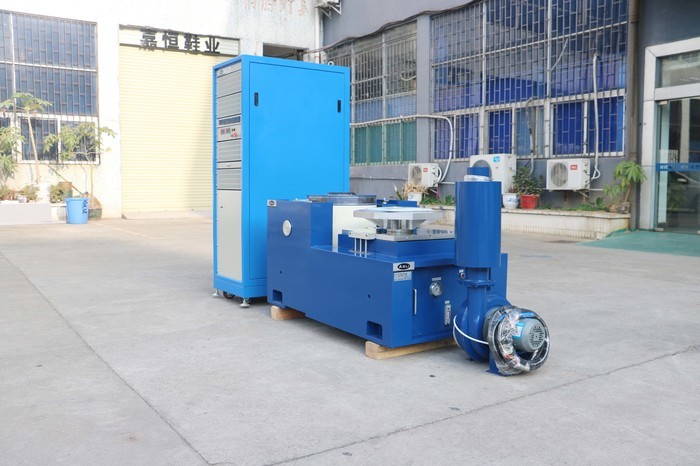

Electrodynamics Shaker Tester Dynamic Shaker system with control cabinet and vibration table
Specifications
ModelES-10ES-20ES-30ES-40
Rated Sine Force (N)10000200003000040000
Frequency Range (Hz)3–30003–30003–28003–2800
Rated Acceleration (m/s²)1000100010001000
Rated Speed (m/s)1.81.81.81.8
Rated Displacement (p-p) mm708011100100
Max. Loading (Kg)270300450500
Moving Coil (Kg)14304050
Dimension of Moving Coil (mm)Φ240Φ320Φ450Φ450
Product Features
  • Flexible suspension system and straight-line guide provide strong bearing capacity, excellent guidance performance, and high stability.
  • The central load airbag offers high static stiffness and low dynamic stiffness, delivering strong bearing capacity and excellent dynamic performance.
  • Rapid self-examination diagnostics and chain protection ensure high safety and reliability.
  • The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
  • Provides different horizontal and vertical expansion platforms for versatile testing setups.
  • Compatible with all types of vibration controllers for simple operation.
Horizontal Stand Features
  • Small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the machine bench.
  • Horizontal bench and vibration bench are an integral type with a perfect structure, convenient to install and adjust.
  • Static pressure track, V-shape, with capacity for slope-resistant and bias-loading resistant operation.
  • Built-in oil pump for a good structure and easy operation.

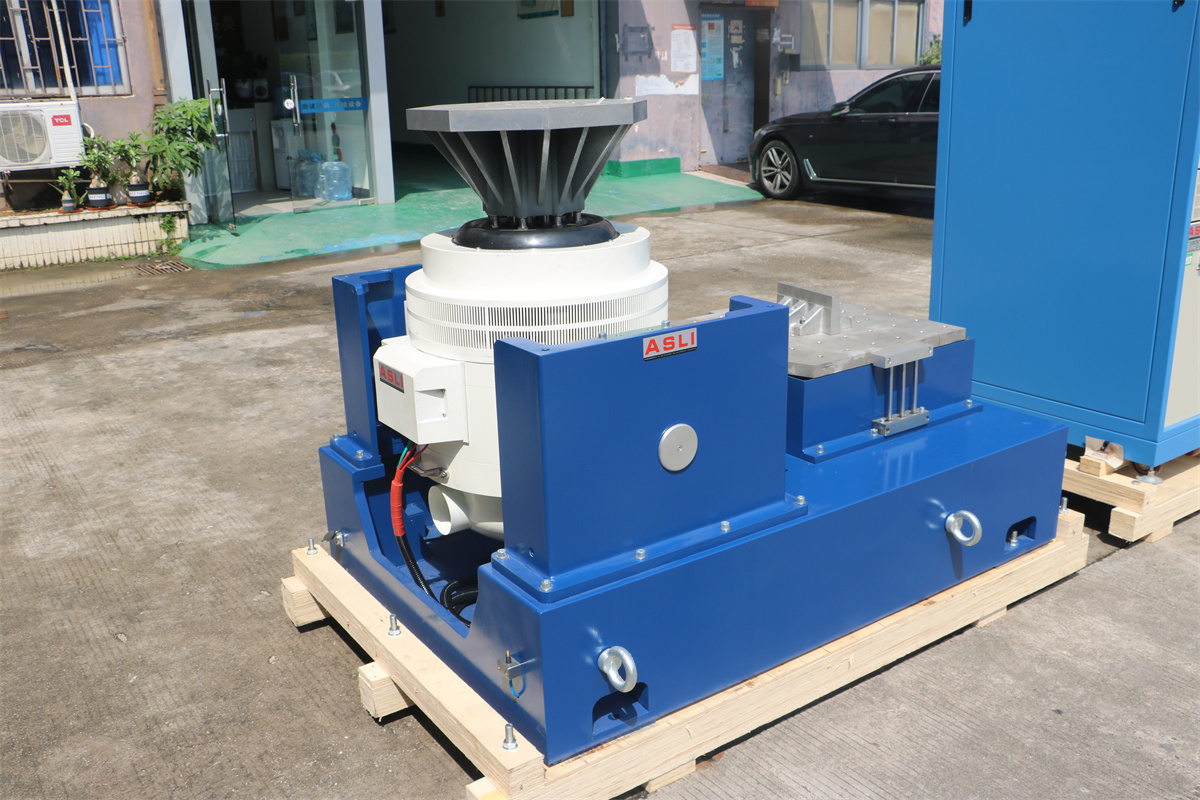

Horizontal stand for dynamic shaker with V-shape static pressure trackClose-up view of horizontal vibration test platform and guide system
Packing & Delivery
Export plywood case packaging for vibration shaker tester with foam protection

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.

Company Profile
Manufacturing facility for environmental testing equipmentProduction workshop for vibration and shock testing machinesAssembly line for dynamic shaker testersQuality control inspection of vibration testing equipmentCE certification for horizontal and vertical vibration 3-axis high frequency vibration testerCompleted vibration shaker system ready for shipment

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration tester is a star product, and we have obtained CE certification for this machine.

Frequently Asked Questions
Q1. What are your terms of packing?

A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF, DDU, DAP, DDP.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the Electrodynamics Shaker Tester Dynamic Shaker, please feel free to contact us.

Product Highlights

Electrodynamics Shaker Tester delivers 20KN vertical vibration, 100g acceleration, 3~3500Hz, computer control, IP55, ISTA 3A compliant. Flexible suspension, airbag damping, OEM/ODM, 1-year warranty. Ideal for packaged product, aerospace, electronics lab testing.
