Mechanical Shock and Impact Testing Machine

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Power: 20KW Frequency Range: 3~3500hz
Accuracy: +/-1% Protection Class: IP55
Voltage: 380 V Moving Coil Weight: 6.5kg
Rated Speed: 1.8m/s Vibration Direction: 3 Axis
Vibration Force: 6000N Acceleration: 100g
Rated Sine Force: 6000N Rated Random Force: 6000N
Rated Acceleration: 1000m/s2 Rated Displacement: 25mm
Max. Loading: 180Kg
Highlight

Mechanical Shock Testing Machine

,

Impact Testing Machine with warranty

,

Vibration Shaker System for testing

Product Description

Product Overview

Test Standards: ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, and more.

The Mechanical Shock and Impact Testing Machine is designed for early fault detection, simulation of actual working conditions, and structural strength testing. Its broad application range delivers remarkable and reliable test results. It supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control functions, with full computer control and simple fixed acceleration/fixed amplitude operation. The equipment has undergone continuous failure-free testing for 3 months, demonstrating stable performance and reliable quality.

Key Features
  • Large loading capacity with a maximum displacement of 51 mm peak-to-peak and low working frequency (2 Hz).
  • Meets the requirements of the sinusoidal vibration test method (fixed frequency or swept frequency) for basic international transport package testing.
  • The table body is guided by hydraulic wheels and linear bearings with low axial rigidity.
  • Air spring support provides large load capacity, excellent low-frequency characteristics, and high stability.

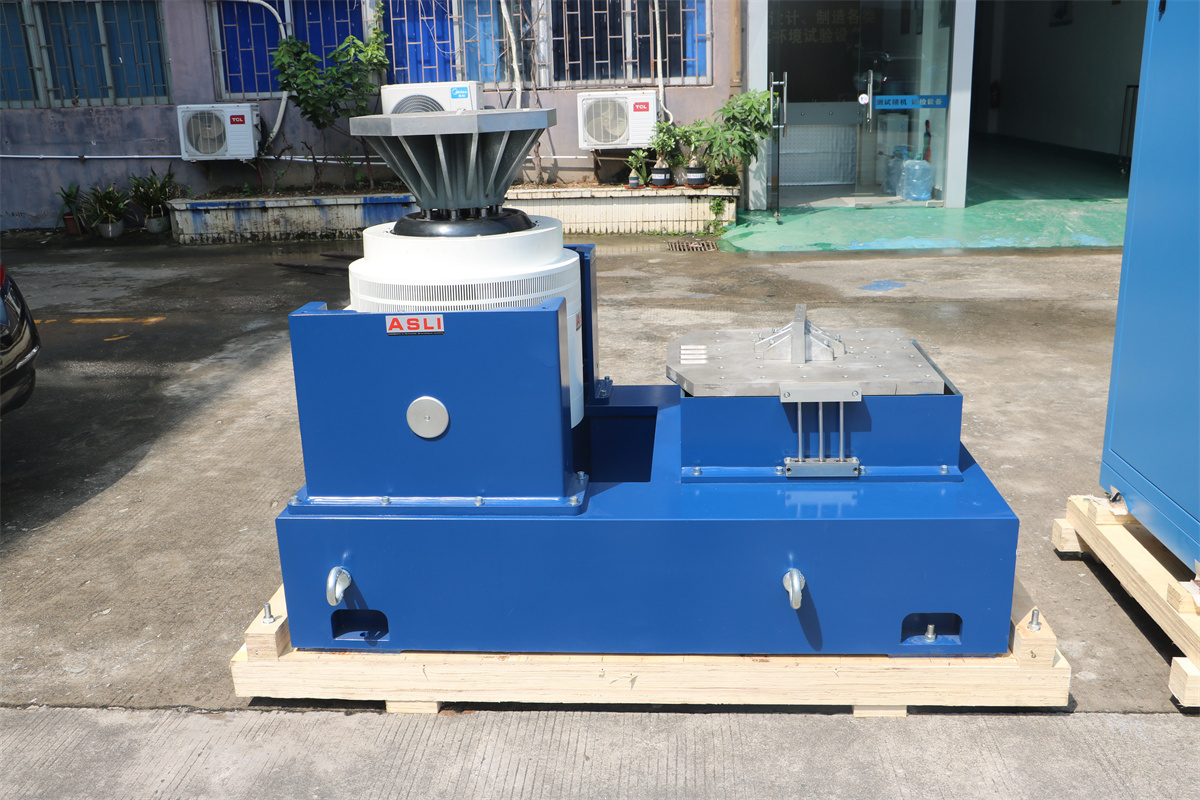

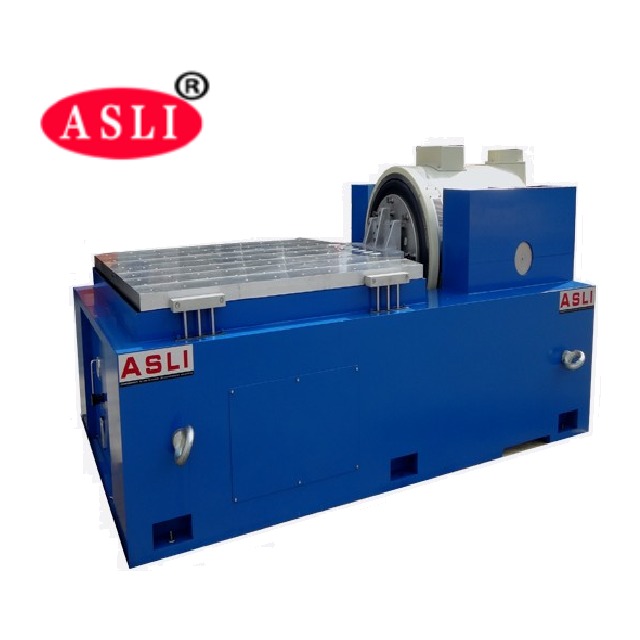

Mechanical Shock and Impact Testing Machine main unit with vibration shaker table
Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ 230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3–2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3–2500 1000 1.8 51 1000 90 Φ450
Additional Features
  • The machine base is made of high-quality materials, ensuring easy installation and smooth operation.
  • Multiple functions including frequency modulation, frequency sweeping, programmable amplitude modulation, and time control.
  • Strong anti-magnetic and anti-interference capability with safe and reliable protection.
  • Computer connecting line control with immediate material storage.
  • Low resistance and high-performance design for high efficiency and low cost.
  • High reliability with low fault rate.
  • Best after-sales service: One year free parts maintenance.
  • Customization is available and welcomed.

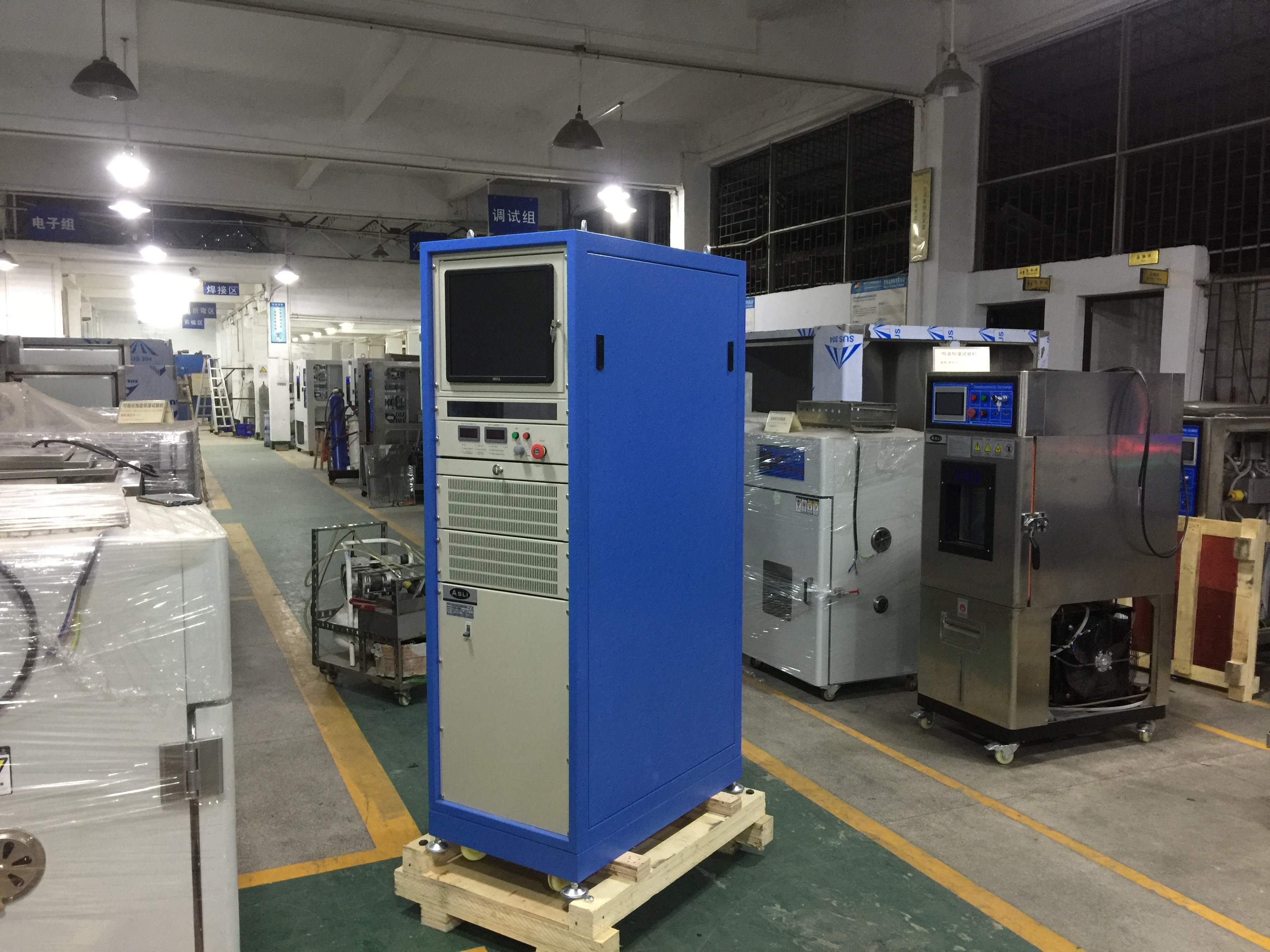

Close-up view of the vibration shaker control system and interface Detailed view of the mechanical shock testing machine components
Packing & Delivery
Professional packaging of the mechanical shock testing machine for safe delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile

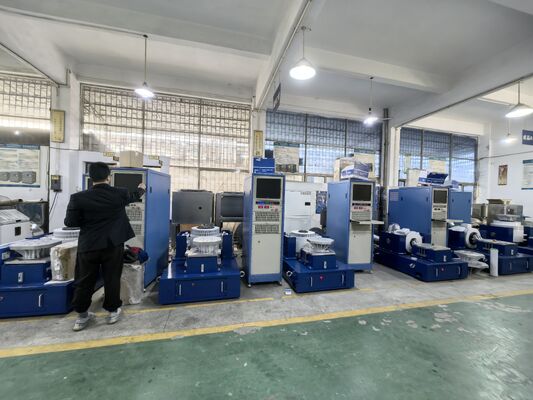

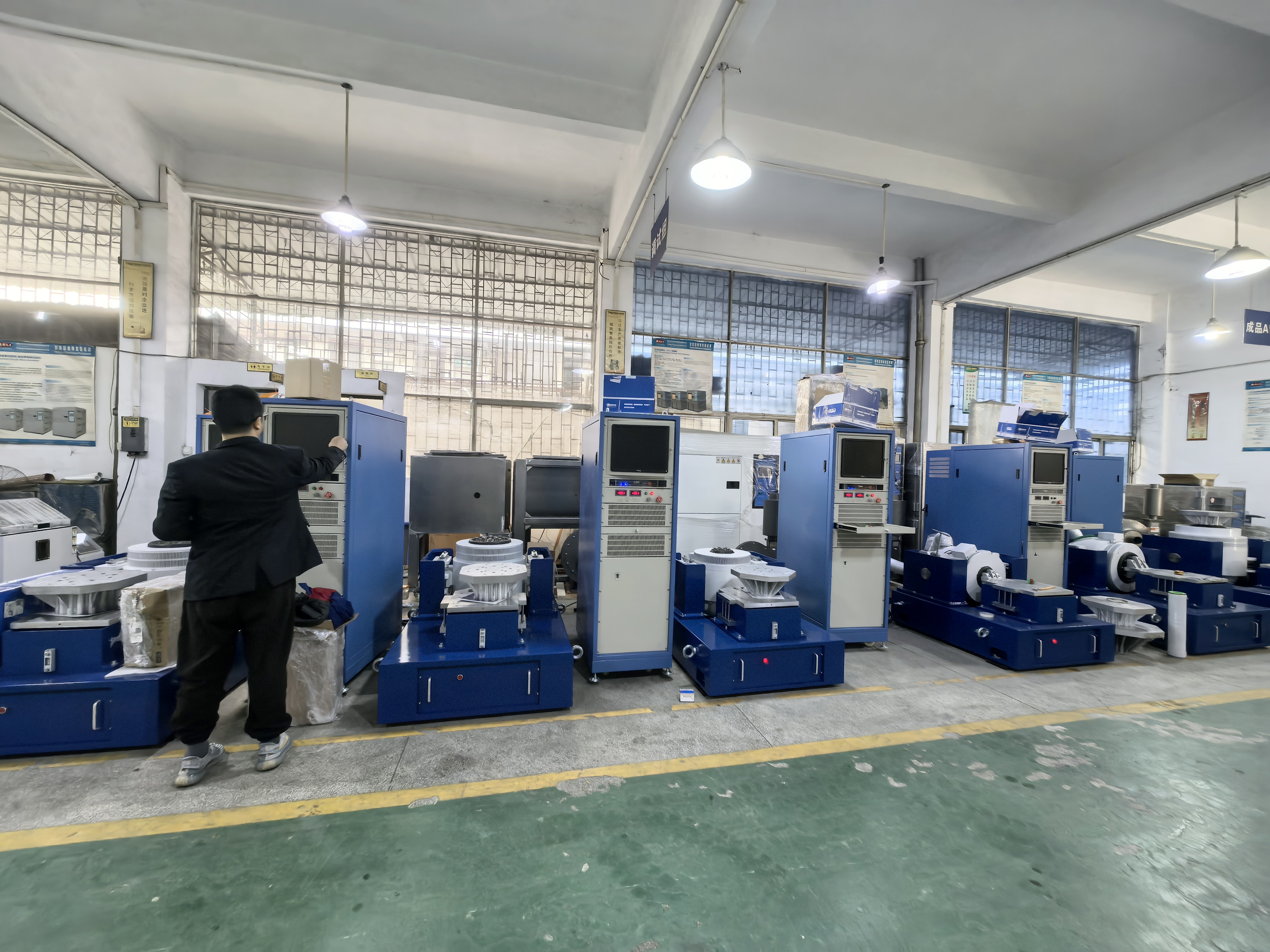

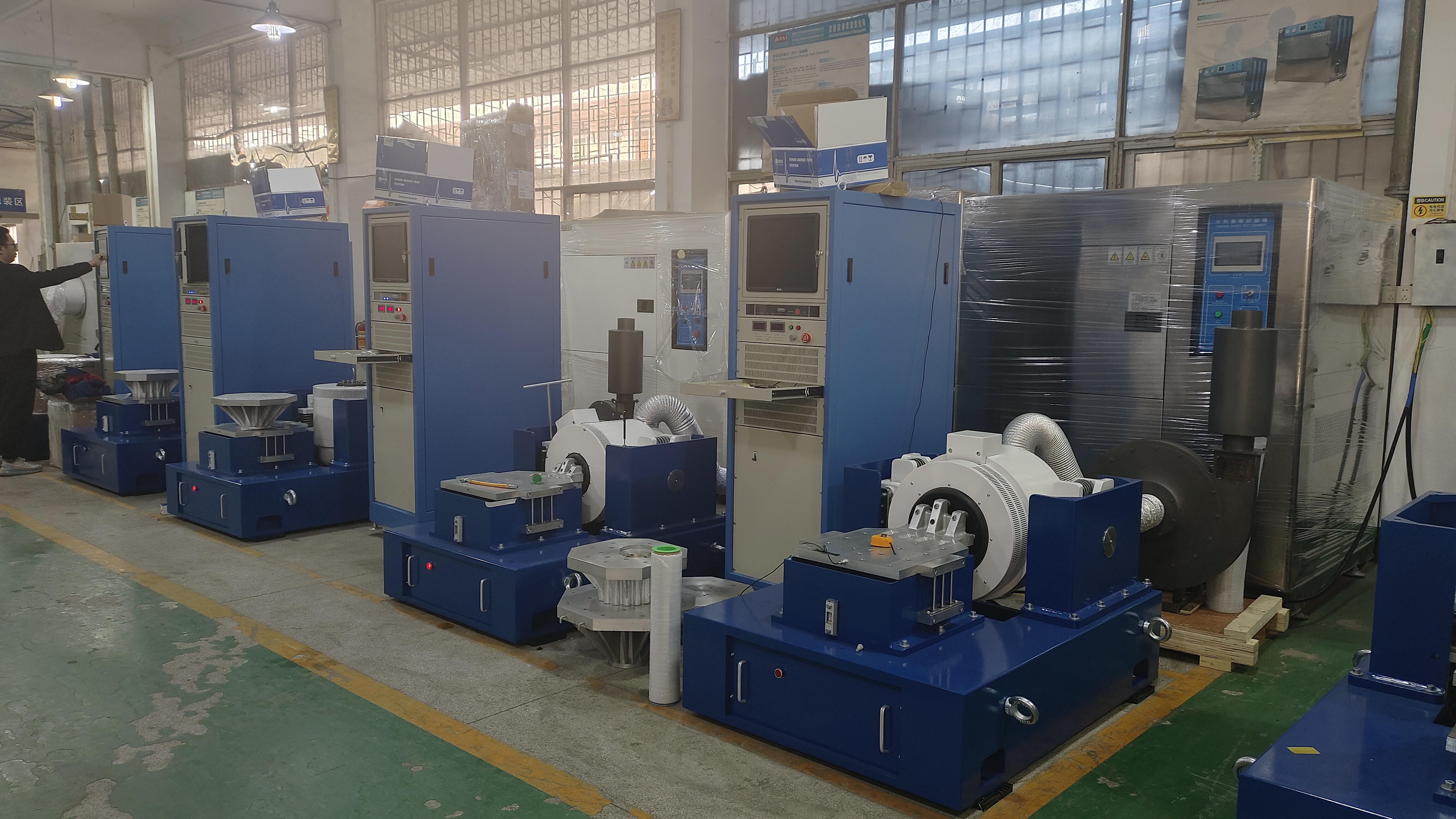

ASLi (China) Test Equipment Co., Ltd facility and team

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

Frequently Asked Questions
Q1: Are you a trading company or a factory?

A: Factory + trade (integration). We have our own factory.

Q2: Do you accept customization service?

A: Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.

Q3: What is your product warranty?

A: 1 Year warranty, but lifetime for services.

Q4: How about the product quality?

A: Our products apply to ISO, ASTM, GB, MIL-STD, etc.

If you need more information about the Mechanical Shock and Impact Testing Machine, please don't hesitate to send your inquiry.

Product Highlights

Mechanical Shock and Impact Testing Machine with 6000N force, 3-3500Hz, 100g acceleration, 3-axis vibration, and ±1% accuracy. Complies with MIL-STD, IEC 60068, and ISTA standards. Features IP55 protection, 20KW power, and OEM/ODM customization. Backed by a 1-year warranty.
