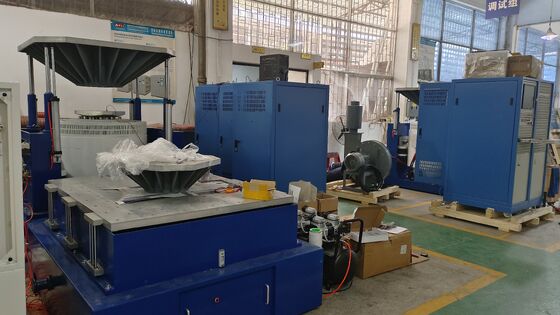

Elector-magnetic Vibration Test Equipment
Product Details
| Moving Coil Weight: | 30kg | Vibration Direction: | Vertical Vibration |
|---|---|---|---|
| Power: | 17kw | Frequency: | 3~3500hz |
| Control Method: | Computer Control | Acceleration: | 100g |
| Protection Class: | IP55 | Voltage: | 380 V |
| Vibration Force: | 20KN | Accuracy: | +/-10% |
| Rated Sine Force: | 10000N | Frequency Range: | 3-3000Hz |
| Rated Acceleration: | 1000m/s2 | Rated Speed: | 1.8m/s |
| Max. Loading: | 270Kg | ||
| Highlight |
electromagnetic vibration test equipment,vibration shaker system with warranty,electromagnetic vibration testing machine |
||
Product Description
The Electromagnetic Vibration Test Equipment is primarily designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves the testing needs of products across aerospace, communications, electronics, electrical, home appliances, and other industries. As a versatile test platform, it complies with a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, providing strong bearing capacity and outstanding dynamic performance.
- Rapid self-diagnosis and chain protection ensure high safety and reliability.
- The airbag isolation and damping device eliminates the need for a special foundation, perfectly reproduces vibration waveforms, and reduces vibration transmission.

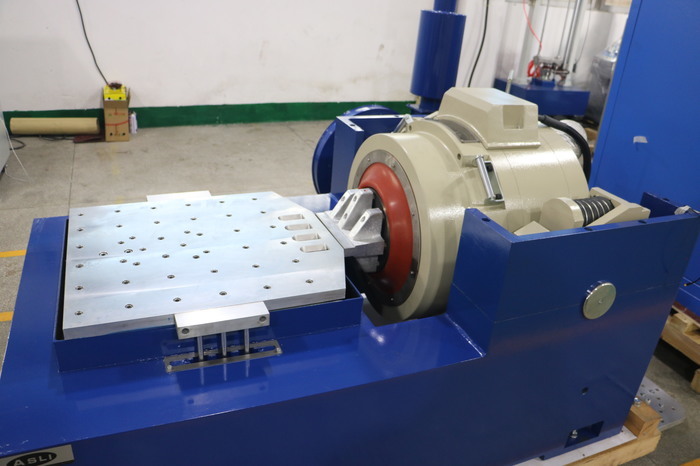

- Horizontal and vertical expansion platforms are available for different applications.
- Compatible with all types of vibration controllers for simple, straightforward operation.
- A small loading bench enables higher acceleration and working frequency, improving the loading capacity and overall performance of the complete machine bench.
- The horizontal bench and vibration bench are an integrated design with a robust structure, making installation and adjustment convenient.
- The static pressure track features a V-shape design with resistance to slope and bias loading.
- A built-in oil pump ensures a well-structured design and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high-frequency vibration tester is a star product, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DAP, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Electromagnetic Vibration Test Equipment, please feel free to contact us.
Product Highlights
Electromagnetic Vibration Test Equipment with 20KN force, 3-3500Hz, 100g acceleration, and 30kg moving coil. Features flexible suspension, airbag damping, IP55 protection, and ISTA 3A compliance. Supports OEM/ODM customization, computer control, and 1-year warranty.
