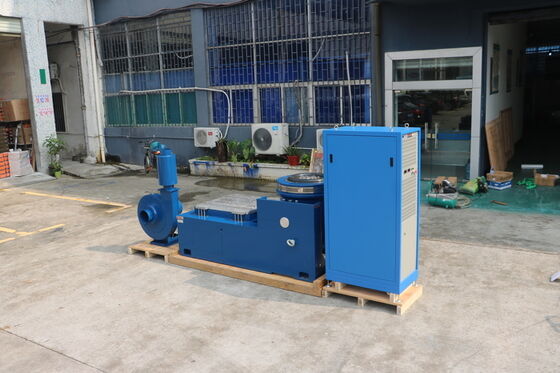

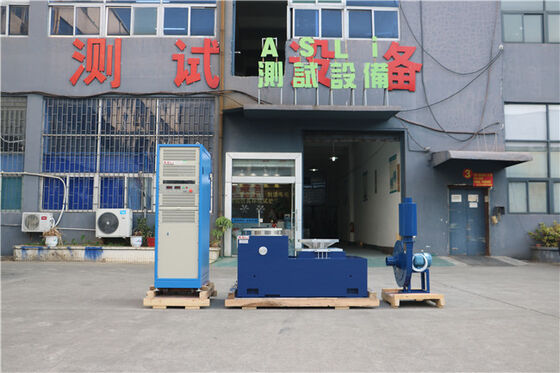

Mechanical Shaker Table Xyz Axis High Frequency Vibration Tester With Random Sine Mechanical Shock Test

1
MOQ
Mechanical Shaker Table Xyz Axis High Frequency Vibration Tester With Random Sine Mechanical Shock Test
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Speed: 2.0m/s
Rated Random Force: 20000N
Power Supply: AC380V
Voltage: 380 V
Max. Acceleration: 100g
Power: 20KW(26.82hp)
Accuracy: +/-10%
Vibration Direction: Vertical Vibration
Frequency: 3~3500HZ
Rated Sine Force: 20000N
Rated Displacement: 51mm
Control Method: PC
Protection Class: IP55
Vibration Method: Sine &Random Vibration
Type: Testing Machine
Highlight:

Mechanical shaker table XYZ axis

,

High frequency vibration tester

,

Random sine mechanical shock test
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: ASLI
Payment & Shipping Terms
Product Description
Mechanical Shaker Table XYZ Axis High Frequency Vibration Tester
Professional electrodynamic vibration testing system capable of performing sinusoidal vibration tests, broadband random vibration tests, classical pulse tests, and shock response spectrum tests in X, Y, Z three-axis configurations.
Advanced Technology Features
Our high frequency vibration test machines incorporate advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation systems.
Key Applications
Widely used in defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer electronics industries for comprehensive product testing and validation.

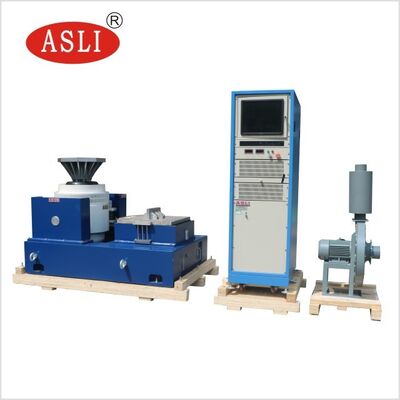

Electrodynamic Vibration Shaker System
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-1100010003-35004001.225702.5Φ150
ES-2200020003-35008001.625702.5Φ150
ES-2a200020003-35003001.640708Φ230
ES-3300030003-350010001.6251003.5Φ150
ES-3a300030003-35004001.6401209Φ230
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85145040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450
ES-1001000001000003-250010001.851100090Φ450
ES-1201200001200003-220010001.851110090Φ500
ES-1601600001600003-210010001.8511500150Φ600
ES-2002000002000003-200010001.8512500200Φ650
ES-3503500003500003-170010001.8514500300Φ87
High Frequency Vibration Tester Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation for convenient mobile installation
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • New duct design for enhanced cooling effect
  • High static stiffness and small dynamic stiffness balloon bearing, improving vibration table capacity and low-frequency performance
Expander Technical Parameters
Horizontal Expander Technical Parameters Vertical Expander Technical Parameters
Product Gallery

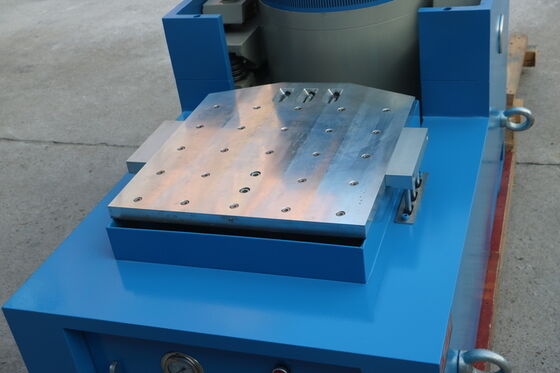

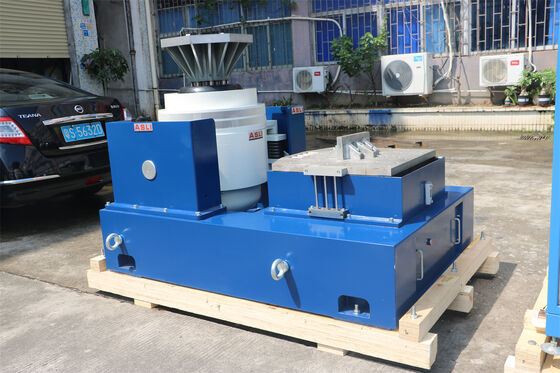

Mechanical Shaker Table Product View Vibration Testing System Components High Frequency Vibration Tester Detail
Quality Certifications & Packaging
Certifications
  • China Official 3rd Party Calibration Report
  • CE Certification
Packaging Process
  • PP film protective layer
  • Vacuum packaging
  • Additional PP film coating
  • 10mm thickness PU foam for collision protection
  • Reinforced plywood case
  • Standard ASLI case marking
Vibration Test Machine Packaging and Shipping
Customer Support & Services
  • High quality guarantee with 12-month warranty
  • Professional documentation with shipment
  • Custom packaging available with pre-shipment photos
  • 48-hour response time with solutions within 3 working days
  • Professional engineering after-service support
Company Advantages
  • Professional technology support team
  • Extensive experience with container loading at Chinese sea ports
  • Fast shipment via reputed shipping lines
  • Comprehensive after-shipment email support
  • 28 years of manufacturing expertise in testing equipment
Customer Visit to ASLI Company ASLI Company Exhibition Display
Quality Certifications
ASLI Quality Certification Testing Equipment Certification
Company Profile
ASLI is a established testing equipment manufacturer with 28 years of experience, specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our mechanical shaker tables are star products with CE certification.

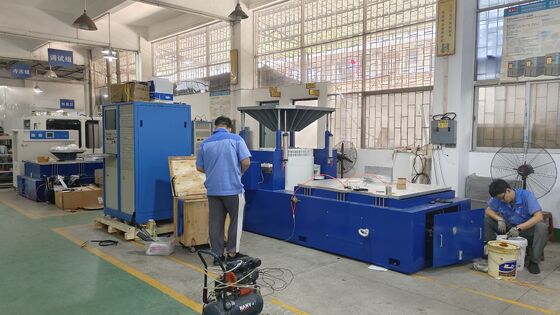

ASLI Manufacturing Facility
Main Product Lines
Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/Hast chambers (Highly Accelerated Stress Test), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, and environmental combined vibration chambers.
Frequently Asked Questions
Are you a trading company or factory?
We are a factory with 28 years of experience in test instruments and 4 years of exporting experience.
What is the delivery time after order placement?
Generally about 20 days. If we have finished products in stock, we can arrange shipment within 3 days. Production lead times depend on specific items and quantities.
What about warranty and after-sales services?
12 months warranty. After warranty period, our professional after-sale service team provides comprehensive technical support and helps customers solve problems encountered while using our products.
Related Products
Related Vibration Testing Products
Please feel free to contact us for any questions or requirements regarding our Mechanical Shaker Table XYZ Axis High Frequency Vibration Tester with Random Sine Mechanical Shock Test capabilities.
